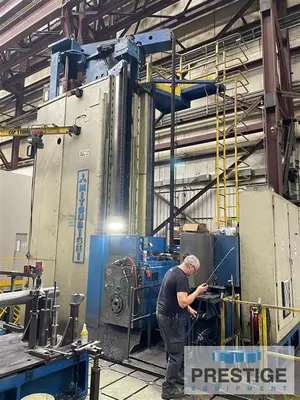

USED 1982 MITSUBISHI RAM TYPE MAF240

SPECIFICATIONS:
Spindle Diameter: 7.08"
Milling Spindle Diameter: 9.44"
Vertical Head Travel, Y: 157.48"
Horizontal Column Travel, X: 629.92"
Headstock Travel, Z: 47.24"
Boring Spindle Travel, W: 47.24"
Total Axial Travel: 94.48"
Spindle Taper: #50 ANSI
Milling Feeds: Inf.Variable: 0.04 IPM-142 IPM
Rapid Traverse: X & Y: 315 IPM
Rapid Traverse: Z, W & U: 197 IPM
Spindle Speeds: 3-Steps: 4-800 RPM
High Speed Shaft: 3-Steps: 11-2800 RPM

ROTARY TABLE:
Table Size: 98" x 98"
Weight Capacity: 44,000 Lbs
Longitudinal Table Travel: 66.9"
Diagonal (Corner To Corner): 132"
Overall Table Height: 41"
Rotation Speeds-Stepless Range: 0.0095-0.475 RPM
Feeding Speed-Stepless Range: 0.025-63 IPM
Rapid Traverse: 63 IPM
Scale Graduations: 0.5 Degree
Number Of T-Slots: 9
Distance Between T-Slot Centers: 10"
Size Of T-Slots (W x D): 1.75" x 2.25"

Equipped With:

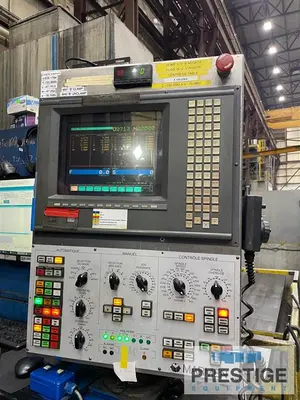

Fanuc 15M CNC Control (Retrofit 1997)
Various Right Angle Heads: Long Reach,
Short Reach, Universal, 4-Positon Right Angle
High Speed Head Attachment : 2400 RPM
1 Ton Jib Crane

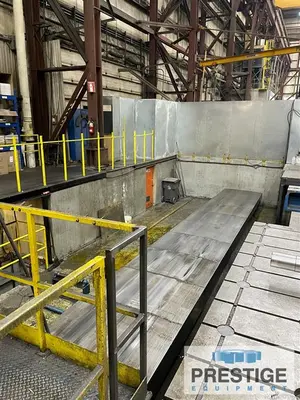

(4) 78" x 157" x 16" Thick T-Slotted Floor Plates

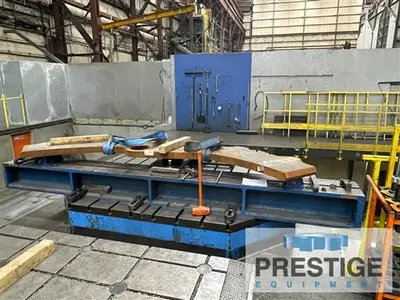

98" x 98" Mitsubishi Infeeding Rotary Table
Power Draw Bar
Way Covers On X & Y Axes
Hardened & Ground Ways
Chip Conveyor
75 HP Spindle Drive
Overall Height: 366.14"
Weight: 187,000 lbs

Features:
Fanuc 15M CNC Control (Retrofit 1997)
Various Right Angle Heads: Long Reach,
Short Reach, Universal, 4-Positon Right Angle
High Speed Head Attachment : 2400 RPM
1 Ton Jib Crane
(4) 78" x 157" x 16" Thick T-Slotted Floor Plates
98" x 98" Mitsubishi Infeeding Rotary Table
Power Draw Bar
Way Covers On X & Y Axes
Hardened & Ground Ways
Chip Conveyor
75 HP Spindle Drive
