Capacity: 220 Ton (200 tf)

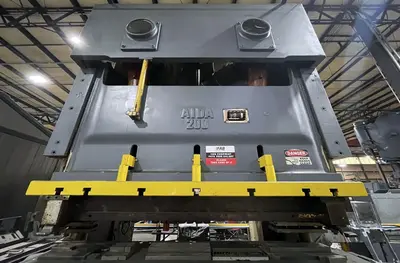

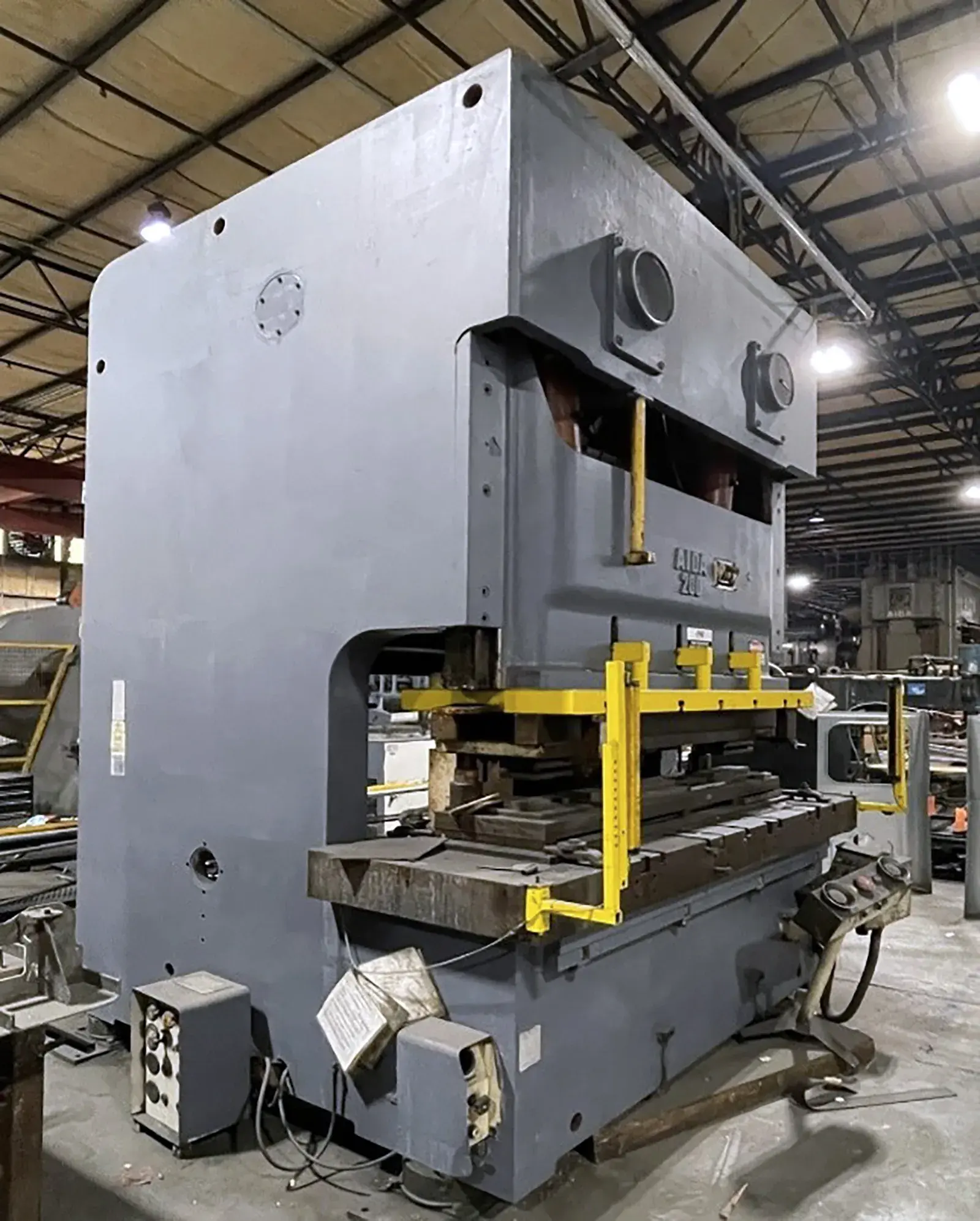

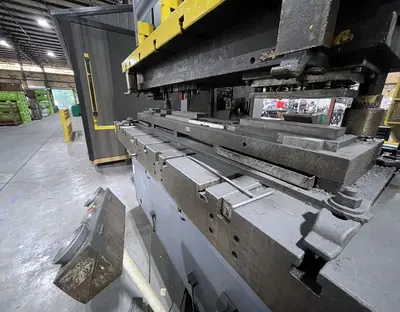

The Aida NC2-200 (1987) 200-Ton Two Point Mechanical Gap Frame Stamping Press is built for heavy-duty sheet metal fabrication. Designed to handle wide workpieces and off-center loads, it is ideal for automotive, electronics, and industrial manufacturing. This versatile press performs blanking, punching, forming, and bending operations with reliable power, precision, and consistent production performance.
Pressing Capacity: 220 tons (200 tf)
Stroke Length: 9.84 in (250 mm)
No-Load Continuous Stroke Count: 25–45 spm
Die Height: 19.69 in (500 mm)
Slide Adjustment Range: 4.33 in (110 mm)
Main Motor Power: 29.5 HP (22 kW)
Supply Air Pressure: 71.4 psi (5 kgf/cm²)
Two Hand Control Light Curtain Safety System Photoelectric Sensors Overrun detection at 12° ±3 Emergency Stop Response Time – 200 ms
