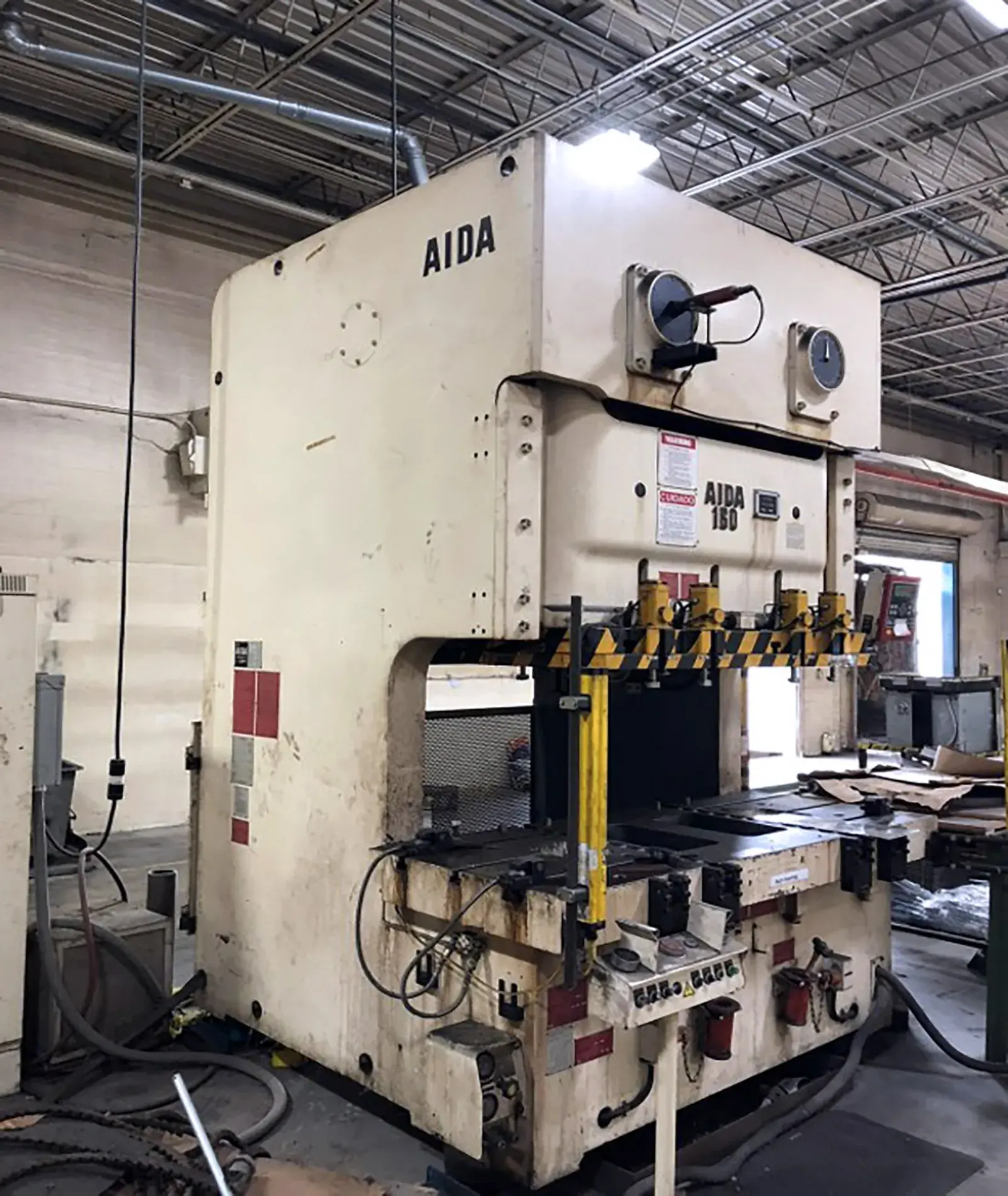

USED AIDA NC2-160 (2)
Overview
The AIDA NC2-160 176-Ton Straight Side Stamping Press is engineered for high-precision, high-volume metal forming. Ideal for automotive, electronics, and appliance manufacturing, it efficiently performs blanking, piercing, deep drawing, progressive die stamping, embossing, and coining. Its rigid straight-side frame delivers excellent stability, accuracy, and consistent performance for demanding sheet metal production.
Specs
Capacity: 176 Tons (160 tf)
Blanking Capacity: 141 Tons (127 tf)
Slide Stroke: 7.87 inches
Strokes per Minute (No Load): 30-55 spm
Die Height: 19.68 inches
Slide Adjustment: 1.18 inches
Slide Area (L.xF.xB): 59.0 × 25.2 inches
Bolster Area (L.xF.xB): 80.3 × 33.0 inches
Main Motor: 20 hp
Required Air Pressure: 71 psi
Equipped With

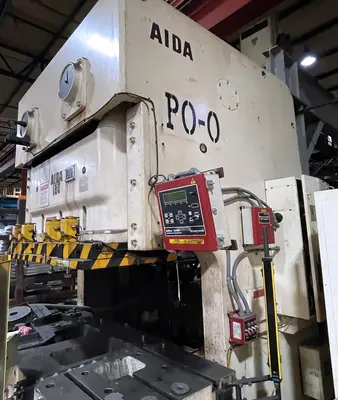

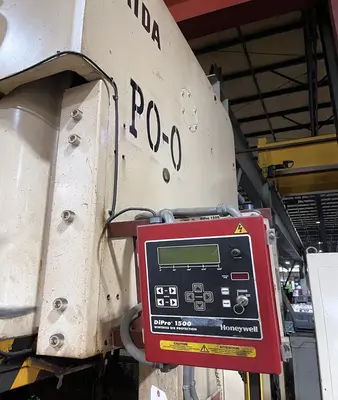

Wintriss DiPro® 1500 Die Protection System
Wintriss DRW-1000 Digital Monitoring Panel

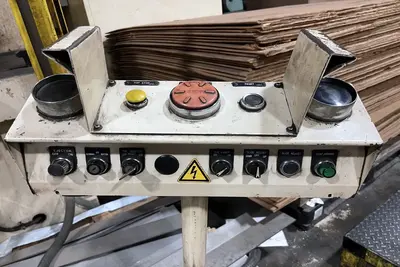

Light Curtain Safety System Two Hand Control

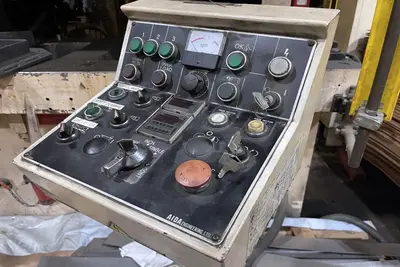

Slide Adjust Control Panel
