USED 1990 TARNOW TUJ-50M

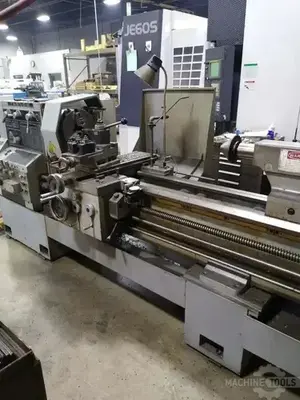

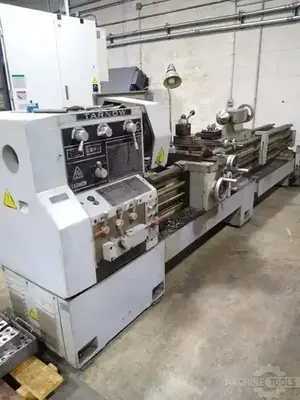

Tarnow TUJ-50M 22" x 120" Gap Bed Engine Lathe

General Info

Stock #: 163260005
Location: IL
Brand: Tarnow
Model: TUJ-50M
Year: 1990
Approx. Shipping Weight: 8,500 lbs
Approx. Shipping Dimensions: 16' L x 5' W x 5' H
Loading Fee: Free Loading

Specifications

Swing Over Bed: 22"
Swing Over Gap: 31.5"
Swing Over Carriage: 14.5"
Distance Between Centers: 120"
18 Spindle Speeds: 20-1,600 RPM
Motor HP: 15 HP
Spindle Bore: 3.5 " (D1-11 Camlock)
Headstock Length Bearing on Bed: 27"
Width of Headstock (depth): 23"
Cross Slide Travel: 13"
Top Slide Travel: 8"
98 Feeds- Longitudinal Range: .0007-.72 IPR
98 Feeds- Cross Range: .0004-.36 IPR
60 Metric Threads - Range: .5-112mm/rev
70 Inch Threads - Range: 1/4-56 TPI
Quill Diameter: 3-1/8" (MT5)
Quill Travel: 5"

Equipped With
Inch/ Metric Threading, 3-Jaw Chuck, Compound Cross Slide, Tool Post, Steady Rest, Splash Guard

Additional Info
This lathe can be inspected under power upon request.
