USED STANZA STM

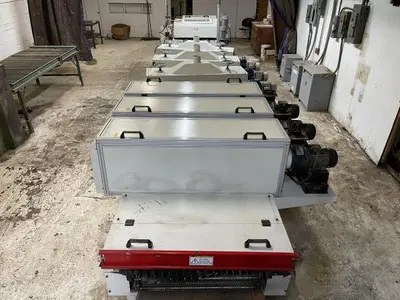

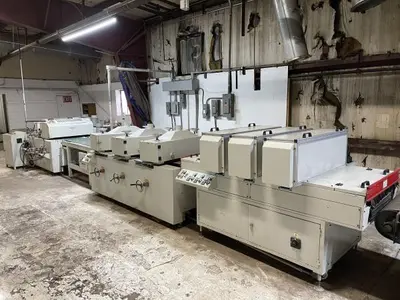

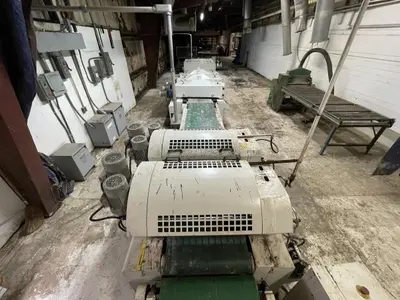

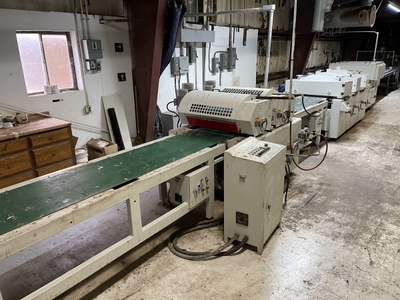

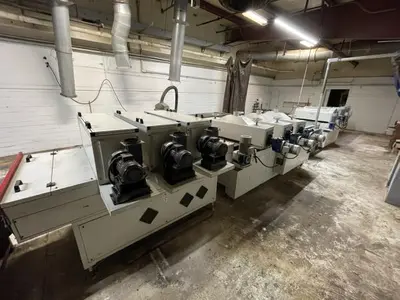

Model STM UV Finishing line 24" roll coat, wipers, UV Oven

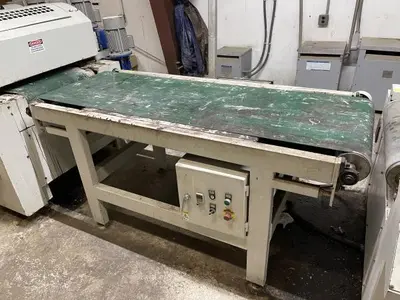

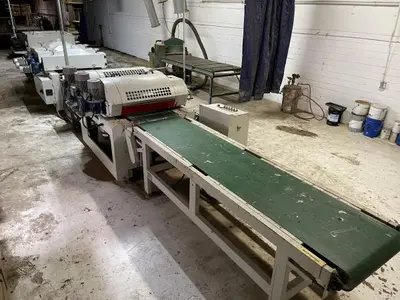

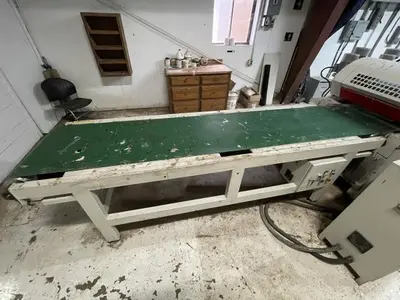

Model CV3 belt conveyor 24" wide x 10' long with 1/2HP motor

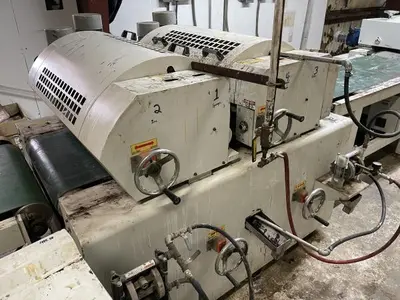

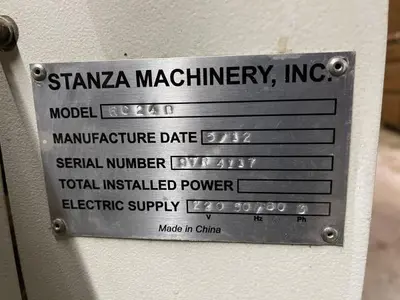

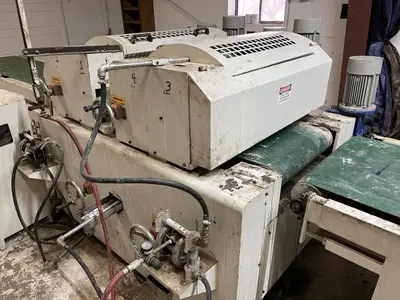

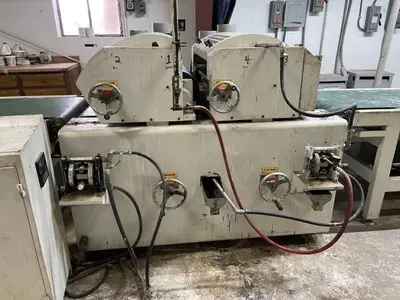

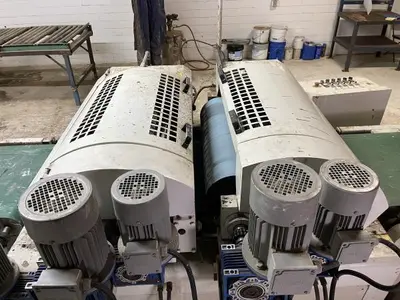

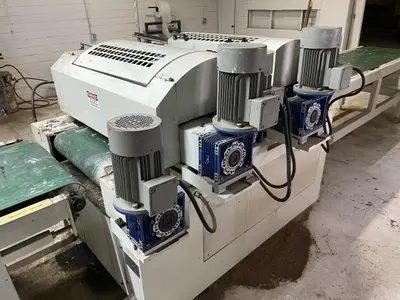

Mode RC 24-B roll coater
Work Maximum work piece dimension 24" w x 3" thick
Feed speed 10-40 fpm with 1HP inverter controlled motor

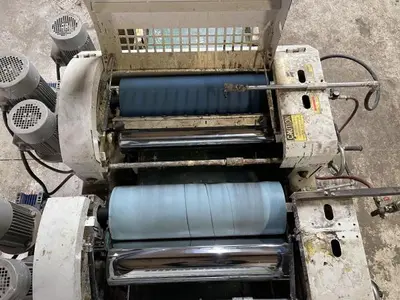

Application Roller #1 - Rubber coated UV/chemical resistant, 9 degree
Application Roller #2 - Rubber coated UV/chemical resistant, 25 degree
Chrome plated doctor rolls with scraper
Roller drive motors 1HP inverter controlled
Two Graco double diaphragm pumps UV capable

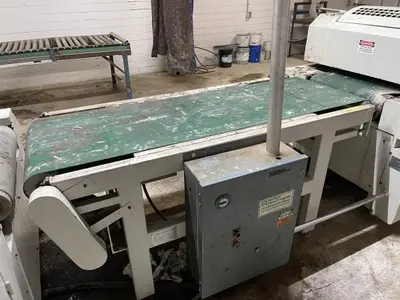

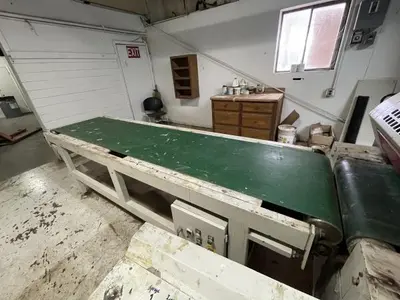

Model CV2 belt conveyor 24" wide x 6' long with 1/2HP motor

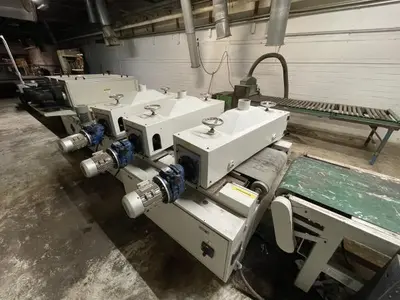

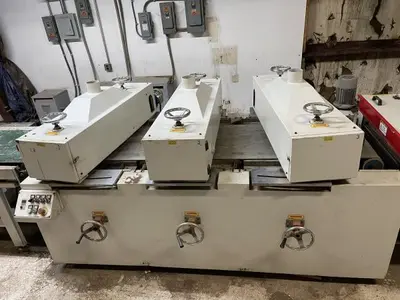

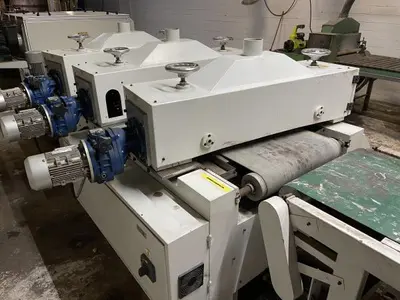

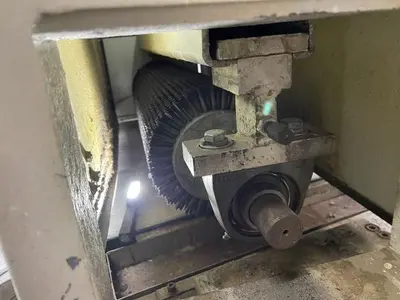

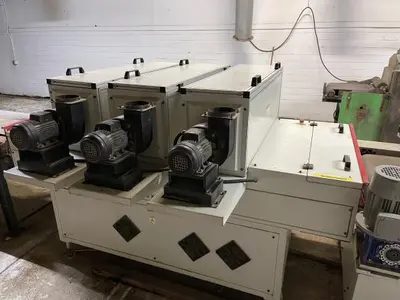

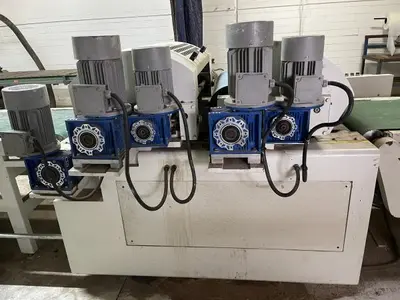

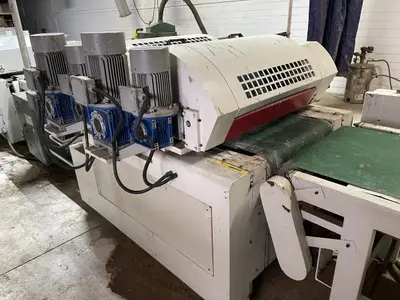

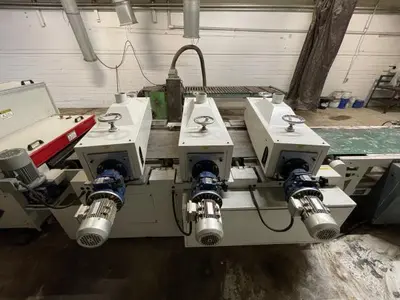

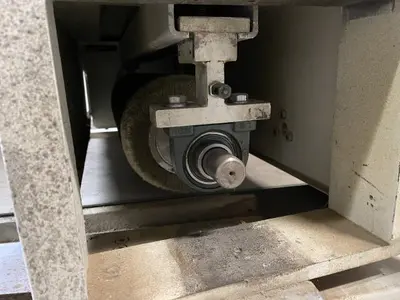

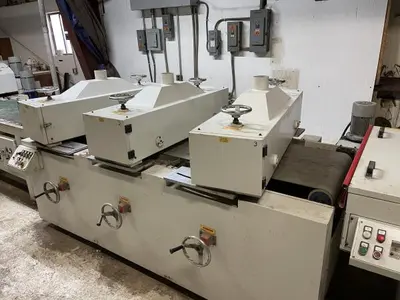

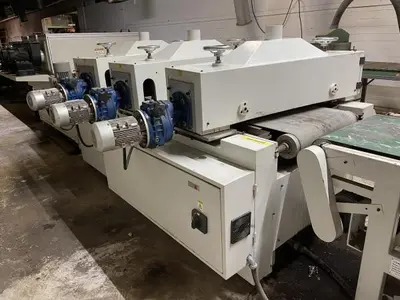

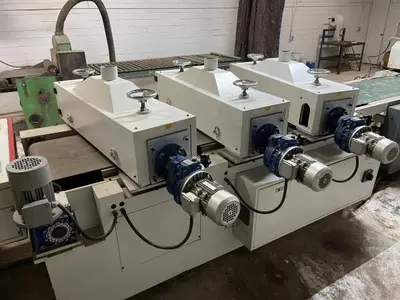

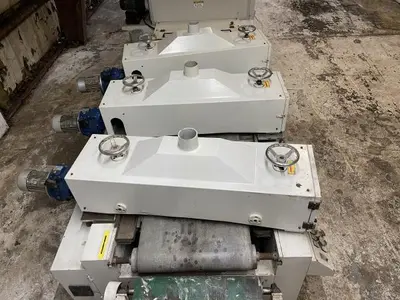

Model BS 24/3 Three Head Stain Wiper 24" width capacity
Feed speeds 10-40 fpm with 1.5HP motor inverter controlled

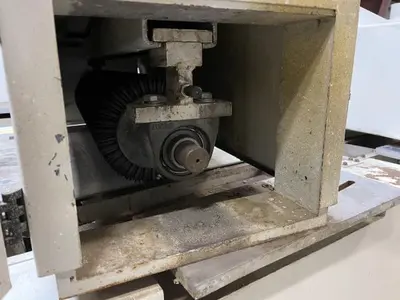

Brush head speed - variable to 1000 RPM
Brush head motors 1HP each

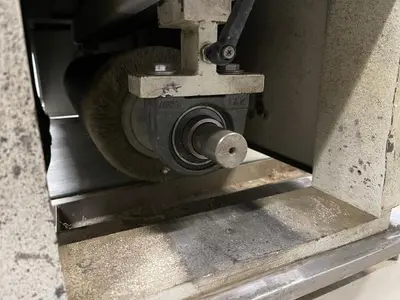

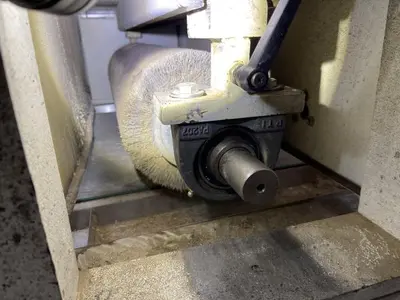

Brush mounts are quick change type
Head adjustment is hand wheel with relative readout

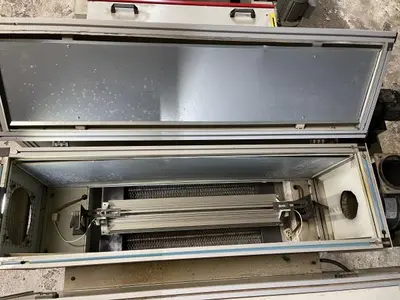

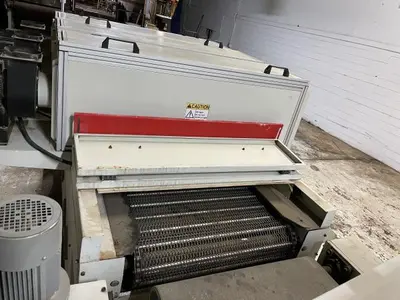

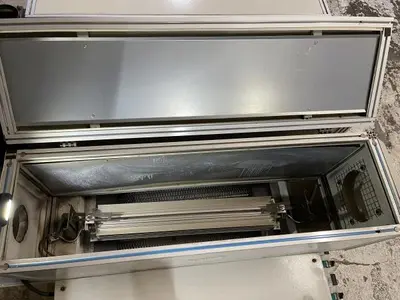

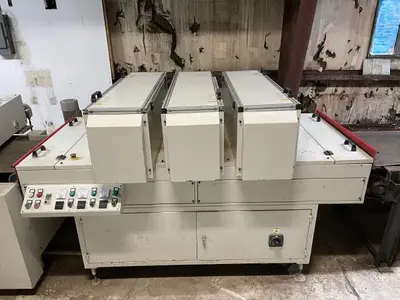

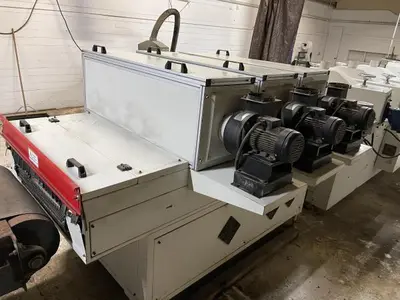

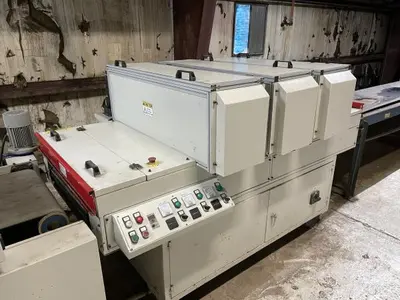

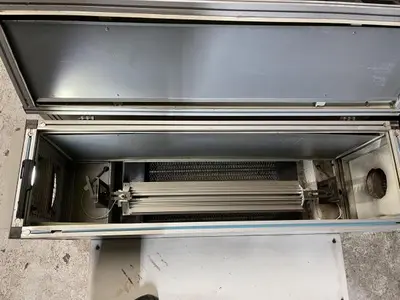

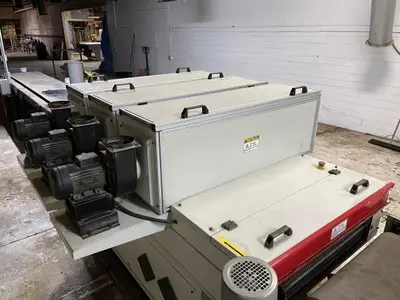

Model RUV24/3 UV Cure Oven 24" wide x 3" thick capacity
Feed speed 10-40 fpm with 1/2HP motor inverter controlled

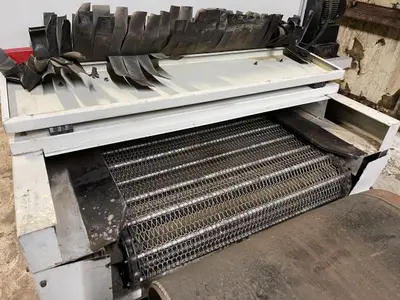

Feed belt is metal lattice
Exhaust fan motor 3/4HP
UV lamps (3 sets) 300 watt/inch
UV lamp control - 2 stage power adjustment with amp meters
Four (4) position lamp height adjustment
UV cabin temperature control - Heat probe with monitor and overtemp hazard signal

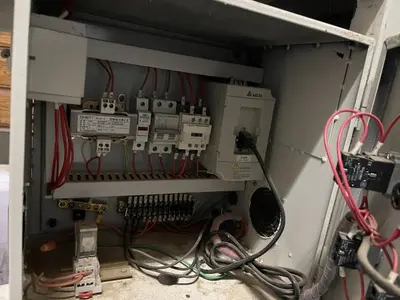

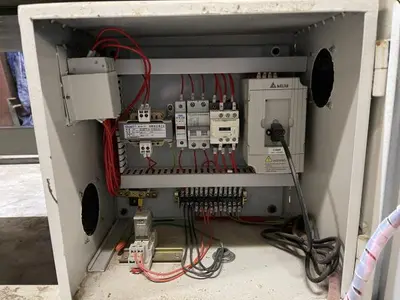

230v, 3ph
New in 2012
