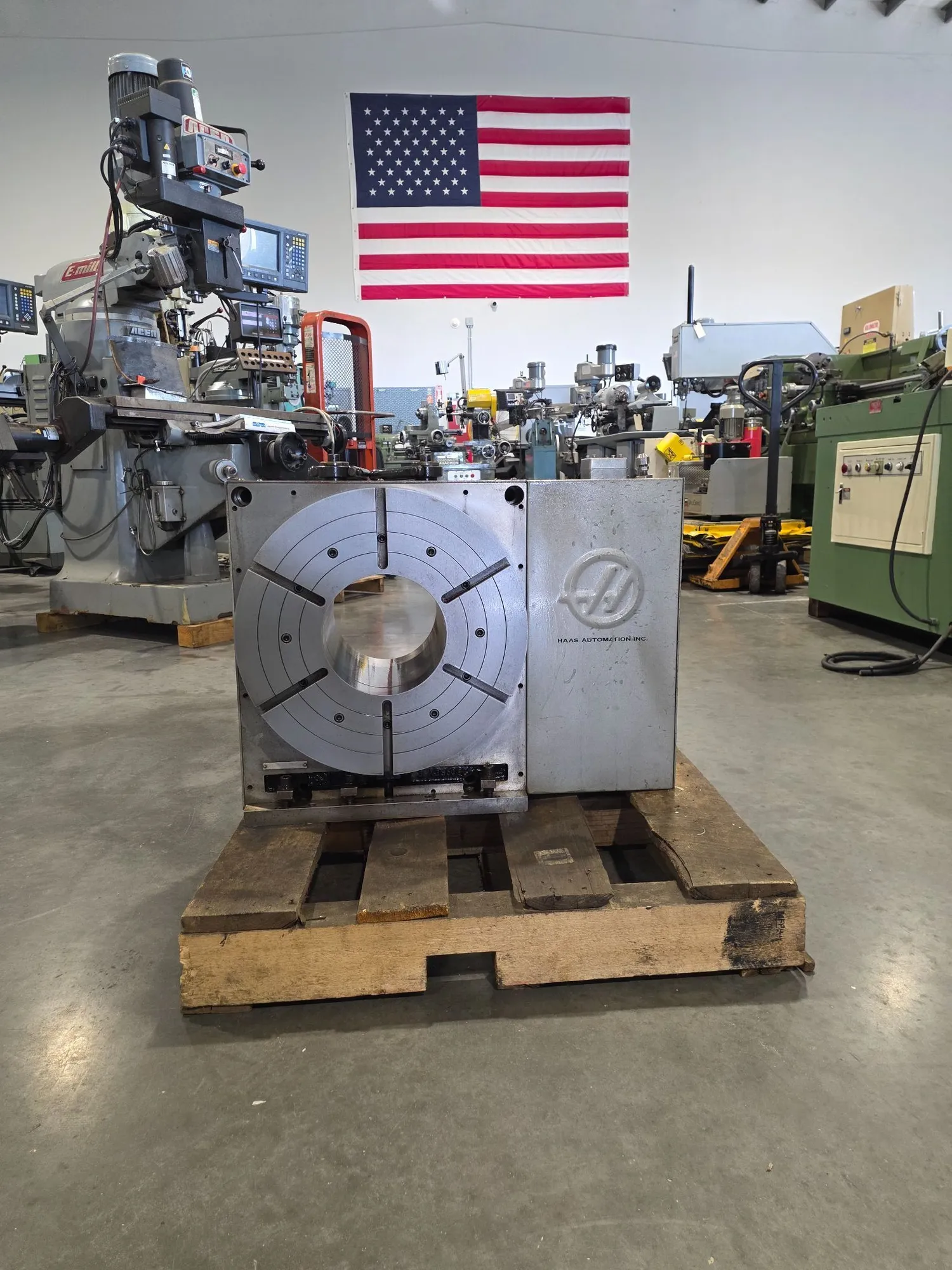

USED HAAS HRT450

HAAS HRT-450 17.7” CNC Rotary Table 4th Axis Type 7-3/8" Bore USA #8187

HAAS HRT-450 17.7” CNC Rotary Table 4th Axis Type 7-3/8" Bore USA #8187
Reference #8187
Model # HRT-450
Serial # 450709
Table diameter- 17.70”
Max weight on platter supported- 850 Lbs.
Max weight on platter unsupported- 425 Lbs.
Max spindle speed- 50° /sec
Torque- 400 Ft-Lbf
Runout max- 0.0015"
Center height- 11.5"
Backlash- 30 arc/sec
Brake torque @ 100 P.S.I.- 1350Fl-Lbf
Gear ratio- 72:1
Timing- 3:1
Accuracy- +/- 15 arc-sec
Repeatability- 10 arc-sec
Resolution- 0.001°
Worm gear diameter- 13.5”
Max rotation / step- 999.999°
