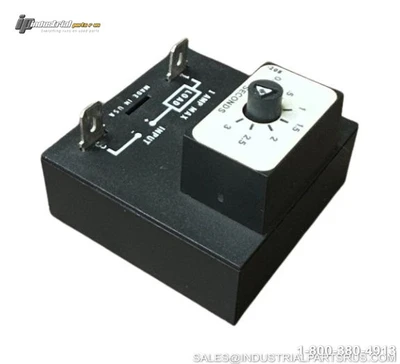

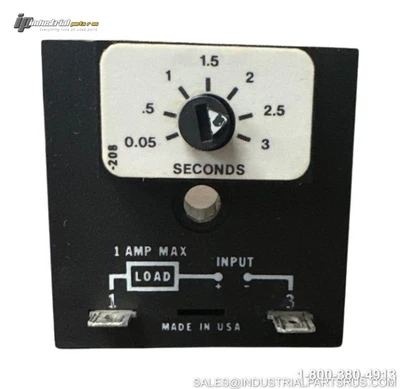

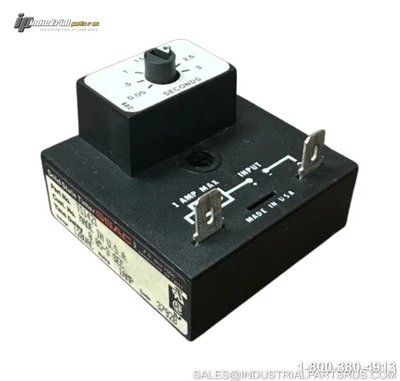

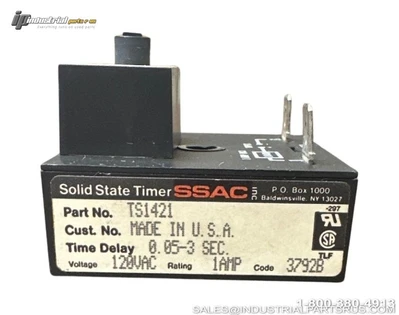

USED SSAC TS1421

The Ssac TS1421 is a solid-state timing module from the TS1 Series Versa-Timer family that offers proven reliability and performance with years of use in OEM equipment and commercial applications. This encapsulated general use timing module is capable of controlling load currents ranging from 5mA to 1A. It may be connected in series with contactors, relays, valves, solenoids, small motors, and lamps. The TS1421 provides delay-on-make timing with a 120VAC input voltage, 0.05 to 3 second timing range, and 1 amp maximum load current with 10 amp maximum inrush current capability.
Specification
Value
Brand
Ssac
Model/Part Number
TS1421
Type
Time Delay Relay
Operation Mode
Delay-on-Make
Input Voltage
120VAC
Timing Range
0.05 to 3 seconds
Output Current Rating
1 amp maximum load
Maximum Inrush Current
10 amp
Output Type
Solid State - N/O
Load Current Range
5mA to 1A
Adjustment Type
External Adjustable
Size
2x2 inches
Mounting Type
Surface Mount
Series
TS1
Enclosure Type
Encapsulated
Repeat Accuracy
±2%
We warranty all items for 30 days from date of purchase.

SKU: AI0593
UPC: 679523686208
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Mounting Style: Surface Mount
Current Rating: 1A
Output Type: Solid State - N/O
Material: Encapsulated Plastic
Full Load Amps: 10A
Manufacturer: SSAC
Enclosure Type: Encapsulated
Part Number: TS1421
Series: TS1
Shelf: K-46
Model: TS1421
Coil Voltage: 120VAC
MPN: TS1421
Type: Time Delay Relay
