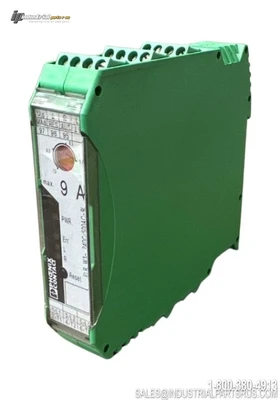

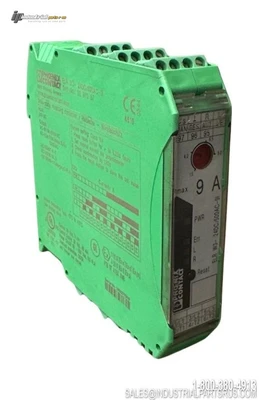

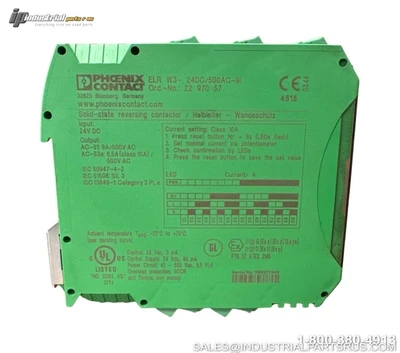

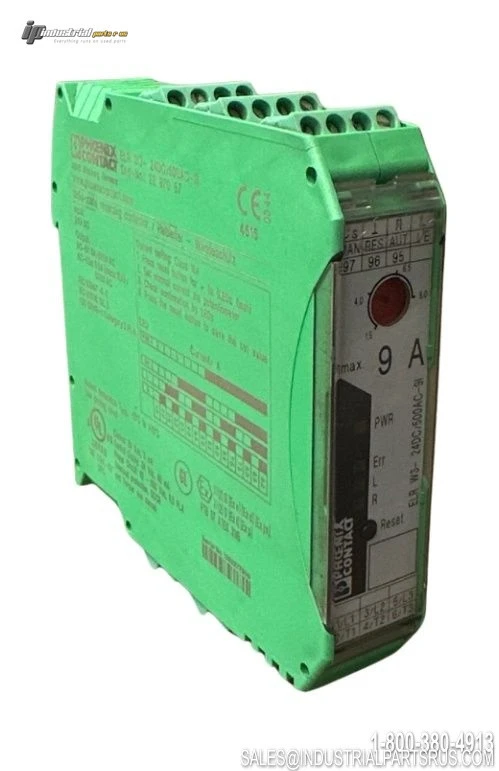

USED PHOENIX CONTACT ELR W3- 24DC/500AC-9I

The Phoenix Contact ELR W3-24DC/500AC-9I is a hybrid motor starter designed for reversing 3-phase AC motors up to 500V AC with 9A output current capability. This solid-state reversing contactor features 24V DC control voltage, adjustable overload shutdown protection, emergency stop function certified to SIL 3/PL e safety standards, and screw terminal connections for secure wiring.
Specification
Value
Brand
Phoenix Contact
Model/Part Number
ELR W3- 24DC/500AC-9I
Type
Hybrid Motor Starter
Phoenix Contact Order Number
2297057
Control Voltage
24 VDC
Output Current Rating
9 A
Maximum AC Voltage Rating
500 VAC
Application
3-Phase AC Motor Reversing
Termination Style
Screw Terminal
Mounting Type
DIN Rail
Housing Width
22.5 mm
Safety Features
Emergency Stop Function SIL 3/PL e
Protection
Adjustable Overload Shutdown
LED Indicators
Yes
Max Switching Frequency
2 Hz
Mains Frequency
40-100 Hz
We warranty all items for 30 days from date of purchase.

SKU: AI0610
UPC: 679523686208
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Full Load Amps: 40 mA
Manufacturer: Phoenix Contact
Part Number: ELR W3- 24DC/500AC-9I
Shelf: K-47
Model: ELR W3- 24DC/500AC-9I
MPN: ELR W3- 24DC/500AC-9I
Type: Hybrid Motor Starter
