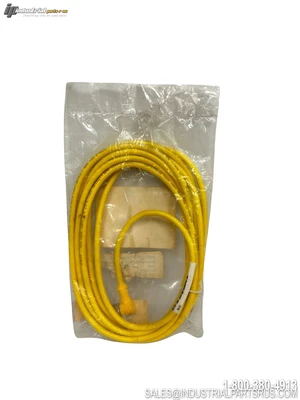

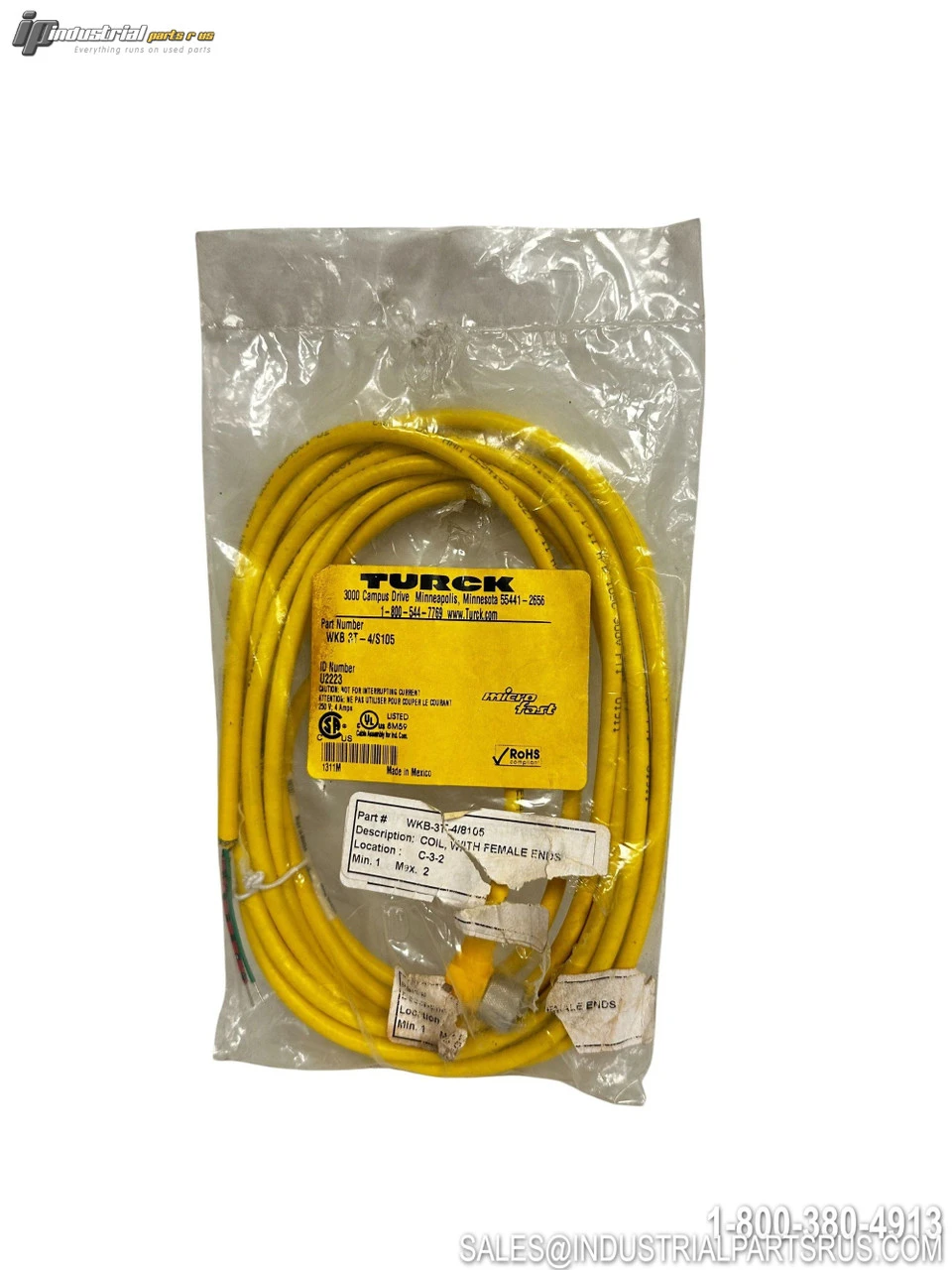

NEW TURCK WKB 3T-4/S105

The Turck WKB 3T-4/S105 is a single-ended Microfast cordset designed for industrial automation applications. This cordset features a right-angle female connector with 1/2-20 UNF threading and 4-meter cable length with braided mechanical shield for reliable connectivity in demanding environments.
Specification
Value
Brand
Turck
Model/Part Number
WKB 3T-4/S105
Manufacturer Part Number
U2223
Cable Length
4 meters (13 feet)
Number of Wires
3
Wire Gauge
#22 AWG
Connector Type
1/2-20 UNF Female (Right Angle)
Connection Type
Microfast T-Barb Fitting
Cable End
Bare End Flying Leads
Jacket Material
PVC
Shield Type
Braided Mechanical
Coupling Material
Nickel-Plated Brass
Rated Voltage
250 VAC
Rated Current
4 A
Color
Yellow
IP Rating
IP67/IP68/IP69K
NEMA Rating
NEMA 1/3/4/6P
Temperature Rating
+105°C
Cable Diameter
5.3mm
Configuration
Single-Ended
We warranty all items for 30 days from date of purchase.

SKU: AI0632
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Country/Region of Manufacture: United States
Full Load Amps: 4 A
Manufacturer: Turck
Enclosure Type: NEMA 1/3/4/6P
Part Number: WKB 3T-4/S105
Shelf: K-56 TUB 3
Model: WKB 3T-4/S105
MPN: WKB 3T-4/S105
Type: Cable
