| Swing | 33.25" | 844.55 mm |
| Machining Length | 81.67" | 2,074.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4.5" | 114.3 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 22.83" | 579.88 mm |
| Tailstock | Yes | Yes |

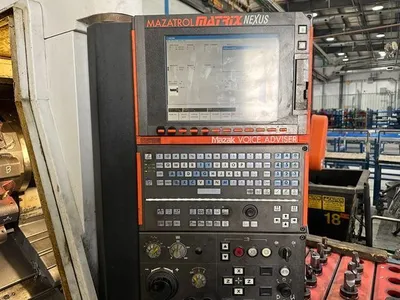

| Control | CNC | CNC |
| Dimensions | 198" x 90" x 80" | 198" x 90" x 80" |
| Weight | 24,700 lbs | 24,700 lbs |
Specifications (subject to buyer verification):

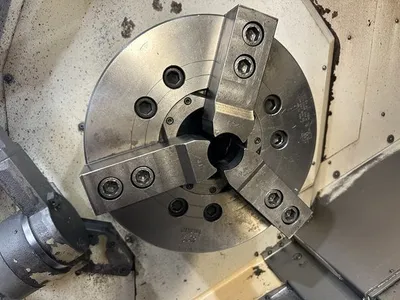

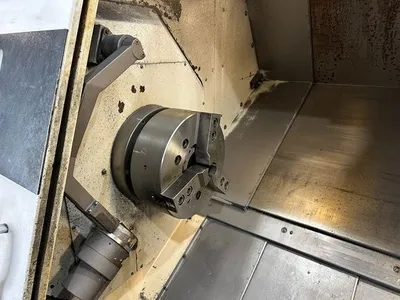

Chuck Size: 12" Big Bore Chuck
Maximum Swing: 33.26”
Maximum Machining Diameter: 22.83”
Maximum Turning Length: 81.67”
Distance Between Centers: 81.6”
Bar Capacity: 4.587”
X-Axis Travel: 13.38”
Z-Axis Travel: 82”
Spindle Nose: A2-11"
Spindle Bore: 5.2"
Spindle Speeds: 2,500 RPM
Spindle Motor: 40 HP
Spindle Torque: 1363 ft./lbs.

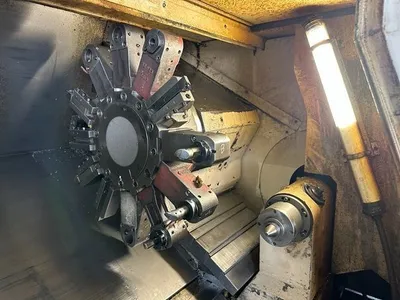

Turret Type Sides / Positions: 12 Sided/24 Stations
Rapid Traverse Rates: 1181 IPM
Tailstock Center: #5 MT
Tailstock Body Movement: 81.625”
Machine Dimensions: 198" x 90" x 80"
Machine Weight: 24,700 lbs.
