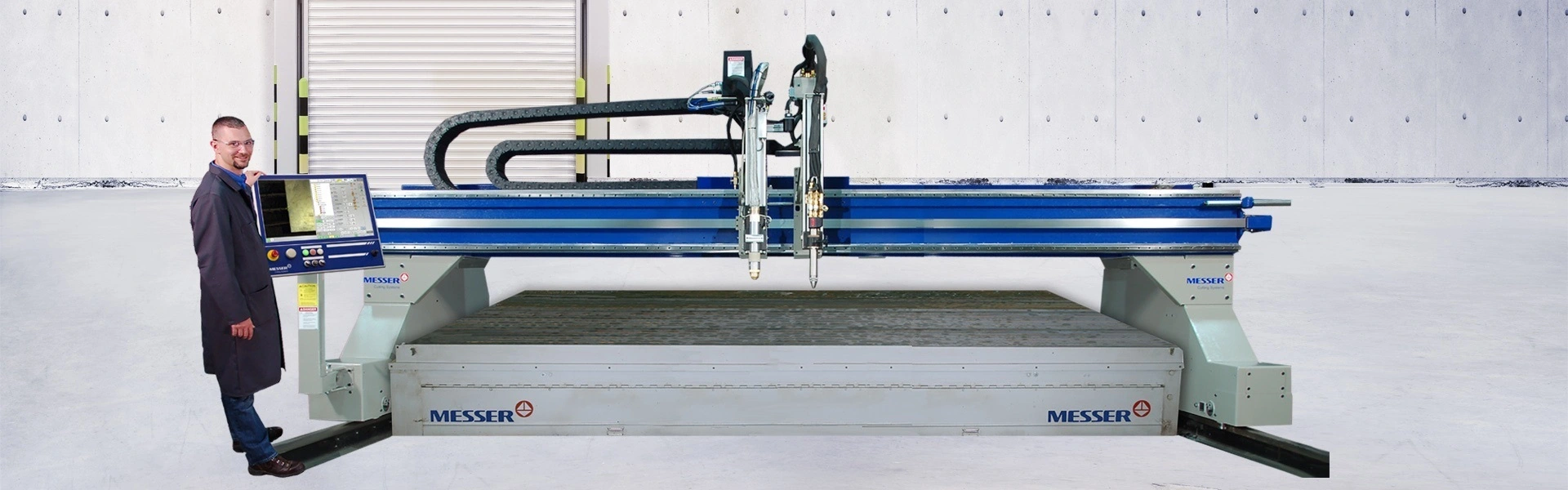

NEW MESSER TITAN III

The Titan III was designed for demanding environments. Utilizing an innovative end truck design, which houses and isolates the electronics away from the plate processing area, the Titan III can easily handle both heavy plate and around-the-clock operation.

The machine features linear ways in the Y-axis, pitch-line engaged rack and pinions, and our high productivity SL lifters for smooth, repeatable cutting or marking. Our industry-leading Global ControlPlus lets you cut faster with our easy-to-use touch screen interface utilizing the latest software.

WHY DOES MESSER CUTTING SYSTEM MANUFACTURE THE TITAN III PLASMA CUTTERS?

Through close partnership with our customers like you, the Titan III is the machine that you helped design. It is a mid-sized and industrial-grade workhorse supporting the hard-working men and women that power American industry. With over 750 Titans installed in the United States, they can be found in nearly every metal industry, and their reliability has made them popular with a multitude of OEMs and steel service centers.

The Titan III is available with many standard tools. Choose from vertical plasma, oxyfuel, or bevel cutting, as well as drilling up to 1/2″, and your choice of a variety of permanent and semi-permanent marking options. No matter the metal type or thickness, we have a plate metal-cutting solution to move your business forward.

Cutting widths: ................. 6′ to 16′ (1.82 m to 4.876 m).
Cutting lengths: ................ up to 150′ (45.72 m).
Type of Control: ................ Messer Global ControlPlus CNC Control
Contouring Speeds: .............. 400 IPM
Positioning Speeds: ............. Up to 1,700 IPM
Machine Motion Accuracy: ........ +/- .010″ (.254 mm)
Machine Motion Repeatability: .. +/- .010″ (.254 mm)
Material Cutting Capability: .... 26 gauge to 12″ plate thickness
