USED 2014 NOV HYDRAULIC 1289 TorqueMaster Junior
Overview
Description

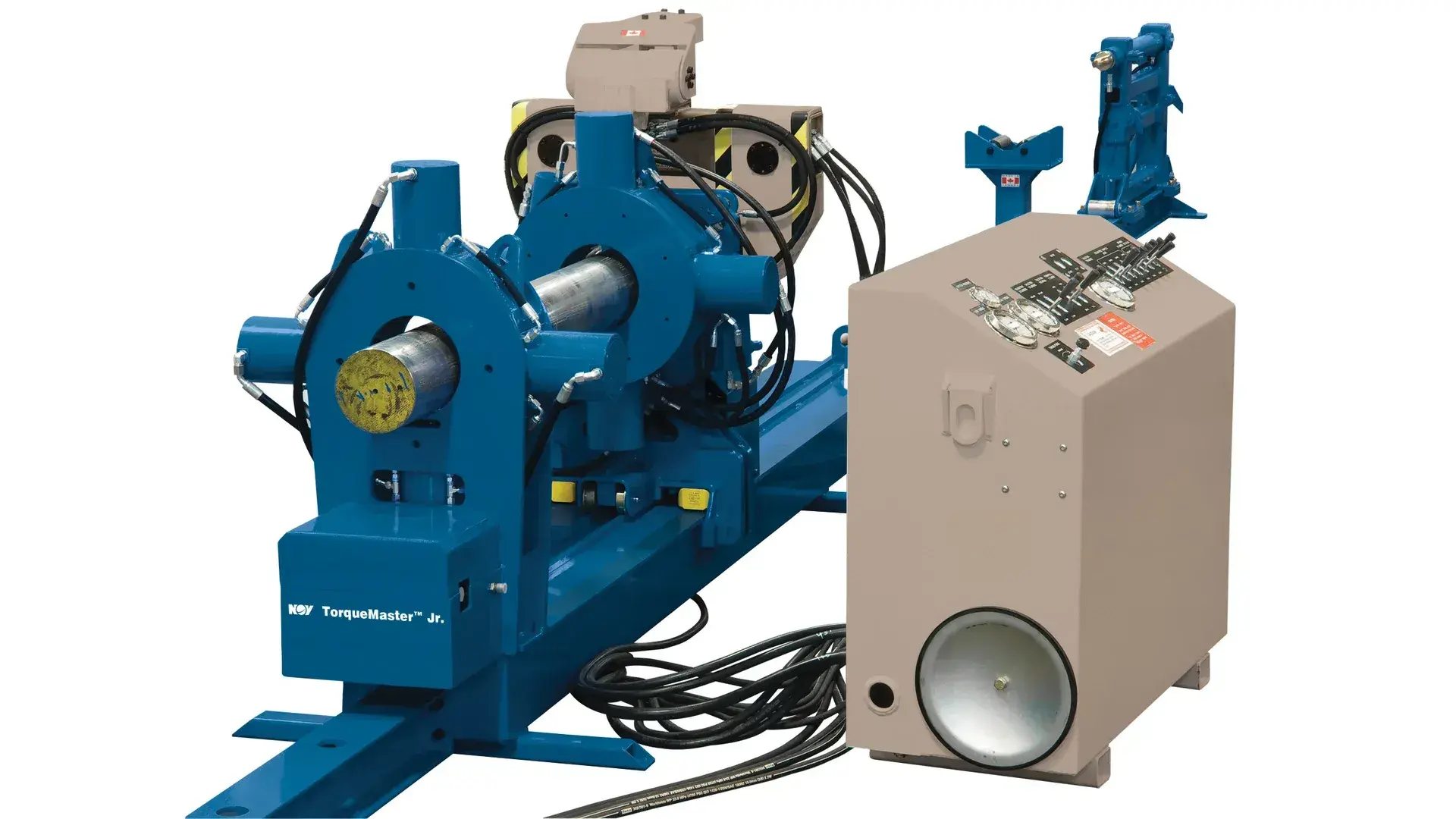

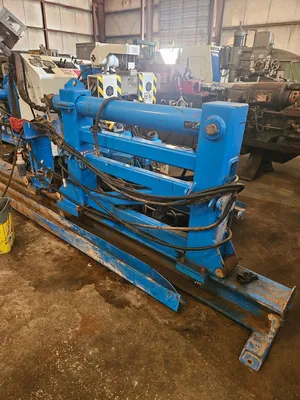

The 1289 TorqueMaster™ Junior provides a safe and easy way to make up and break out tubular tool joint connections for shops with limited space or that don't require the full capabilities of a full-sized TorqueMaster unit. Designed for practicality and with service shop safety in mind, the TorqueMaster Junior is a fully hydraulic unit consisting of a standard fixed headstock and a traversing tailstock chuck.
The unit can be custom configured to include various optional accessories—including extensions beams, rolling tool support jacks, a spinner assembly, a push/pull assembly, and torque-logging systems—that have been designed to increase the functionality of the unit. A single set of tong dies is used over the full 2⅝- to 8⅝-in. OD range of the unit, eliminating the need to constantly change them as the tool OD changes.

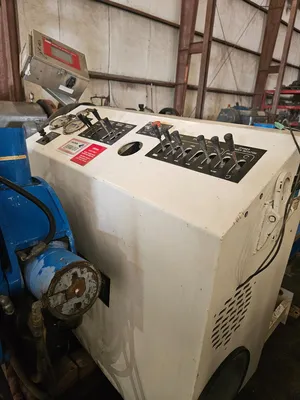

For safety and efficiency, the TorqueMaster Junior is operated by one person from a low-pressure, electric-powered, standalone hydraulic control console.
Specifications
| Centers | 16" | 406.4 mm |
|---|---|---|
| Air Supply Pressure | 3,250 PSI | 224.1 bar |
| Power | 10 hp | 7.5 kW |
| Force Capacity | 70,000 lbf | 311.4 kN |
| Dimensions | 160" x 40" x 61" | 160" x 40" x 61" |
| Weight | 3,900 | 3,900 |
Torque Capacity: 3,000 ft-lb (Minimum); 56,000 ft-lb (Make); 70,000 ft-lb (Break).
Tool Diameter Range (OD): 2-5/8” – 8-5/8” (Standard); 1-5/8” – 7-5/8” (Extra-Tall).
Operating Pressure: 3,250 psi.
Power: 10 HP.
Weight: Breakout unit: 3,900 lb; Console: 1,240 lb.
Minimum Distance Between Jaws: 16”.

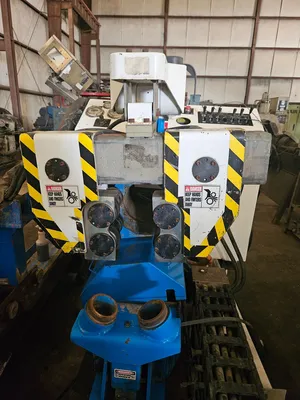

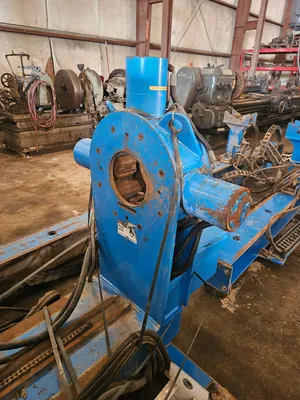

Configuration: Fixed headstock, traversing tailstock, self-centering cylinders.

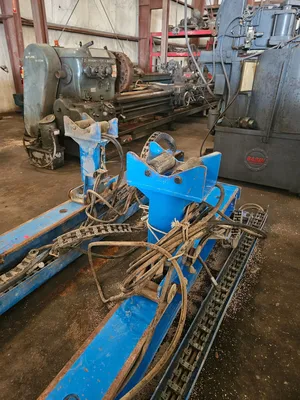

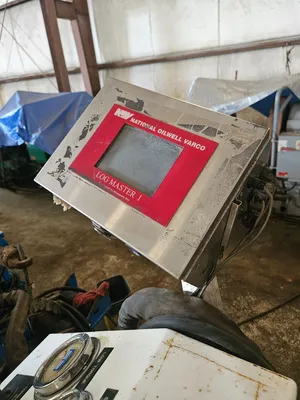

Options: Extension beams, rolling tool support jacks, spinner assembly, push/pull assembly, and torque-logging systems.
