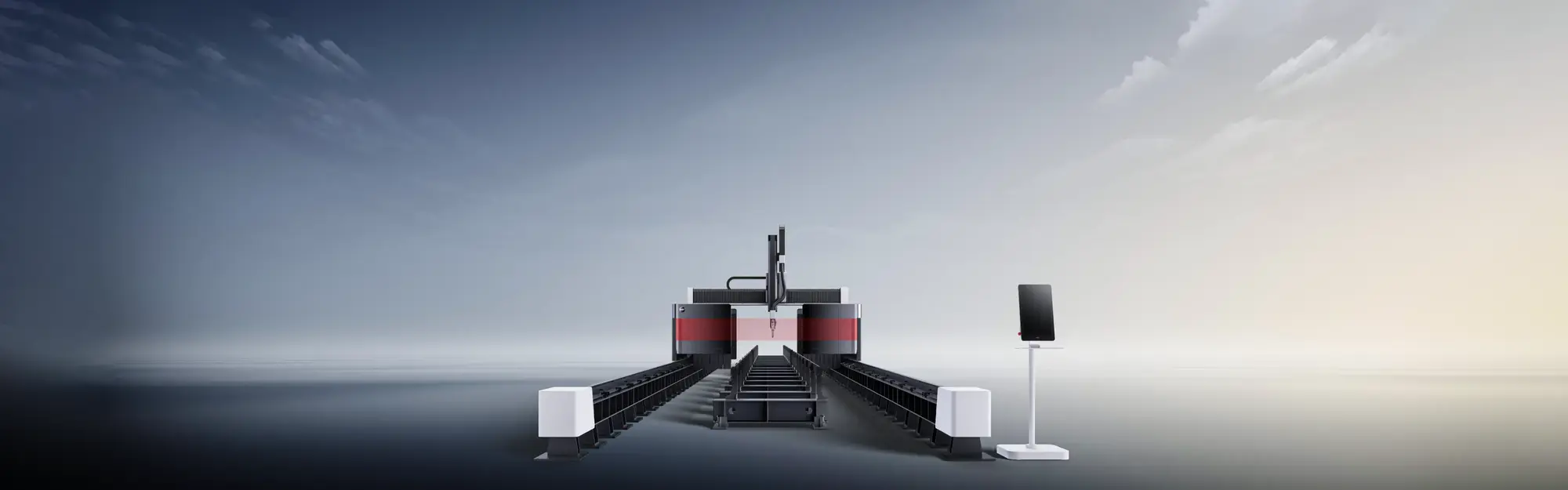

The Bodor U3000-Pro offers unmatched versatility by combining sheets, tubes, and profiles processing in a single machine. This all-in-one solution reduces the need for multiple machines, significantly lowering your equipment costs. With its loading multiple materials capabilities and cyclic processing, the U10 is designed to keep your operation running continuously. This means less downtime during cutting, loading, and unloading, ensuring maximum efficiency for your business. Advanced functions such as notch
cutting, beveling, automatic path adjustment of the laser head, and hands-free drawing splitting can save multiple processing steps, simplify production, and reduce cutting and labor costs.
| Control | CNC (BodorThinker) | CNC (BodorThinker) |
| Dimensions | 1,452"x259"x134" | 1,452"x259"x134" |
| Weight | 23100 LBS | 23100 LBS |
Laser Power - 12kW/24kW
Bevel Head Laser
MATERIAL SIZE RANGE - Structural steel:
4"×4"-59"×24"
Sheet metal: 126"×1,102"
Round tube metal：4"-47"
Round and square tube metal：8"-33"
Max. Tube Length - ≤47"
Maximum Material Weight - Structural steel:
6T
Sheet metal: 825LBS/m2
Round tube metal：9T
Round and square tube metal：6T
Max. Linkage Speed of X & Y Axes - 50m/min
Max. Acceleration - 0.5G
