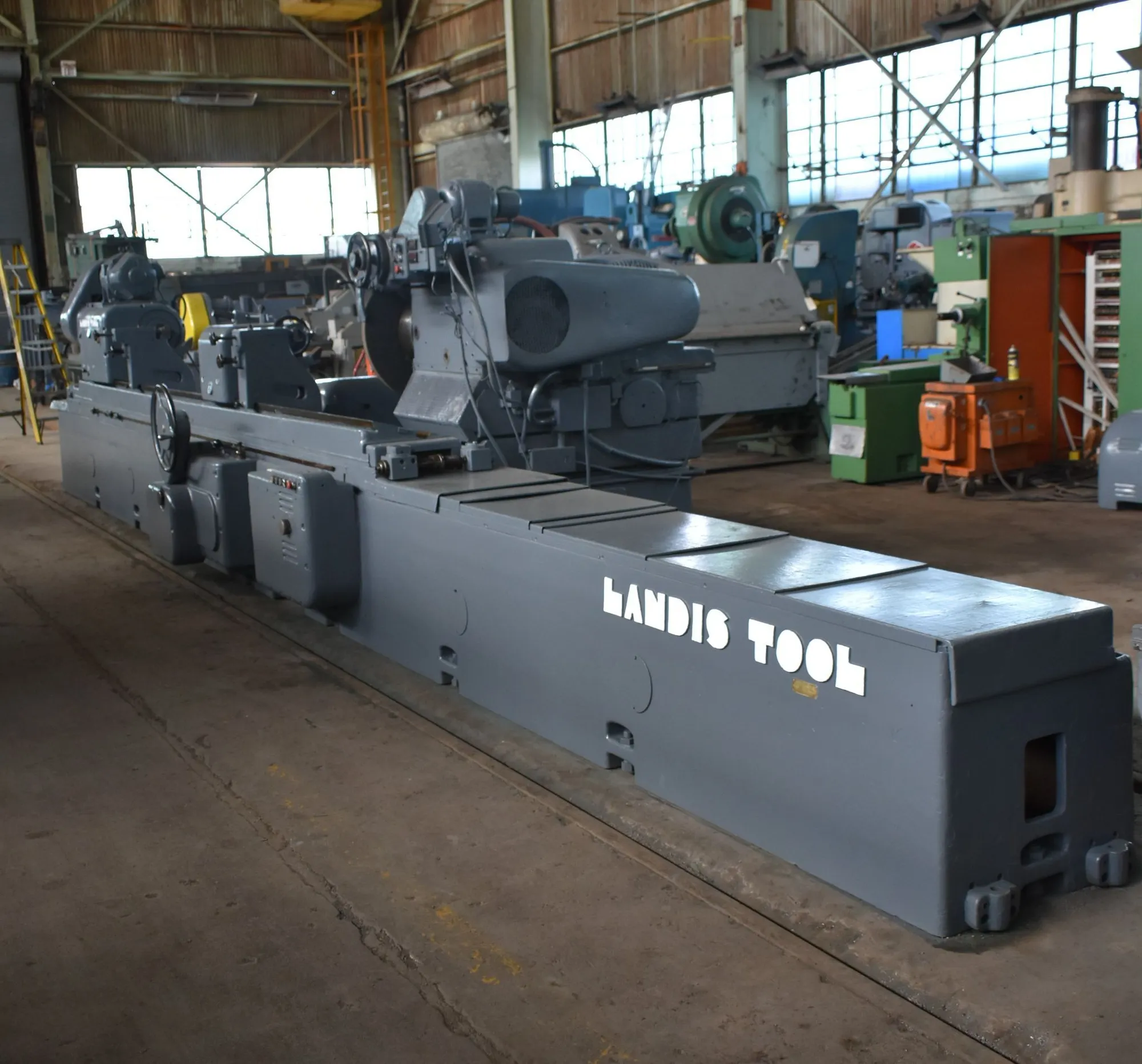

30" x 168” LANDIS “TYPE F” HEAVY-DUTY PLAIN HYDRAULIC CYLINDRICAL GRINDER - Steady Rests - (4) Grinding Wheel Hubs - Extra Grinding Wheels
| Swing | 30" | 762 mm |
| Centers | 168" | 4,267.2 mm |
| Plain or Angle Head | 'Plain' | 'Plain' |
| Grinding Wheel Dia. | 30" | 762 mm |
| Wheel Power | 40 hp | 29.8 kW |
| Wheel Speed | 0 RPM | 0 RPM |
| Dresser | 'Yes' | 'Yes' |
| Dimensions | 40’ x 8’10” | 40’ x 8’10” |
| Weight | 50000 | 50000 |
30" x 168" LANDIS HEAVY-DUTY PLAIN HYDRAULIC
CYLINDRICAL GRINDER
Serial No 526-7, Model F,
EQUIPPED WITH:
Tailstock Mounted Grinding Wheel Dresser
(2) Follow Style Steady Rests
(4) Wheel Hubs - Extra Grinding Wheels
40 HP Wheel Head Motor - 2 HP Vari-Speed DC Workhead
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 31.5"
Grinding Diameter, Maximum 30"
Distance Between Centers, Nominal 168"
Weight Capacity Between Centers, Maximum 10000 LBS
Grinding Wheel Diameter, Standard 30"
Grinding Wheel Width, Standard 3"
Grinding Wheel Hole Diameter 12"
Table Swivel Graduated 7-DEGREES 50-MINUTES
Workhead and Tailstock Center Tapers #20 JARNO
Workhead Spindle Speeds, Range 25 to 100 RPM
Table Longitudinal Feeds, Infinite 3 to 90 IPM
Grinding Wheel Motor, Horsepower 40HP/800 RPM
DC Workhead Motor Horsepower 2 HP/500 to 2000 RPM
Electrical System 230-460/3/60
Floor Space Required, L x D 40’ x 8'10"
Weight, Approximately 50000 LBS
F.O.B. OUR WAREHOUSE
