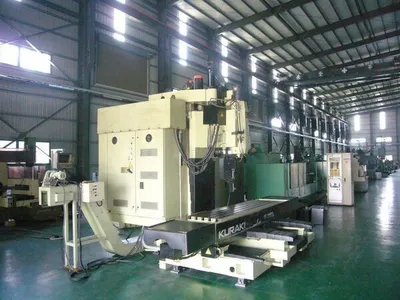

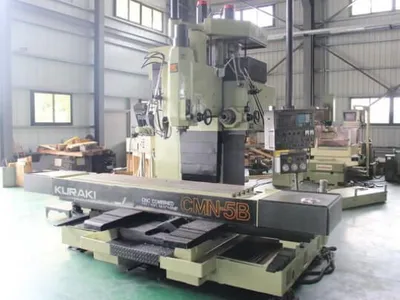

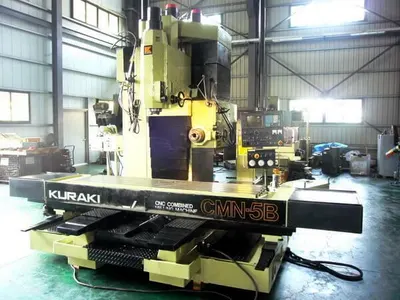

Used KURAKI CNC Combined Vert. & Horiz. Milling Machine, Modsel CMN-5B/L.H
Founded in 1938 in Nagaoka, Japan, KURAKI Co., Ltd. is a premier manufacturer specializing in high-precision CNC horizontal boring and milling machines. Formerly associated with Kurabo Industries, the company was acquired by DMG MORI in late 2023 and rebranded as DMG MORI Precision Boring Co., Ltd. in April 2024, continuing to focus on heavy-duty, large-workpiece machining for aerospace and energy industries.
| X | 79.13" | 2,009.9 mm |
| Y | 25.59" | 649.99 mm |
| Z | 33.46" | 849.88 mm |
| Power | 20.1 hp | 15 kW |
| RPM | 2,100 RPM | 2,100 RPM |
| Taper | No. 50 | No. 50 |
| Table-W | 23.62" | 599.95 mm |
| Table-L | 98.43" | 2,500.1 mm |
| # Axis | 6 | 6 |
| Control | CNC (FANUC 15 MA) | CNC (FANUC 15 MA) |
| Dimensions | 259.8" x 181.1" x 139.8"H | 259.8" x 181.1" x 139.8"H |
| Weight | 36,527 lbs | 36,527 lbs |

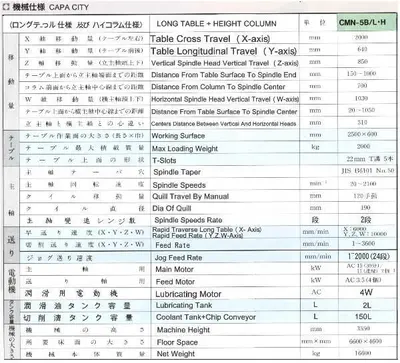

Table size 2500×600、 98.43" x 23.62"
Table Cross Travel：X-Axis：2010、 78.8"
Table Longitudinal Travel：Y-Axis：650、 25.59"
Vertical Spindle Head Travel：Z-Axis：850、 33.46"
Horizontal Spindle Head Travel：W-Axis：1030、 40.55"
Diameter of Quill: 7.48"

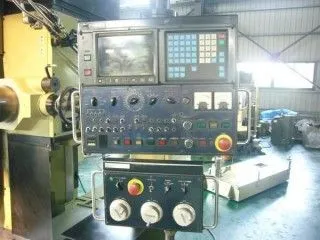

Control: FANUC 15MA、
Spindle Speeds: 20~2100rpm、
Max Loading Weight 2000kg、 4,400 lbs
Overall Dimensions: 259.8" x 181.1" x 139.8"H
Net Weight：16600kg 36,520 lbs
