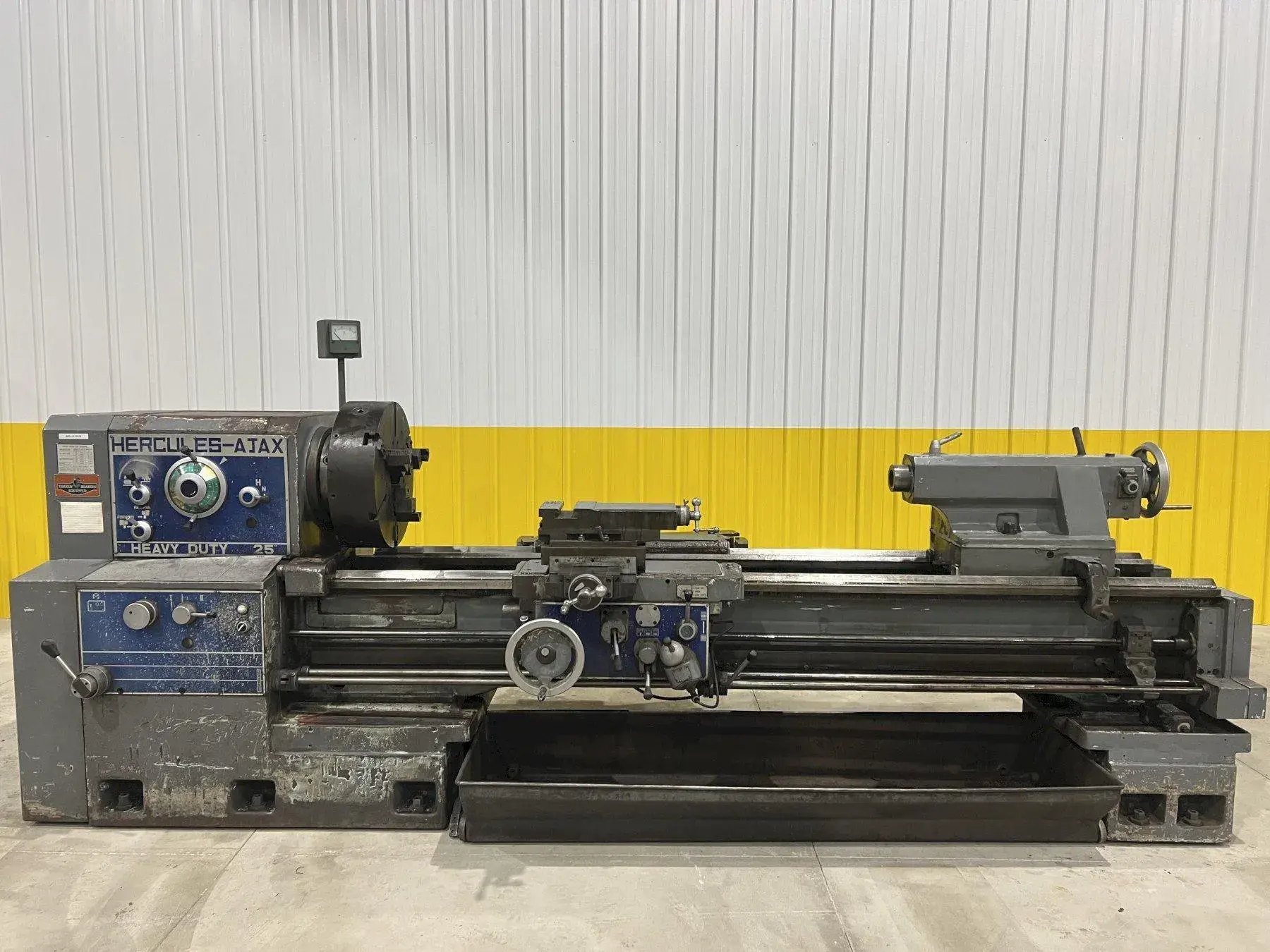

Used Engine Lathe for sale. Offering a 27" swing over ways, 17" swing over cross slide, and an 84" distance between centers. Equipped with a taper attachment, rapid traverse, and more. Powered by a 20 HP motor with speeds from 12 to 1200 RPM.
| Swing | 27" | 685.8 mm |
| Centers | 84" | 2,133.6 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 1,200 RPM | 1,200 RPM |
TYPE ...................... #25 HEAVY DUTY
SWING OVER WAYS ........... 27"
SWING OVER CROSS SLIDE .... 17"
GAP BED ................... YES
DISTANCE BETWEEN CENTERS .. 84"
SPINDLE SPEEDS ............ (16) 12 TO 1200 RPM
DIAMETER OF SPINDLE HOLE .. 4"
MOTOR ..................... 20 HP
TAPER ATTACHMENT
RAPID TRAVERSE
THREAD DIAL
HARDENED WAYS
COOLANT
FEEDS
THREADS
METRIC THREADING
