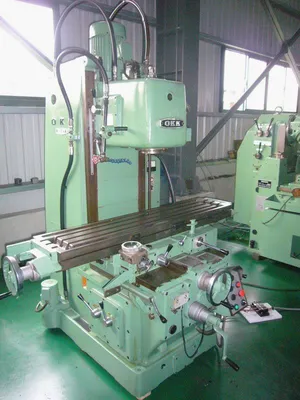

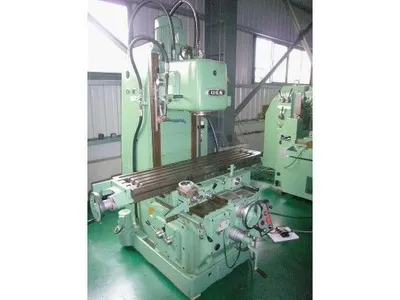

Used OKK (Osaka Kiko) Bed Type Vertical Mill, Model MH-2V
The MH-2V is a bed-type mill, offering higher rigidity than knee-type mills. The spindle head moves vertically, while the table moves longitudinally and crosswise on a fixed bed. It is widely used for heavy cutting due to the #50 taper spindle and robust construction.
The OKK MH-2V is a robust Japanese-built bed-type vertical milling machine, typically featuring a (51" x 12") table, a 5 HP to 7.5 HP spindle motor, and ISO 50 spindle taper. It is designed for heavy-duty, precise machining with 60–1800 RPM speeds, 28" X-axis travel, and a 14"-18"vertical head travel.
OKK Corporation (formerly Osaka Kiko Co., Ltd.) is a prominent Japanese manufacturer founded in 1915 as Osaka Kikai Kosakusho. Headquartered in Hyogo, Japan, it specializes in CNC machine tools, including horizontal/vertical machining centers and grinders. The company has a long history of industrial innovation, including developing Flexible Manufacturing Systems (FMS).
| Table-W | 11.8" | 299.72 mm |
| Table-L | 51.2" | 1,300.5 mm |
| Travel-Long | 28.3" | 718.82 mm |
| Travel-Cross | 10.2" | 259.08 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 1,800 RPM | 1,800 RPM |
| Taper | ISO 50 | ISO 50 |
| Weight | 6,000 lbs. | 6,000 lbs. |
Model: MH-2V (Osaka Kiko/OKK)

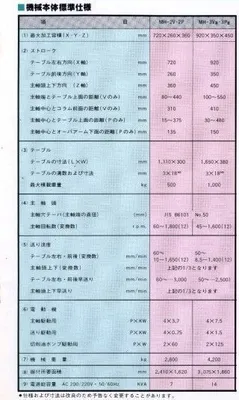

Specifications
X axis 720 mm 28.35"
Y axis 260 mm 10.24"
Z axis 450 mm 17.71"
Table length 1310 mm 51.57"
Table width 300 mm 11.81"
Max load on table 500 kg 1,100 lbs
Spindle taper NT50
Max. spindle speed 1800 rpm
Spindle motor power 3.7 kW 5HP
Weight 6000 lbs
