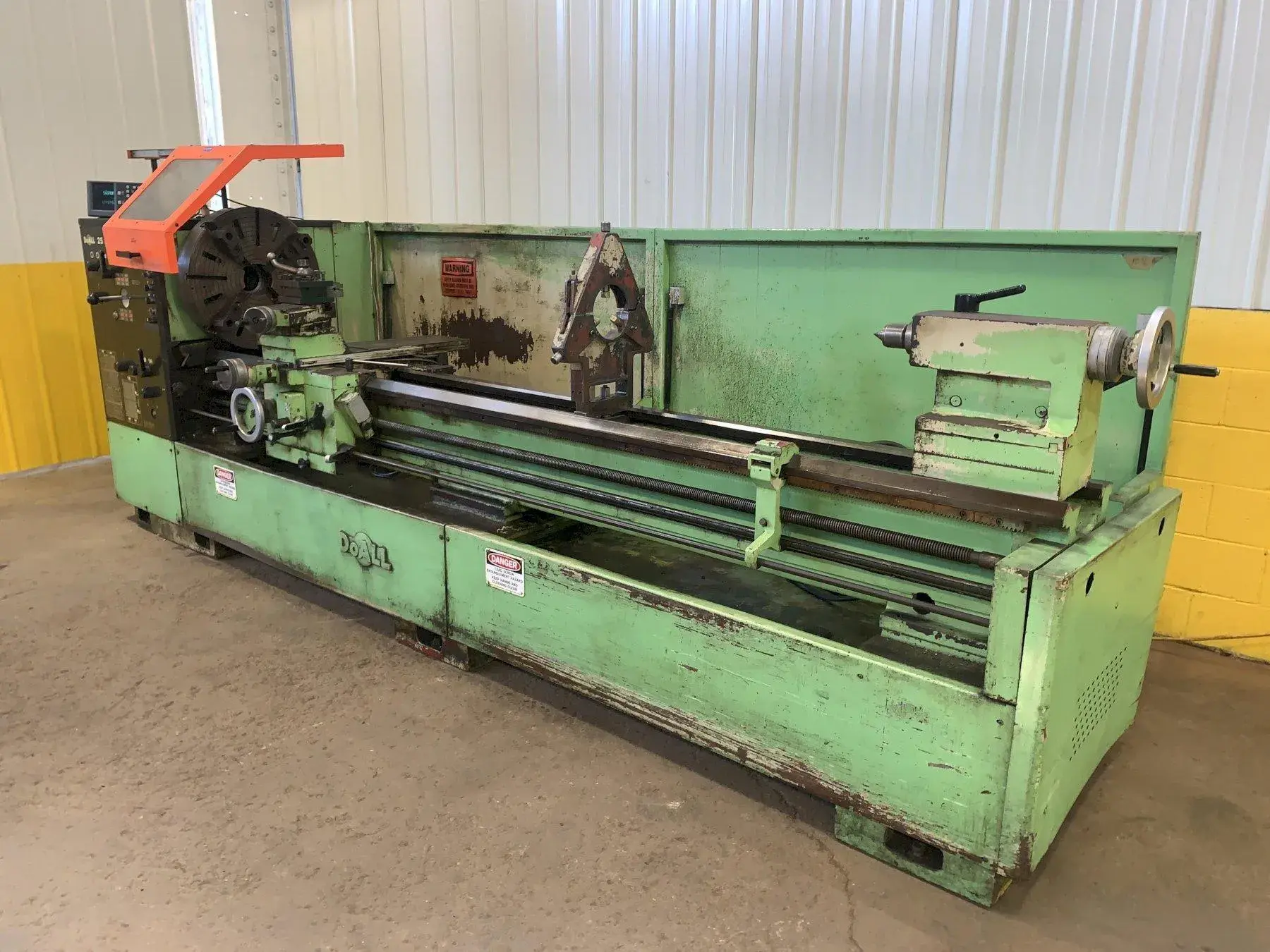

Used engine lathe features a 25" swing, 120" centers, and 15 hp motor. Equipped with digital readouts, coolant, and splash guard. Spindle speeds range from 63-1,700 RPM, with steady rest and 4-jaw 24.5" chuck.
| Swing | 25" | 635 mm |
| Centers | 120" | 3,048 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,700 RPM | 1,700 RPM |
SWING OVER WAYS ........... 25"
SWING OVER CROSSLIDE ...... 18"
SWING IN GAP .............. 35"
LENGTH OF GAP ............. 15"
DISTANCE BETWEEN CENTERS .. 120"
SPINDLE SPEEDS ............ 63 TO 1700 RPM
SPINDLE HOLE DIAMETER ..... 4-1/8"
CHUCK SIZE ................ 24-1/2", 4 JAW
STEADY REST ............... 6" CAPACITY
TAILSTOCK TAPER ........... 4 MT
MOTOR ..................... 15 HP
STANDARD FEEDS / THREADS
METRIC FEEDS / THREADS
THREAD DIAL
DIGITAL READOUTS
COOLANT
SPLASH GUARD
RAPID TRAVERSE
