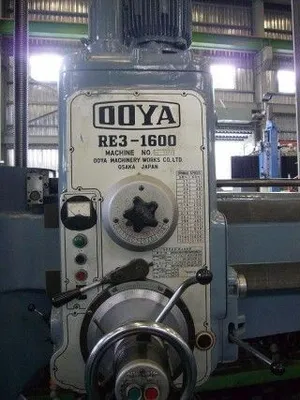

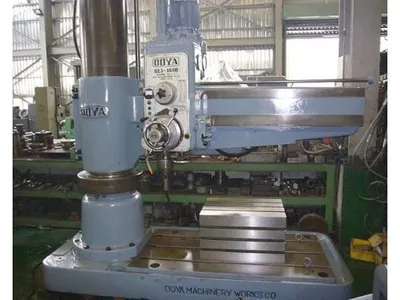

Used OOYA Radial Drill Model RE-3 1600, 5-foot, 16" Column, Japanese made, 15.75" Quill Travel
Ooya (or OOYA) is a Japanese machinery manufacturer recognized for producing high-quality, heavy-duty industrial radial drilling machines and CNC vertical machining centers. The company is known for robust, all-geared machines, with many models from the late 20th century still in operation today.
| Arm Length | 5' | 1.5 m |
| Column Dia. | 16" | 406.4 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 2,180 RPM | 2,180 RPM |
| Dimensions | 114" x 44" x 112"H | 114" x 44" x 112"H |
| Weight | 12,000 lbs | 12,000 lbs |

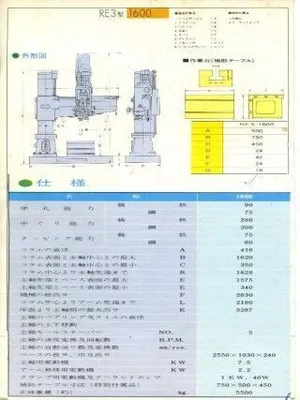

Dimension:
Drilling capacity
Steel 75、 2.95"
Cast iron 90、 3.54"
Tapping capacity steel 60、 2.36"
Cast iron 75、 2.95"
Column dia 416、 16.38"
Max dist from column saface to spindle center 1620(Min 350)、63.78"
max dist from spindle to base 1575(min 340)、 62.0"
Spindle Speeds (16 spindle speeds) 20-2,180
Main Motor 10HP
Elevation Motor 3HP
Clamping Motor 1.5HP
Spindle dia 75/95、 3 3/4"
Taper M.T5、 #5 Morse TaperSpindle travel 400、 15.75"
Vertical Arm travel 850、 33.46"
Spindle box travel 1330、 52.36"
Total Weight 12,100 LBS
