USED ALLEN BRADLEY MPL-B330P-MJ22AA
Overview
Description

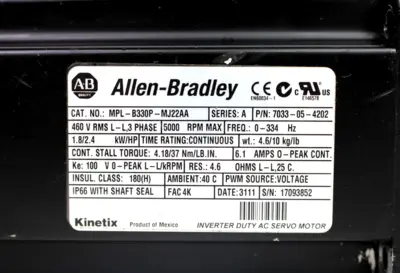

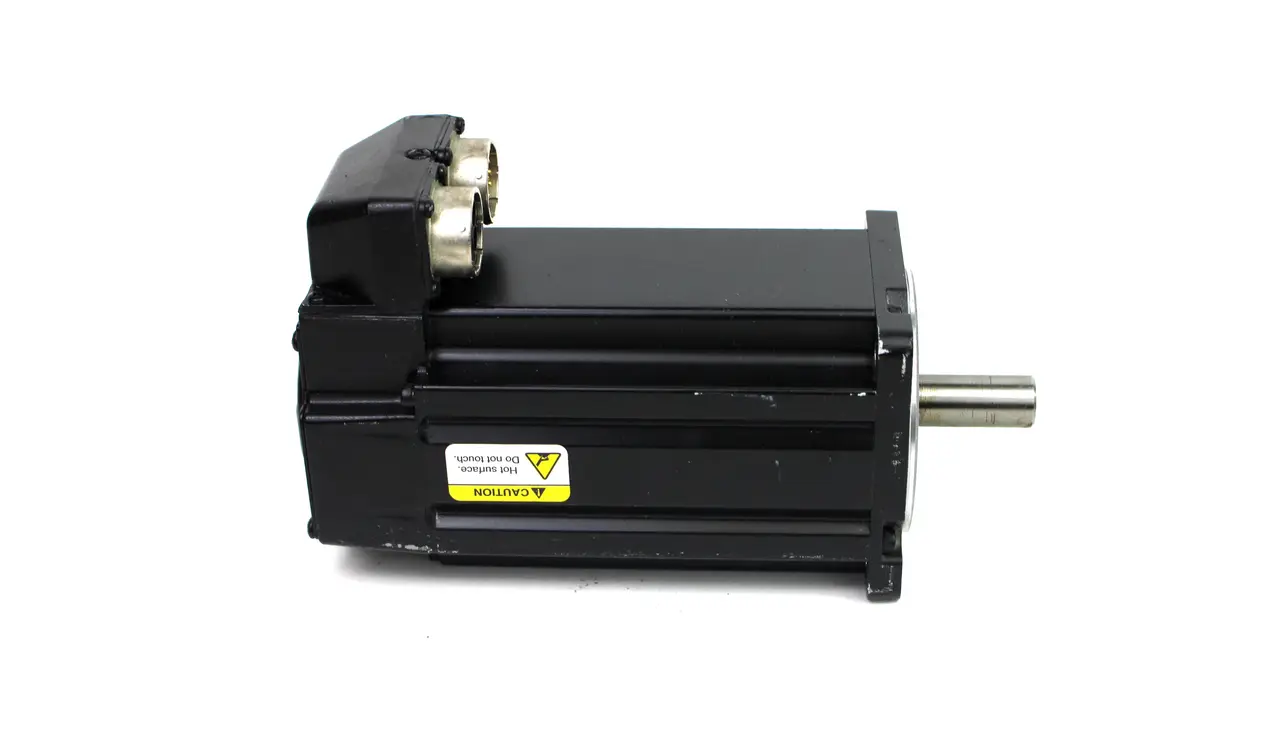

Allen Bradley MPL-B330P-MJ22AA Ser. A Inverter Duty AC Servo Motor, 1.8/2.4kW/HP
-P/N: 7033-05-4202
-S/N: 17093852
-KINETIX
-460V RMS L-L, 3 Phase
-5000 RPM Max.
-Frequency: 0-334Hz
-1.8/2.4 kW/HP
-Time Rating: Continuous
-Cont. Stall Torque: 4.18/37 Nm/LB.IN.
-6.1 Amps 0-Peak Cont.
-Ke: 100V 0-Peak L-L/kRPM
-Res.: 4.6 OHMS L-L, 25 C.
-Insulation Class: 180(H)
-Ambient Temperature: 40°C
-PWM Source: Voltage
-IP66 with Shaft Seal
-FAC 4K
PRODUCT OF MEXICO
Specifications
| Weight | 10.06 LBS | 10.06 LBS |
|---|
SKU: IP12305
UPC: 646412865112
Condition: Used
Availability: In Stock
Weight: 10.06 LBS
Width: 10.00
(in)
Height: 6.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
Type: AC Servo Motor
MPN: MPL-B330P-MJ22AA
Horsepower: 2.4
Model: MPL-B330P-MJ22AA
Shelf: G-19
RPM: 5000
Part Number: MPL-B330P-MJ22AA
Phase: 3
Manufacturer: Allen Bradley
Country/Region of Manufacture: Mexico
Stall Torque: 4.18/37 Nm/LB.IN.
GTIN: 646412865112
