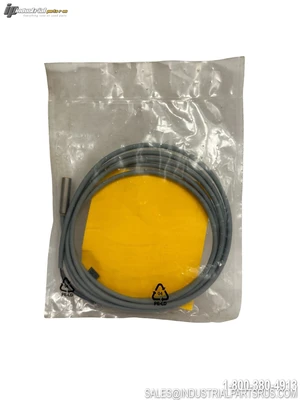

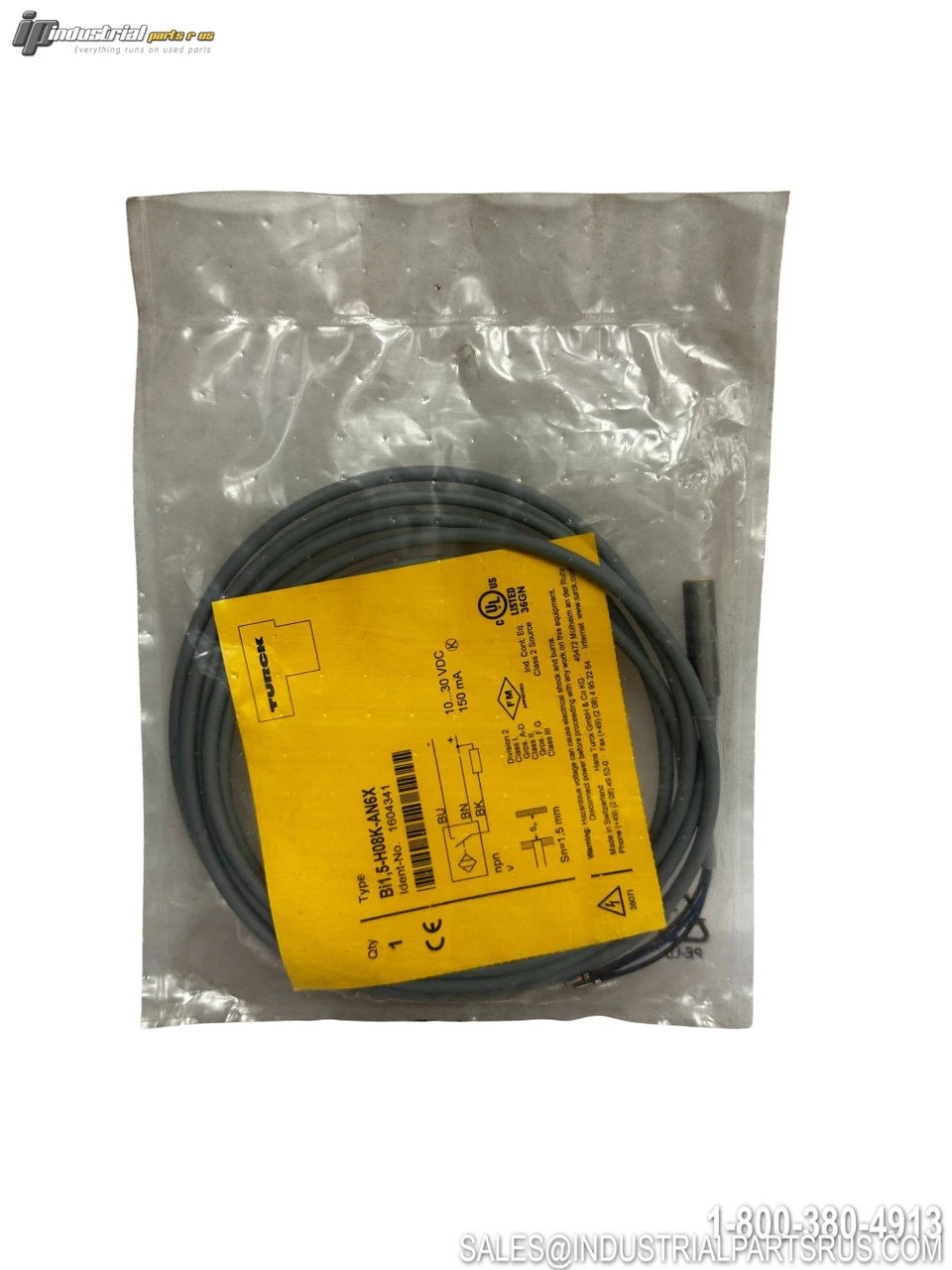

NEW TURCK BI1,5-H08K-AN6X
Overview
Description
The Turck BI1,5-H08K-AN6X is an inductive proximity sensor designed for industrial automation applications. This sensor features an 8mm smooth barrel construction and is part of Turck's comprehensive proximity sensor product line.
Specification
Value
Brand
Turck
Model/Part Number
BI1,5-H08K-AN6X
Sensor Type
Inductive Proximity
Sensing Distance
1.5mm
Operating Voltage
10-30 VDC
Output Type
NPN, NO Contact
Construction Size
8mm
Design
Smooth Barrel
Mounting Type
Flush
Switching Frequency
3.0 kHz
Connection Type
M8 x 1 Connector
Housing Material
Stainless Steel (1.4301/AISI 304)
Operating Temperature
-25°C to +70°C
Protection Rating
IP67
Weight
10g
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI0631
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: NPN
Sensor Type: Inductive
Operating Distance: 1.5mm
Manufacturer: Turck
Part Number: BI1,5-H08K-AN6X
Shelf: K-56 TUB 2
Model: BI1,5-H08K-AN6X
MPN: BI1,5-H08K-AN6X
Type: Inductive Proximity Sensor
