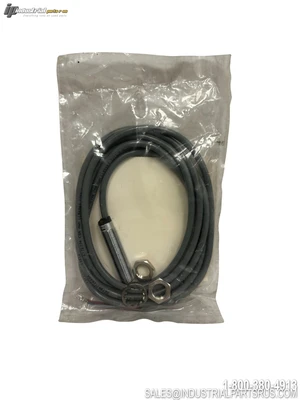

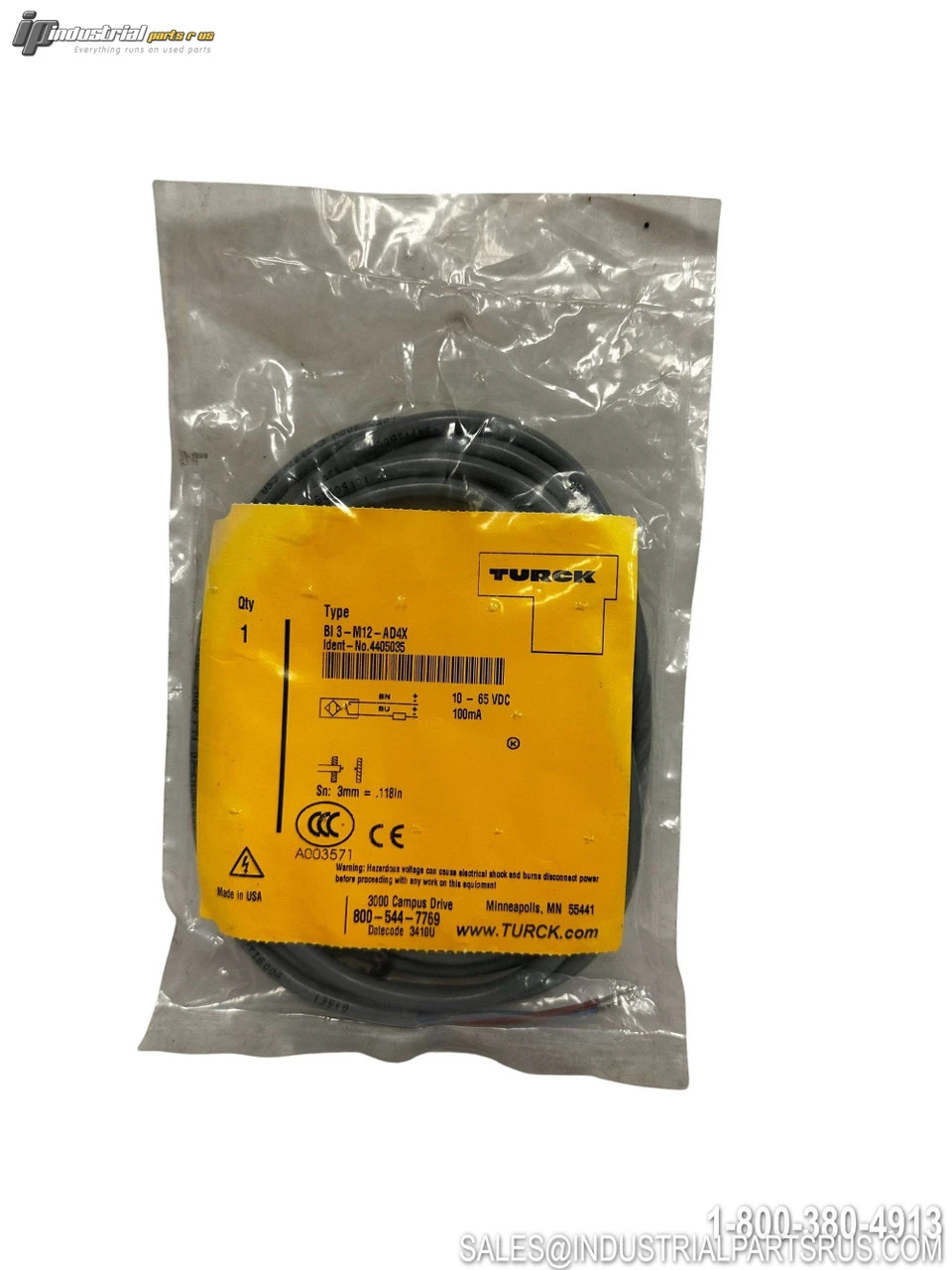

NEW BI3 BI3-M12-AD4X

The Turck BI3-M12-AD4X is an industrial inductive proximity sensor designed for reliable object detection in harsh environments. This embeddable sensor features a chrome-plated brass housing with M12 threading and operates with a 2-wire DC configuration for simplified wiring. It provides consistent performance with LED indicator feedback and IP67 protection rating.
Specification
Value
Brand
Turck
Model/Part Number
BI3-M12-AD4X
Product Series
BI3
Turck ID Number
4405035
Sensing Range
3mm
Thread Size
M12 x 1
Housing Design
Partially Threaded Barrel
Housing Material
Chrome-plated Brass
Supply Voltage
10-65VDC
Output Type
2-Wire DC
Contact Type
NO (Normally Open)
Maximum Current
100mA
Switching Frequency
1kHz (1000Hz) max
Connection Type
2m Cable with Bare Wire Ends
Mounting Type
Embeddable (Flush)
Ambient Temperature
-25°C to +70°C
Protection Rating
IP67
LED Indicator
Yes
Sensor Face Diameter
12mm
Shielded
Yes
We warranty all items for 30 days from date of purchase.

SKU: AI0642
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Output Type: 2-Wire DC
Sensor Type: Inductive
Manufacturer: Bi3
Part Number: BI3-M12-AD4X
Shelf: K-56 TUB 7
Model: BI3-M12-AD4X
MPN: BI3-M12-AD4X
Type: Inductive Proximity Sensor
