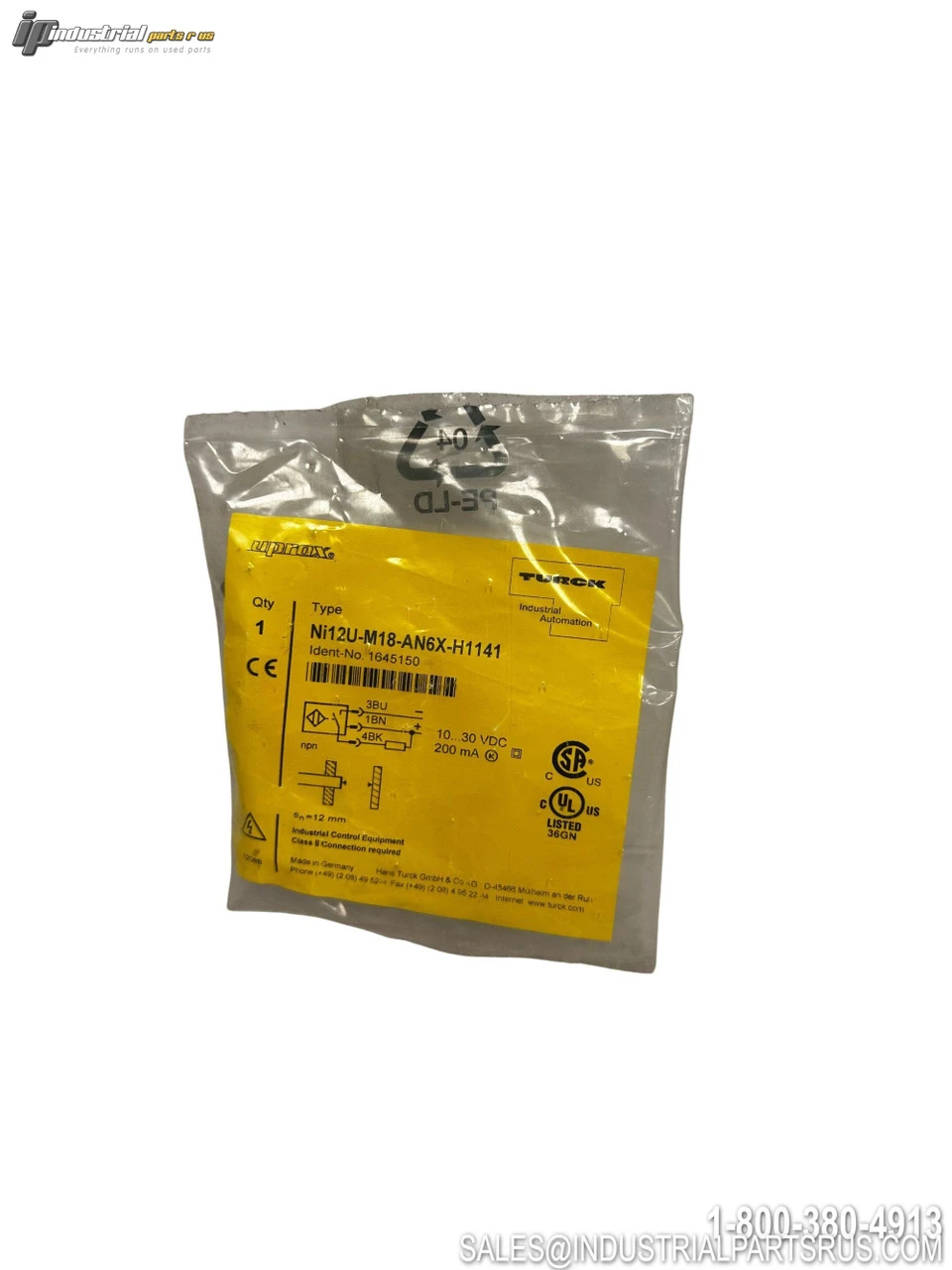

NEW TURCK NI12U-M18-AN6X-H1141
Overview
Description
The Turck NI12U-M18-AN6X-H1141 is an inductive proximity sensor designed for non-embeddable mounting applications. This sensor features uprox Factor 1 technology for detecting all metals at the same switching distance and provides excellent resistance to magnetic fields. The chrome-plated brass construction ensures durability in industrial environments.
Specification
Value
Brand
Turck
Model/Part Number
Ni12U-M18-AN6X-H1141
Turck ID Number
1645150
Sensing Range
12mm
Housing Size
18mm
Housing Style
Partial thread
Thread Size
M18 x 1
Housing Material
Chrome-plated brass
Mounting Type
Non-embeddable
Output Type
NPN (sinking)
Output Function
Normally open
Supply Voltage
10-30 VDC
Wiring Configuration
3-wire DC
Connector Type
M12 Eurofast male
Number of Pins
4 pin
Connector Orientation
Straight
LED Indicators
1 LED
Sensing Technology
Uprox
Series
NI12U
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI0639
UPC: 679523686208
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Output Type: NPN
Sensor Type: Inductive
Operating Distance: 12mm
Manufacturer: Turck
Part Number: NI12U-M18-AN6X-H1141
Shelf: K-40 TUB1
Model: NI12U-M18-AN6X-H1141
MPN: NI12U-M18-AN6X-H1141
Type: Inductive Proximity Sensor
