NEW TURCK BI2-EG08K-AG41X
Overview
Description

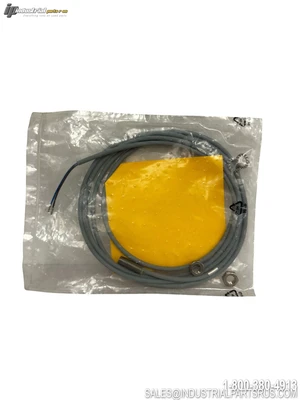

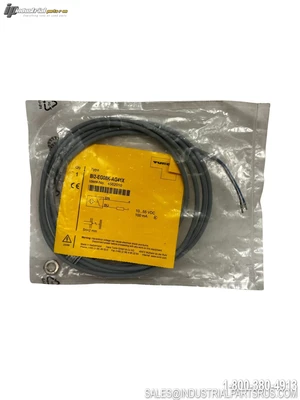

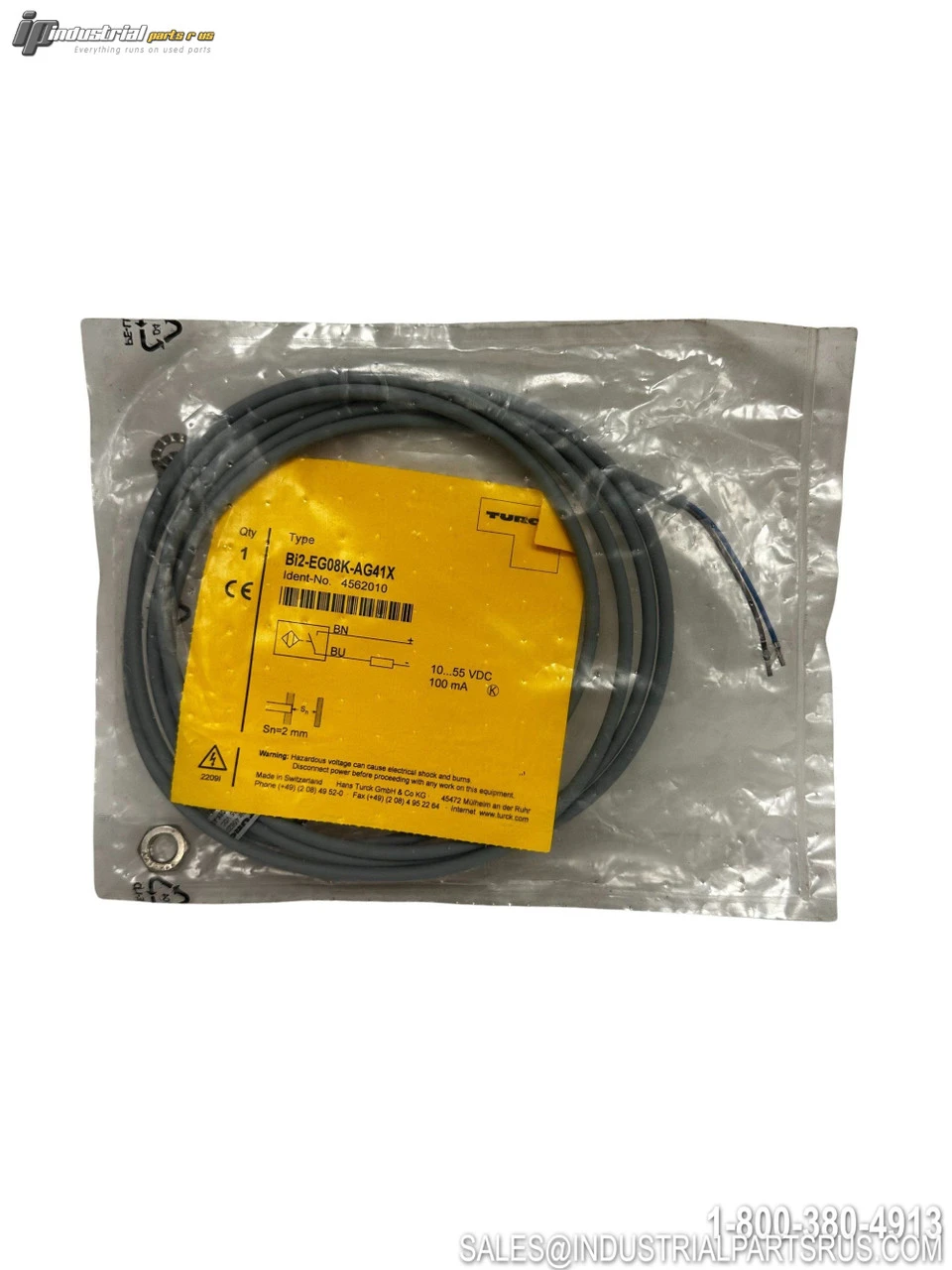

The Turck BI2-EG08K-AG41X is an inductive proximity sensor featuring a compact M8x1 threaded barrel design with 2mm sensing range. This sensor is designed for flush mounting applications and provides reliable non-contact detection of metallic objects in industrial automation systems.
Specification
Value
Brand
Turck
Model/Part Number
BI2-EG08K-AG41X
Sensing Range
2mm
Construction Size
M8 x 1
Design
Threaded barrel
Mounting
Flush
Operating Voltage
10-55 VDC
Output Function
NO contact, 2-wire
Switching Frequency
0.30 kHz
Electrical Connection
Cable
Cable Length
2.0 m
Housing Material
Stainless steel, 1.4427 SO
Ambient Temperature
-25°C to +70°C
Protection Class
IP67
Current Rating
100mA max
Cable Material
PUR (Polyurethane)
Sensing Face Material
PA12-GF20 (glass fiber reinforced Polyamide)
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI0637
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Output Type: NO contact
Sensor Type: Inductive
Manufacturer: Turck
Part Number: BI2-EG08K-AG41X
Shelf: K-56 TUB 5
Model: BI2-EG08K-AG41X
MPN: BI2-EG08K-AG41X
Type: Inductive Proximity Sensor
