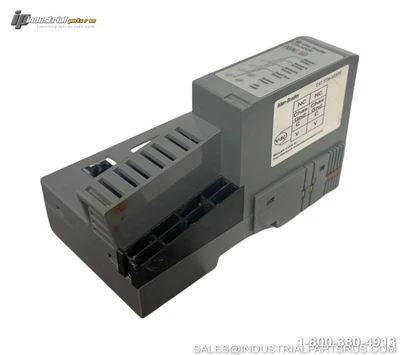

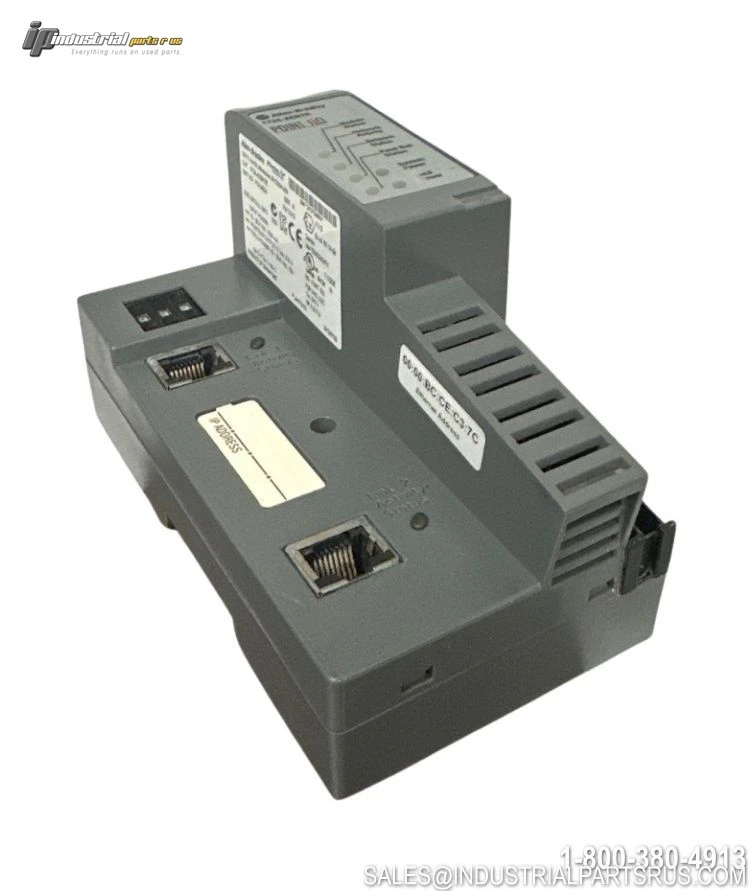

USED ALLEN-BRADLEY 1734-AENTR

The Allen-Bradley 1734-AENTR is a POINT I/O Dual Port EtherNet/IP Network Adapter Module designed for industrial automation applications. This dual Ethernet communication module interfaces POINT I/O racks to the central controller in the Ethernet/IP network. It features two ports configured as embedded switches with Category 5 RJ-45 connectors supporting ring, daisy chain/linear, star, and tree network topologies.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
1734-AENTR
Series
POINT I/O
Module Type
Ethernet/IP Adapter Module
Input Voltage
24 VDC
Input Voltage Range
10-28.8 VDC
Communication Rate
10/100 Mbps Half/Full Duplex
Ethernet Ports
2 Ports (Embedded Switch)
Maximum Power Consumption
10.4 Watts at 28.8 VDC
Maximum I/O Capacity
63 Modules
Maximum Inrush Current
6 Amps for 10ms
Operating Temperature
-20°C to 60°C
Isolation Voltage
50V Continuous
Dimensions
76.2 x 73.0 x 133.4 mm
Weight
0.62 pounds (280g)
Mounting Type
DIN Rail
Enclosure Type
Open
We warranty all items for 30 days from date of purchase.

SKU: AI0599
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 6 Amps for 10ms
Manufacturer: Allen-Bradley
Enclosure Type: Open
Part Number: 1734-AENTR
Controller Platform: POINT I/O
Shelf: K-46
Model: 1734-AENTR
MPN: 1734-AENTR
Type: Communication Module
