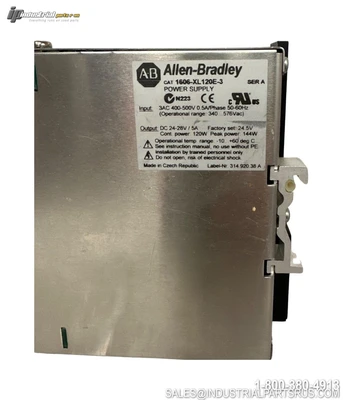

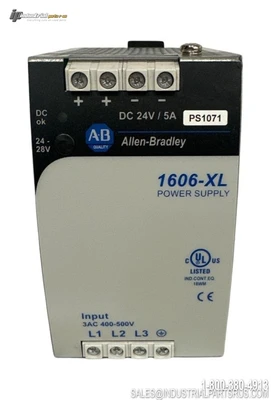

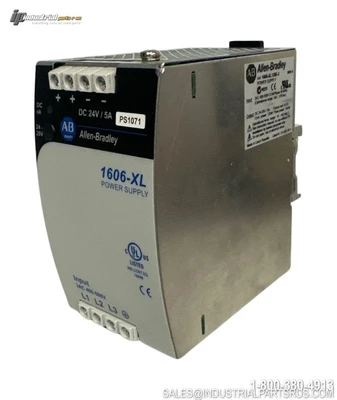

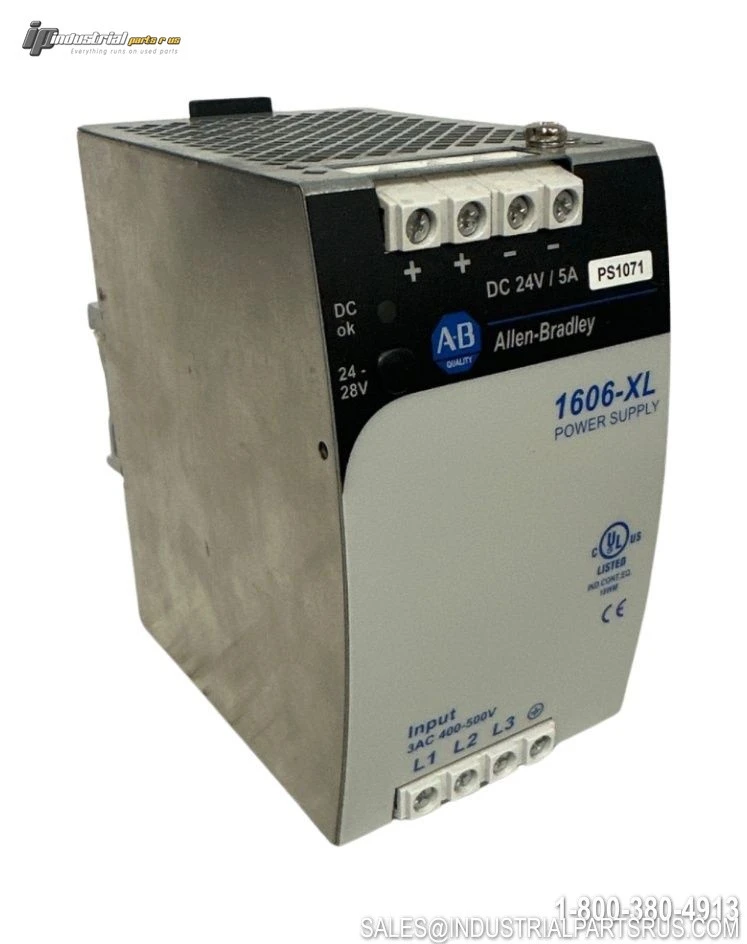

USED ALLEN-BRADLEY 1606-XL120E-3

The Allen-Bradley 1606-XL120E-3 is an industrial three-phase switched mode power supply designed for demanding automation and control applications. This 120-watt unit converts 480VAC three-phase input to stable 24-28VDC output with high efficiency and reliability. Features DIN rail mounting for easy integration into control panels and systems.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
1606-XL120E-3
Product Type
Switched Mode Power Supply
Series
1606-XL
Output Power
120W Continuous / 144W Peak
Output Voltage
24-28 VDC (Factory Set: 24.5V)
Output Current
5A at 24V, 4.3A at 28V
Input Voltage
400-500 VAC / 450-820 VDC
Operating Range
340-576 VAC
Input Current
0.5A per phase
Phase
3-Phase
Frequency
47-63 Hz
Efficiency
89%
Mounting Type
DIN Rail
Dimensions
73 x 124 x 117 mm (W x H x D)
Weight
730 grams (1.65 lbs)
Operating Temperature
-10 to +70°C
Storage Temperature
-25 to +85°C
Ripple and Noise
< 50 mV peak-to-peak
Cable Size
20-10 AWG
Features
PFC Choke, Auto Input Select, Parallel Operation
Indicators
Green and Red LEDs
Certifications
CE, UL, GOST, MARINE, Class 1 Div 2
We warranty all items for 30 days from date of purchase.

SKU: AI0594
UPC: 679523686222
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686222
Manufacturer: Allen-Bradley
Part Number: 1606-XL120E-3
Shelf: K-30
Model: 1606-XL120E-3
MPN: 1606-XL120E-3
Type: Power Supply
