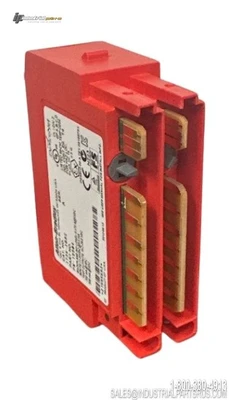

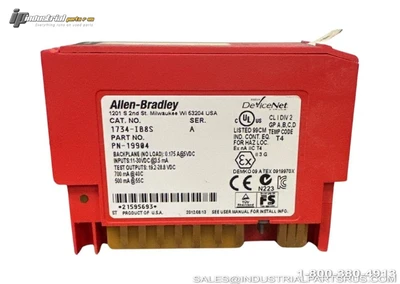

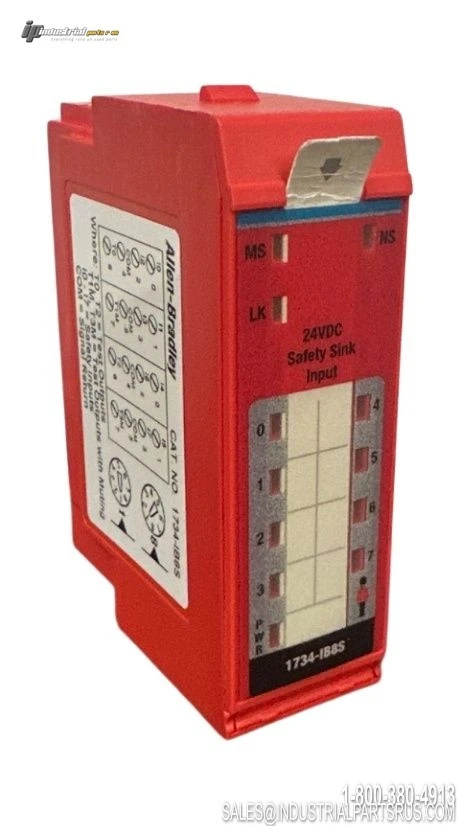

USED ALLEN-BRADLEY 1734-IB8S

The Allen-Bradley 1734-IB8S is a POINT Guard I/O Safety Module designed for safety-critical applications requiring Safety Instrumentation Level (SIL) compliance. This digital module features 8 current sinking safety input channels and 4 current sourcing pulse test outputs, supporting both single-channel and dual-channel safety configurations for Safety Categories 2, 3, and 4.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
1734-IB8S
Platform
POINT Guard I/O
Input Type
Current Sinking
Number of Inputs
8
Supply Voltage
24VDC Nominal
Input Voltage Range
19.2 to 28.8 VDC
Maximum Input Current
175 mA
Maximum Power Dissipation
3.4 W
Response Time
16.2 milliseconds per channel
Test Outputs
4 Current Sourcing Pulse
Enclosure Type
Open
IP Rating
IP20
Mounting Type
DIN Rail
Series Availability
Series A and B
Dimensions
77 x 25 x 55 mm (3.03 x 0.98 x 2.17 inches)
Weight
62.4 grams (2.2 ounces)
Max Thermal Dissipation
11.62 BTU/hour
Isolation Voltage
50 VDC Continuous
Max Power Bus Current
25 mA (no load)
LED Indicators
10 Total (8 I/O Channel Status, 1 Power Status, 1 Lock Status)
Communication Support
Ethernet/IP and DeviceNet
Safety Rating
SIL (Safety Instrumentation Level)
We warranty all items for 30 days from date of purchase.

SKU: AI0600
UPC: 679523686246
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686246
Output Type: Current Sourcing
Full Load Amps: 25 mA
Manufacturer: Allen-Bradley
Enclosure Type: Open
Part Number: 1734-IB8S
Controller Platform: POINT Guard I/O
Shelf: K-46
Model: 1734-IB8S
MPN: 1734-IB8S
Type: I/O Module
