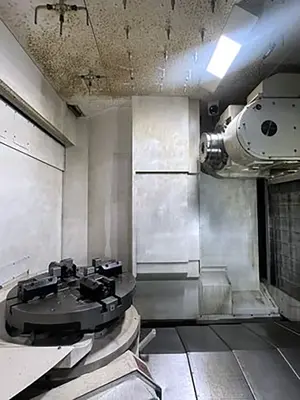

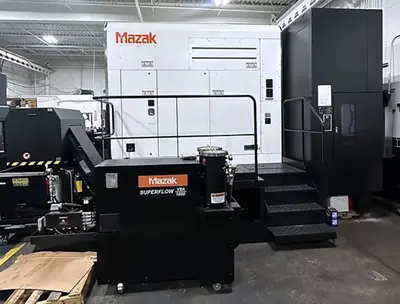

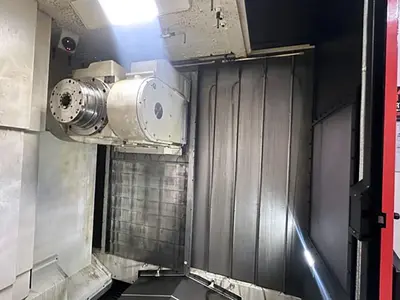

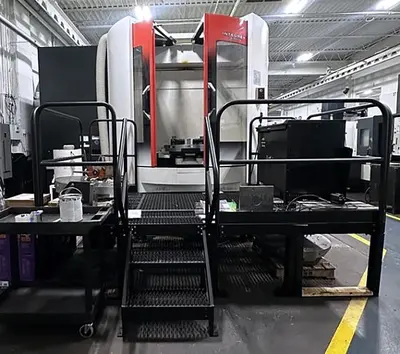

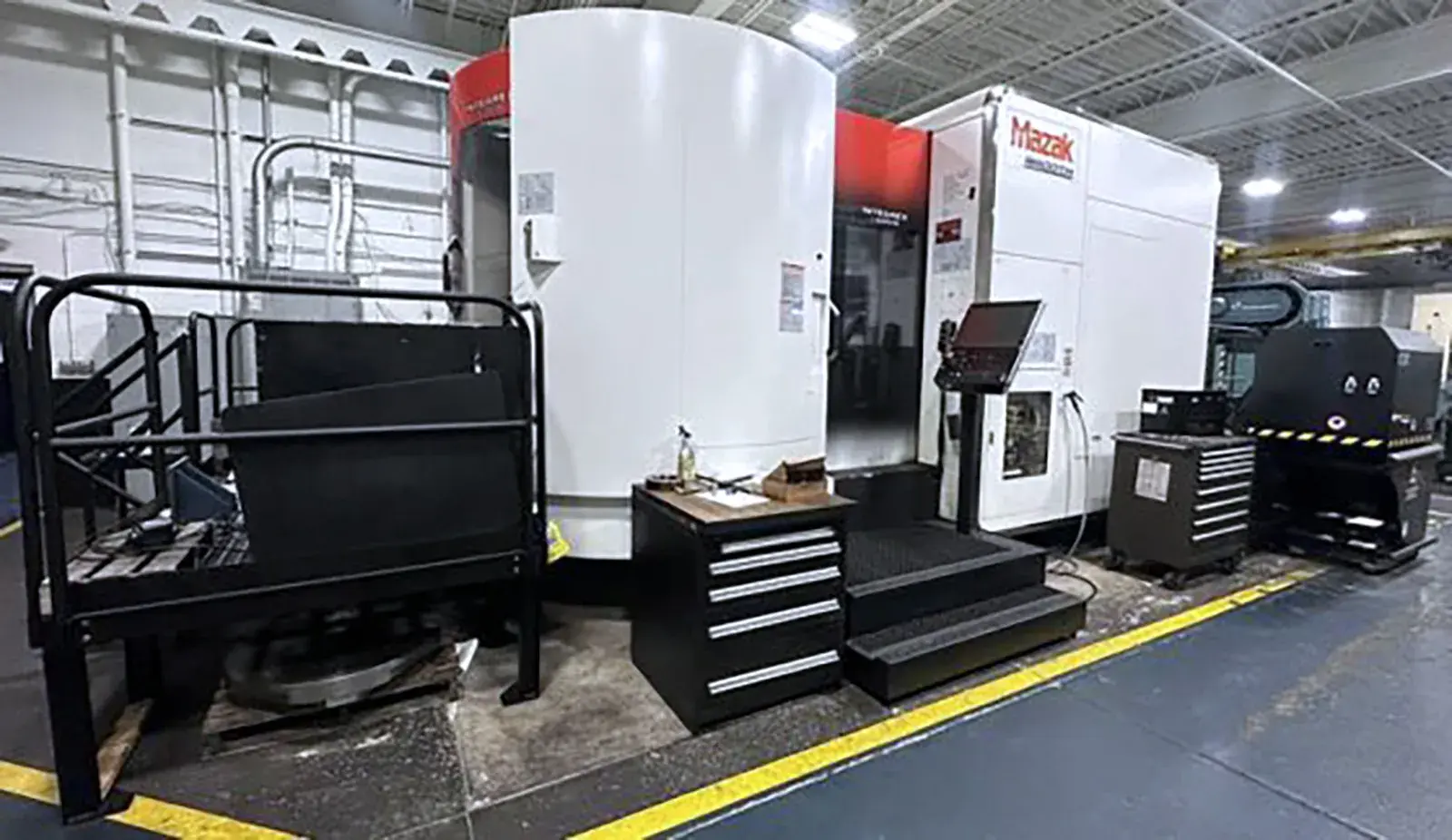

USED 2023 MAZAK INTEGREX I-630V/6

UNDER 1000 Hours| 120 Tool Capacity| 2 Pallet Pool
The Mazak Integrex I-630V/6 5-Axis Machining Center is a high-performance multitasking CNC designed for complex part production. Combining turning, milling, drilling, boring, and AG gear cutting in a single setup, it efficiently machines titanium, steel, and other tough materials. Ideal for aerospace, energy, and heavy industries producing turbine components, valves, and precision structural parts.

Max. Workpiece size: 41.34 in diameter × 39.37 in height
Max. load (evenly distributed): 3,307 lbs
CAT: CAT 50 BIG-PLUS
Max. Spindle Speed: 10,000 RPM
Max. torque (40% ED): 260 ft-lbs
Max. torque (continuous): 183 ft-lbs
Spindle motor (40% ED): 50 HP
Spindle motor (continuous): 40 HP
CHAIN MAGAZINE: 120 TOOL CAT CHAIN MAGAZINE
Max. Tool Diameter: 4.92 in
Max. tool diameter (without adjacent tool): 9.84 in
Max. tool length (from gauge line): 19.69 in
Max. tool weight: 66 lbs
X-Axis Travel: 56.10 in
Y-Axis Travel: 41.34 in
Z-Axis Travel: 41.34 in
B-axis range: -30° to +120°
Y-axis rapid: 2,047 in/min
Z-Axis Rapid: 2,047 in/min
LATHE SPINDLE(TABLE) SPEED: 550 RPM
KEEP BIG-PLUS DIMENSION SPINDLE: (CAT TOOLS ONLY)
B-Axis: 0.0001 DEGREE CONTOURING
Milling Spindle Motor: 37KW (50HP)
Milling Spindle Speed: 10,000 RPM
ATC: 120 TOOL CAT CHAIN MAGAZINE
LATHE SPINDLE (TABLE) MOTOR: 37KW (50HP) 1
Table: 0.0001 DEGREE INCREMENT CONTOURING 1

PALLET CHANGING SYSTEM (2 PALLETS)
CAT 50 Big Plus
Synchronous 5-axis capability
Mill/Turn with 550 RPM Table Rotation speed
120 Tool Capacity
PREPARATION FOR CHIP CONVEYOR REAR RIGHT
1000 PSI SuperFlo Pump
AIR THROUGH MILL SPINDLE SYSTEM - SPINDLE STOPPED
FLOOD COOLANT SYSTEM
RENISHAW PROBING
AUTOMATIC TOOL EYE
MAZATROL SMOOTH AI CNC
Under 1000 Cutting Hours
