Used

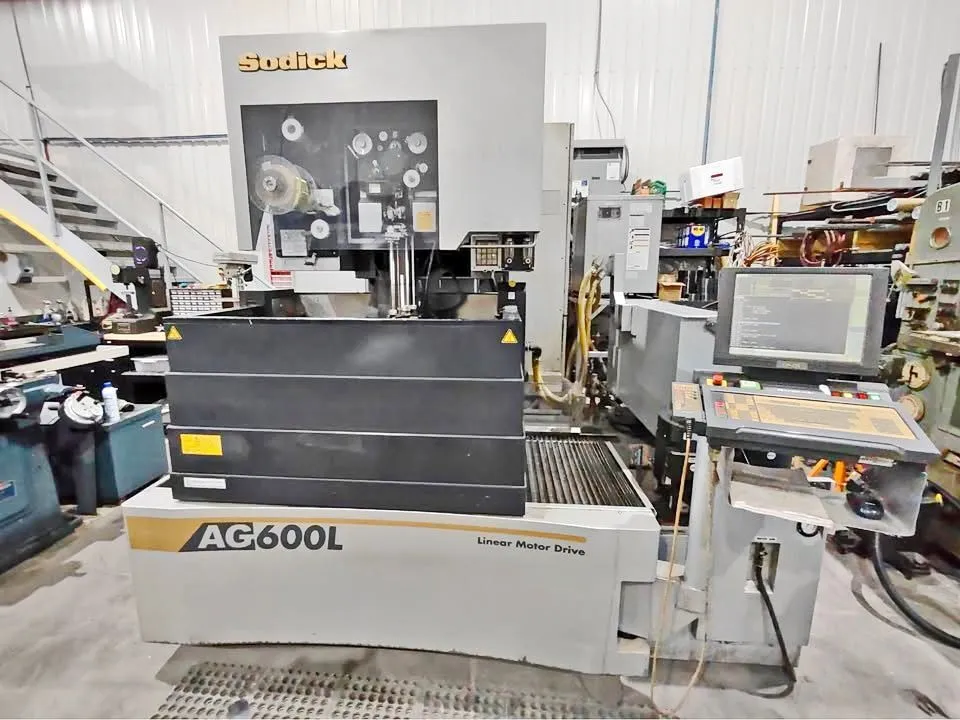

USED 2011 SODICK AG600L

Ontario, Canada
Asking Price
USD $47,500.00
1 available
299Listings|148Followers
Overview
Wire EDM

2011 Sodick AG600l CNC Wire EDM, Linear Motor Drive System, Automatic Wire Threading, Absolute Linear Glass Scales, Wire Tension Servo Control, Triple Dielectric Filtration System, Dynamic Collision Protection System, Wire Ejection Unit

Specs
Power Pack
40 Amps
40 Amps
X-Axis Travel
23.6"
599.44 mm
Y-Axis Travel
15"
381 mm
Z-Axis Travel
15"
381 mm
U x V Axis Travel
4.7"
4.7"
Max Workpiece Size
31.5" X 22.4" X 13.4"
31.5" X 22.4" X 13.4"
Max Workpiece Weight
2,205 lb
1,000.2 kg
Work Tank Size
41.3" X 28"
41.3" X 28"
Wire Diameter
0.004" - 0.012"
0.004" - 0.012"
Max Wire Speed
16.5 in/min.
0.4 m/min.
Submerged (Yes/No)
Yes
Yes
Taper Angle
±25°
±25°
Auto Threading (Yes/No)
Yes
Yes
Control
CNC (Sodick LN2W)
CNC (Sodick LN2W)
Dimensions
103" X 97" X 94"
103" X 97" X 94"
Weight
10,900 lb
10,900 lb
Equipped With

Linear motor drive system
Automatic wire threading (Super Jet AWT)
15" touchscreen
Absolute linear glass scales
Ceramic work table components
Electrolysis-free machining circuit
Wire tension servo control
3-sided automatic drop work tank
Triple dielectric filtration system
Automatic dielectric fluid level control
Dynamic collision protection system
Wire ejection unit
Slide-plate flushing system
USB / LAN / CF card data interface
