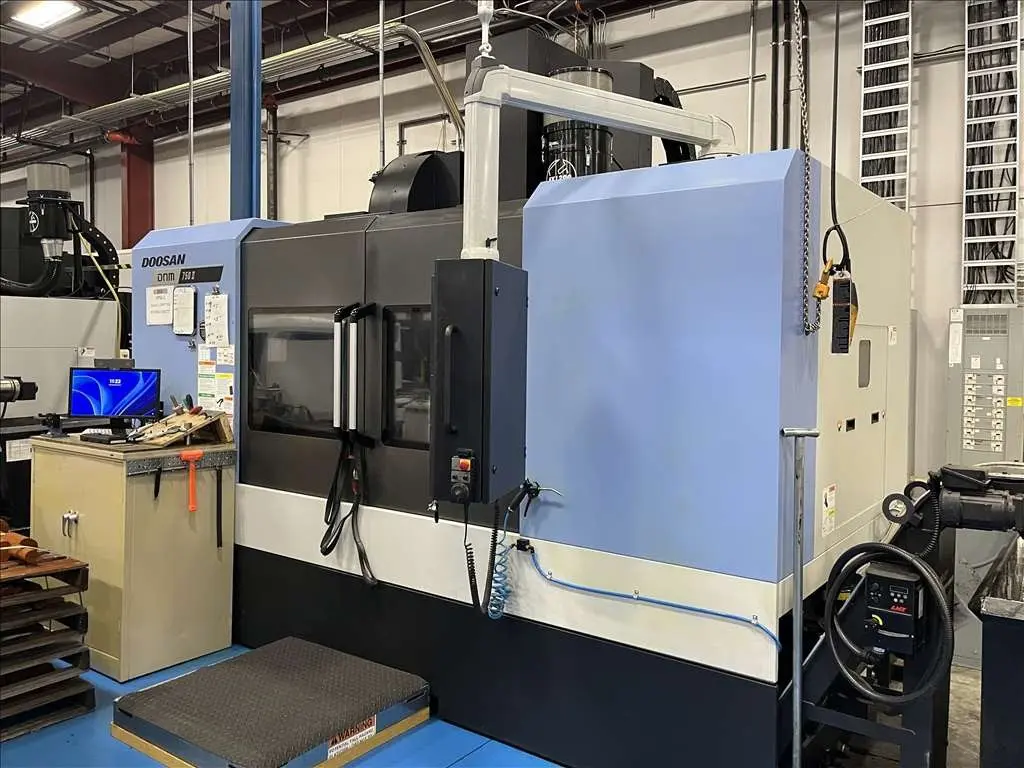

USED 2022 DOOSAN DNM-750II
Overview
Description
With Chip conveyor, Fanuc I-Series Control, 15" Color monitor, 12000 RPM & CAT 40 spindle
Specifications
| X | 1,630 mm | 64.173" |
|---|---|---|
| Y | 762 mm | 30" |
| Z | 650 mm | 25.591" |
| RPM | 12,000 RPM | 12,000 RPM |
| Taper | BIG PLUS 40 | BIG PLUS 40 |
| # ATC | 30 | 30 |
| # Axis | 3 | 3 |
| Control | CNC | CNC |
| Dimensions | 4.9 x 3.4 x 3.2 meters | 4.9 x 3.4 x 3.2 meters |
| Weight | 15000 Kg | 15000 Kg |
TABLE LENGTH …………………………………………… 64″
TABLE WIDTH ……………………………………………… 30″
X-AXIS TRAVEL ………………………………………… 64.2″
Y-AXIS TRAVEL ………………………………………… 30″
Z-AXIS TRAVEL ………………………………………… 25.6″
TABLE LOAD ………………………………………………… 3306 LBS
RAPID TRAVEL RATE XYZ …………………… 1181, 1181, 945 IPM
SPINDLE SPEED ………………………………………… 12,000 RPM
DISTANCE TABLE TO SPINDLE ………… 5.9” TO 31.5”
SPINDLE MOTOR ………………………………………… 20 HP
SPINDLE TAPER ………………………………………… CAT 40
TOOL CAPACITY (ATC) ………………………… 30
MODEL ……………………………………………………………… DNM 750-II
YEAR ………………………………………………………………… 2022
DIMENSIONS (LWH) ………………………………… 193” X 136” X 125”
WEIGHT …………………………………………………………… 29,700 LBS.
POWER REQUIREMENTS …………………………… 220 V, 3 Ph, 60 Hz, 43 kVA
Equipped With
30 POSITION SIDE MOUNT TOOL CHANGER
DOOSAN FANUC I-PLUS SERIES CNC CONTROL
4th AXIS OPTION w/NIKKEN CNC260L FA-M ROTARY TABLE & TAILSTOCK
MAGNETIC CHIP CONVEYOR
DATA SERVER 1 GB
OIL COOLER
CABINET A/C
AUTO POWER OFF
LOW HOURS
