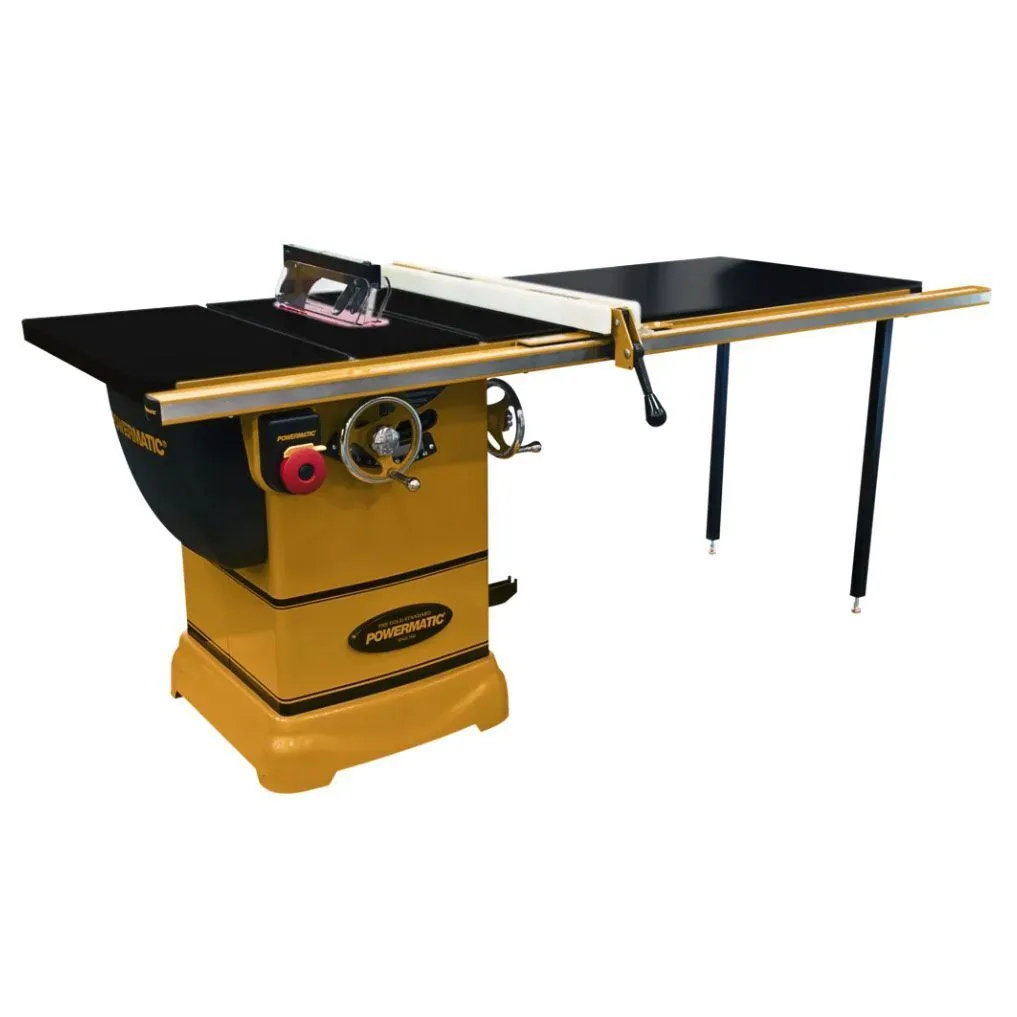

The Powermatic PM1000T Table Saw is designed for professional and advanced home woodworking shops that require precision cutting, flexible electrical compatibility, and reduced table maintenance in a compact footprint. Operating on 115/230V single-phase power, this table saw provides dependable performance for rip and crosscut applications without requiring industrial electrical service.
| Blade Diameter | 10" | 254 mm |
| Arbor Diameter | 0.625" | 15.875 mm |
| Arbor Speed | 4200 rpm | 4,200 RPM |
| Maximum Depth of Cut | 3.125" | 79.375 mm |
| Maximum Depth of Cut at 45 Degrees | 2.125" | 53.975 mm |
| Maximum Rip Right of Blade | 30" | 762 mm |
| Maximum Rip Left of Blade | 12" | 304.8 mm |
| Table in Front of Saw Blade at Maximum Depth of Cut | 10" | 254 mm |
| Maximum Width of Dado | 0.8125" | 20.638 mm |
| Maximum Diameter of Dado | 8" | 203.2 mm |
| Table Height from Floor | 34.25" | 869.95 mm |
| Table Type | Cast Iron | Cast Iron |
| Dust Collection Minimum CFM Required | 350 | 350 |
| Motor Power | 1-3/4 HP 1phase 115/230V | 1-3/4 HP 1phase 115/230V |
| Miter Gauge Type | T-Slot with Stops | T-Slot with Stops |
| Dimensions | 43 x 83 x 44 in. | 43 x 83 x 44 in. |
| Weight | 464.8 lbs. | 464.8 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR – For Commercial Use
WARRANTY: 2 YEAR – For Industrial Purposes
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
