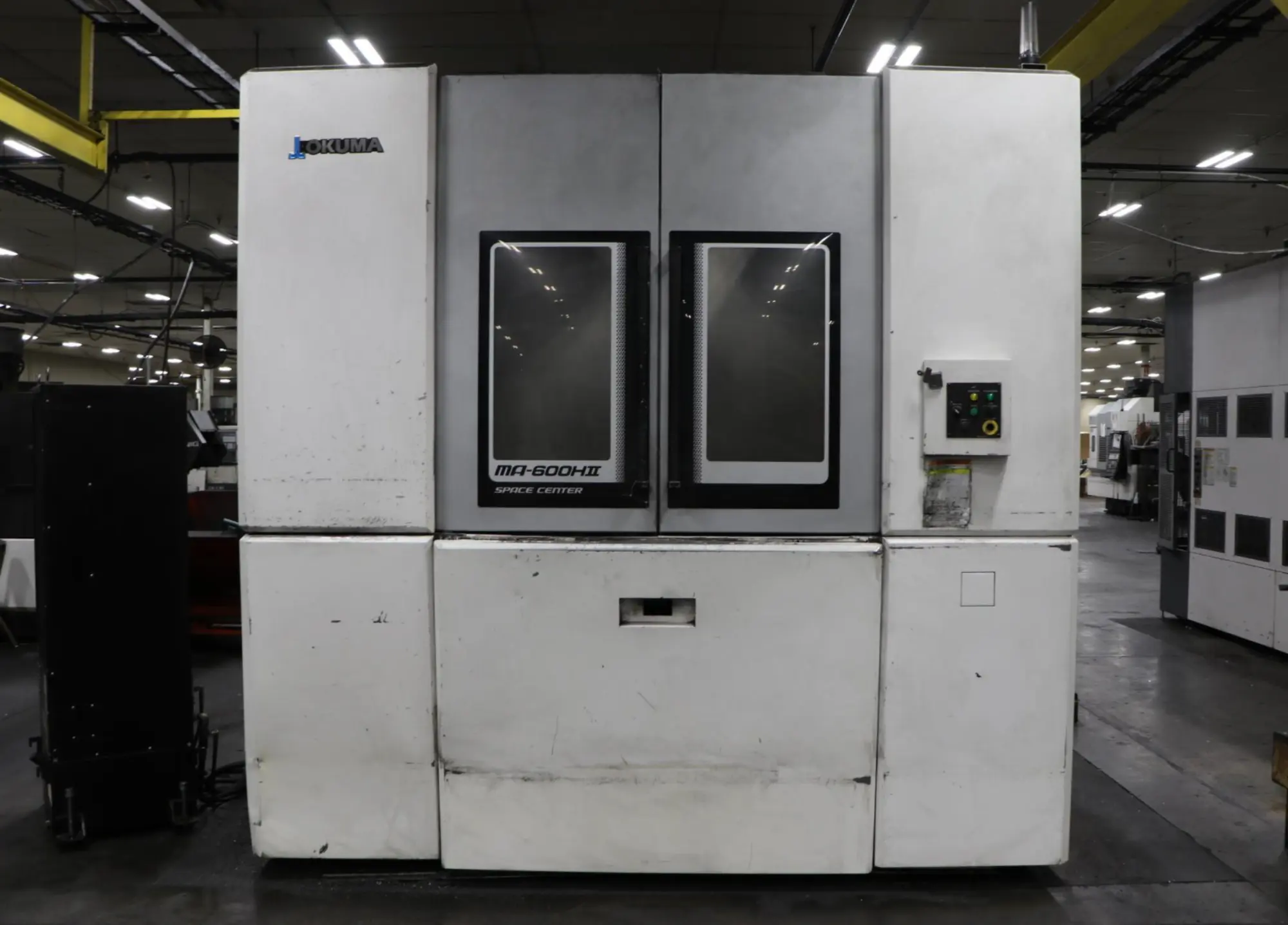

Used Horizontal Machining Center offers a spacious 39.37″ x 35.43″ x 39.37″ machining volume, 60-tool capacity, and powerful 50 HP spindle with 6,000 RPM. Features OSP-P300MA Control, MP Systems Coolant, and more.
| X | 39.37" | 1,000 mm |
| Y | 35.43" | 899.92 mm |
| Z | 39.37" | 1,000 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT 50 | CAT 50 |
| Pallet-W | 24.8" | 629.92 mm |
| Pallet-L | 24.8" | 629.92 mm |
| # Axis | 3 | 3 |
| Dimensions | 182″ x 130″ x 118″ | 182″ x 130″ x 118″ |
| Weight | 35,000 lbs | 35,000 lbs |
Max Workpiece Size: 41.34″ X 47.24″
Pallet Size: 24.80″ X 24.80″
Number of Pallets: 2
Rapid Traverse: 2,362 IPM
Tool Capacity: 60
Machining Volume: 39.37″ X 35.43″ X 39.37″
Travels:
X-axis: 39.37″
Y-Axis: 35.43″
Z-Axis: 39.37″
Max Workpiece Weight: 2,645 lbs
Spindle Power: 40 HP
Spindle Taper: CAT50
Spindle speed: 6,000 RPM
Spindle Power: 50 HP
Electrical Requirements: 220/480, 3PH, 60HZ
Dimensions: 182″ x 130″ x 118″ (approx)
Weight: 35,000 lbs (approx)
OSP-P300MA Control
MP Systems Coolant System
LNS Turbo Magnetic Chip Conveyor
Showa Thermo Tuner
Through Spindle Coolant
