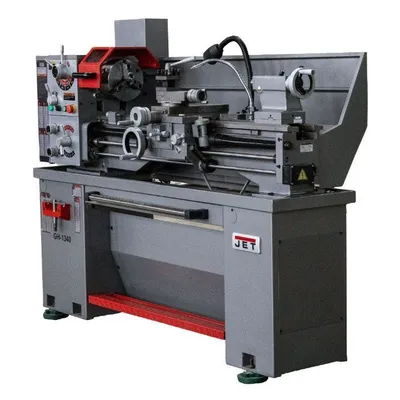

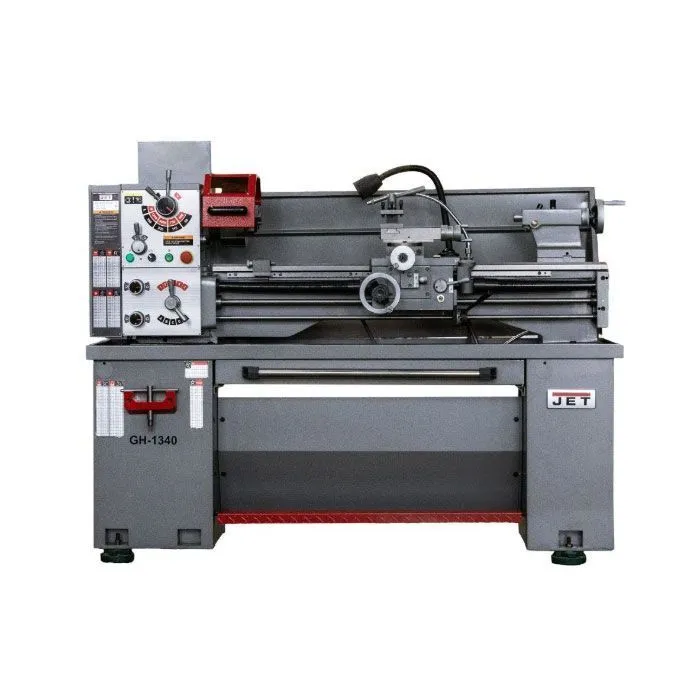

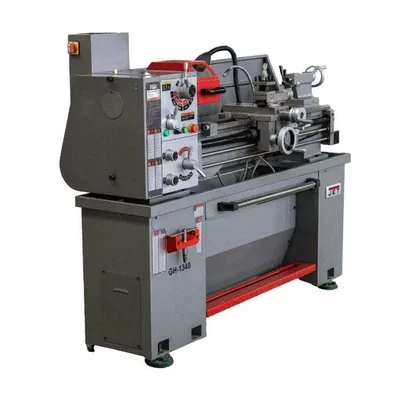

The JET GH-1340 Gear Head Lathe is built for shops that demand precision, durability, and operator safety without compromise. Designed for MRO, fabrication, and precision machining environments, this 13” x 40” manual lathe delivers powerful cutting performance, industry-leading safety features, and the support backing of JET’s nationwide service network.
| Lathe Type | Geared Head | Geared Head |
| Swing Over Bed | 13" | 330.2 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 2" | 50.8 mm |
| Spindle Nose | D1-5 | D1-5 |
| Number Of Spindle Speeds | 8 | 8 |
| Range Of Speeds | 70–2000 | 70–2000 |
| Number of Inch Threads | 38 | 38 |
| Motor | 2 hp | 1.5 kW |
| Phase | 1 | 1 |
| Voltage | 230v | 230v |
| Dimensions | 79 x 28-1/2 x 30 in. | 79 x 28-1/2 x 30 in. |
| Weight | 1,236 lbs. | 1,236 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts

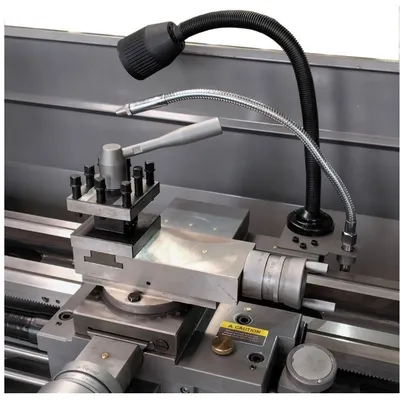

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
