NEW JET GH-1440-3

Florida, United States
Asking Price
USD $20,499.00
1 available
3,831Listings|9Followers
Overview
Gap Lathes

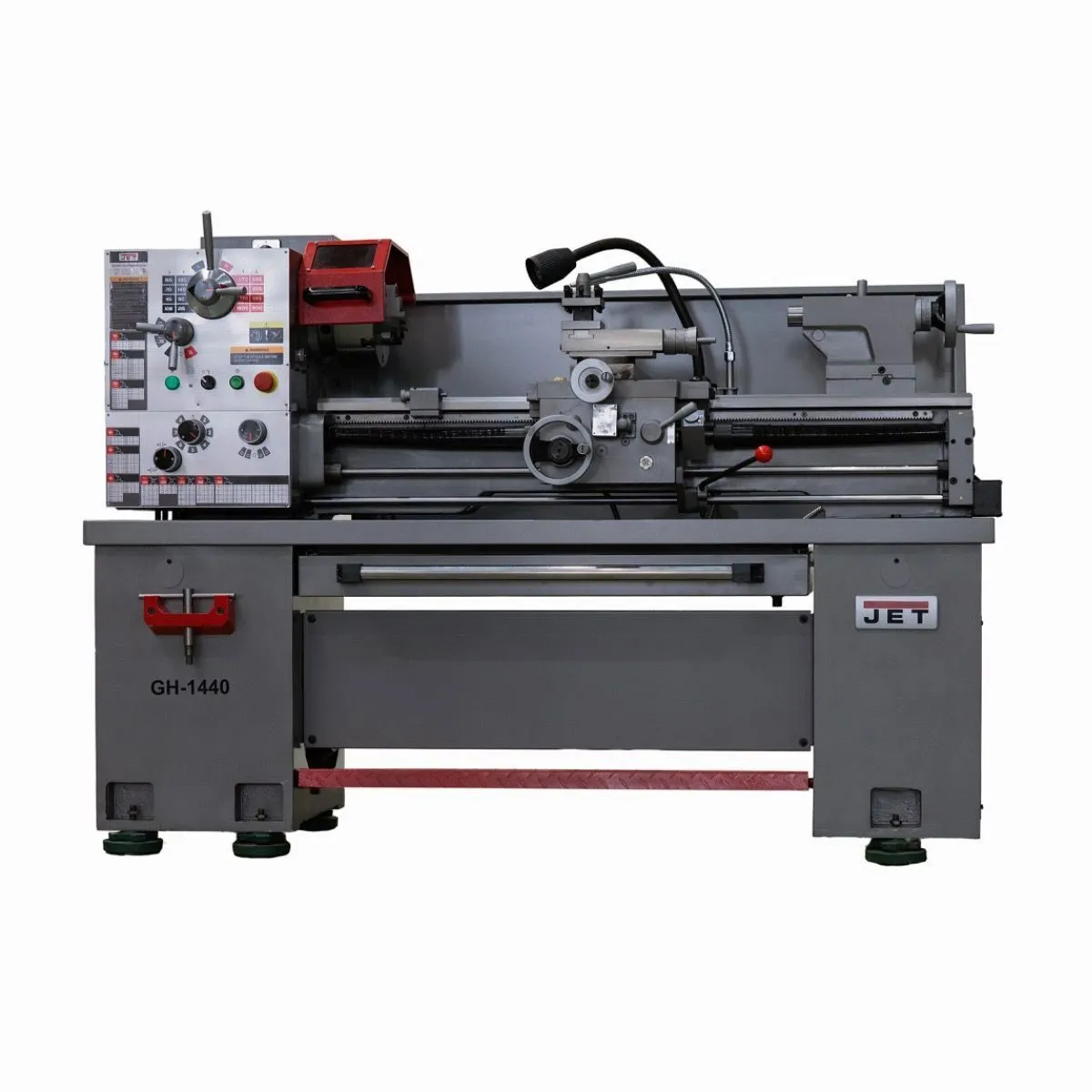

The JET GH-1440-3 14" x 40" Gear Head Engine Lathe is engineered for shops that require the durability of a traditional geared head lathe with the added control and torque consistency of 3-phase power.

Specs
Lathe Type
Geared Head
Geared Head
Swing Over Bed
14"
355.6 mm
Distance Between Centers
40"
1,016 mm
Spindle Bore
2"
50.8 mm
Spindle Nose
D1-5
D1-5
Number Of Spindle Speeds
8
8
Range Of Speeds
45–1800
45–1800
Number of Inch Threads
38
38
Motor
3 hp
2.2 kW
Phase
3
3
Voltage
230v
230v
Dimensions
79 x 28-1/2 x 30 in.
79 x 28-1/2 x 30 in.
Weight
1,236 lbs.
1,236 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
