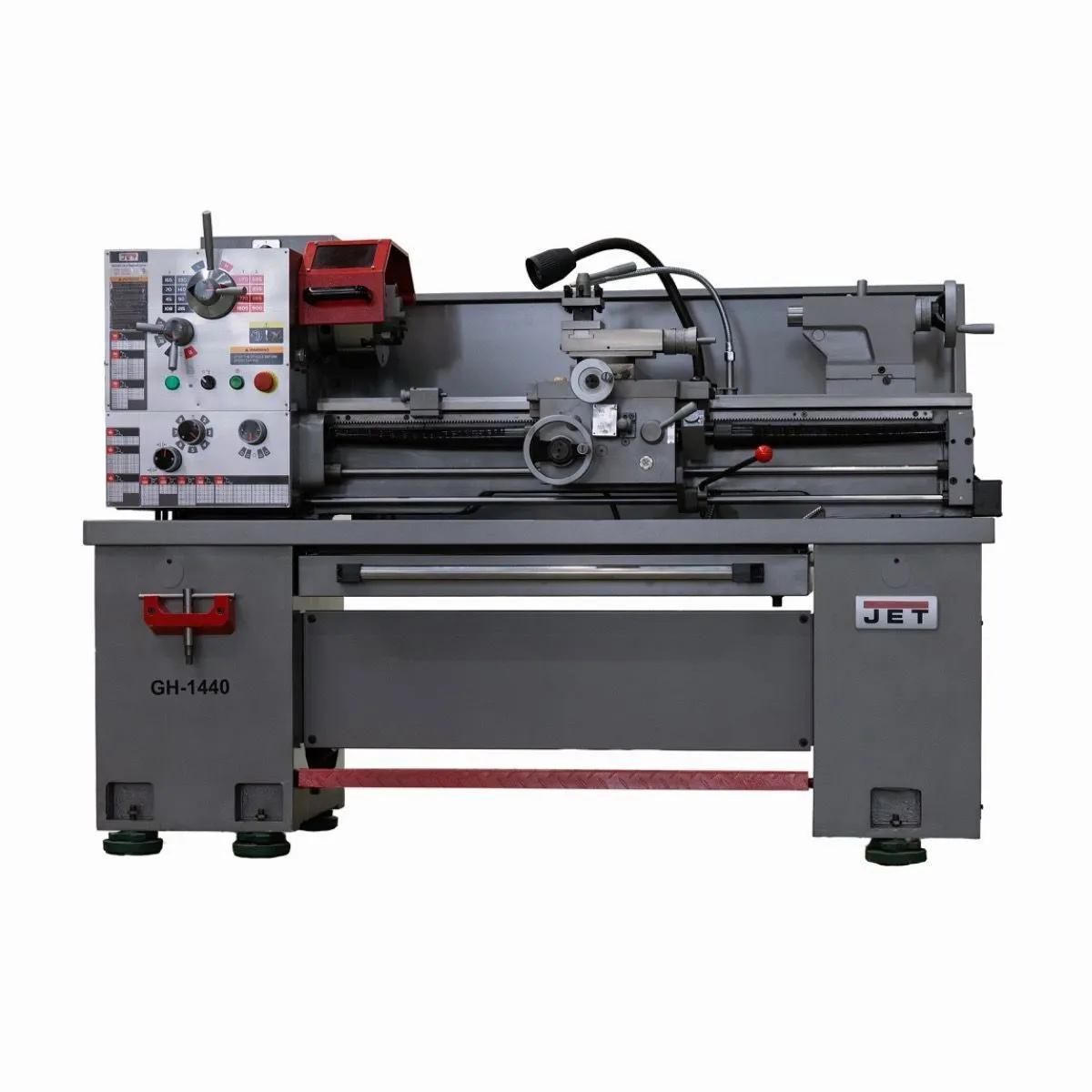

The JET GH-1440-3 14" x 40" Gear Head Engine Lathe is engineered for shops that require the durability of a traditional geared head lathe with the added control and torque consistency of 3-phase power.
| Lathe Type | Geared Head | Geared Head |
| Swing Over Bed | 14" | 355.6 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 2" | 50.8 mm |
| Spindle Nose | D1-5 | D1-5 |
| Number Of Spindle Speeds | 8 | 8 |
| Range Of Speeds | 45–1800 RPM | 45–1800 RPM |
| Number of Inch Threads | 38 | 38 |
| Motor | 3 hp | 2.2 kW |
| Phase | 3 | 3 |
| Voltage | 230v | 230v |
| Dimensions | 79 x 28-1/2 x 30 in. | 79 x 28-1/2 x 30 in. |
| Weight | 1,236 lbs. | 1,236 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
