NEW 2020 VTA KL 70-5

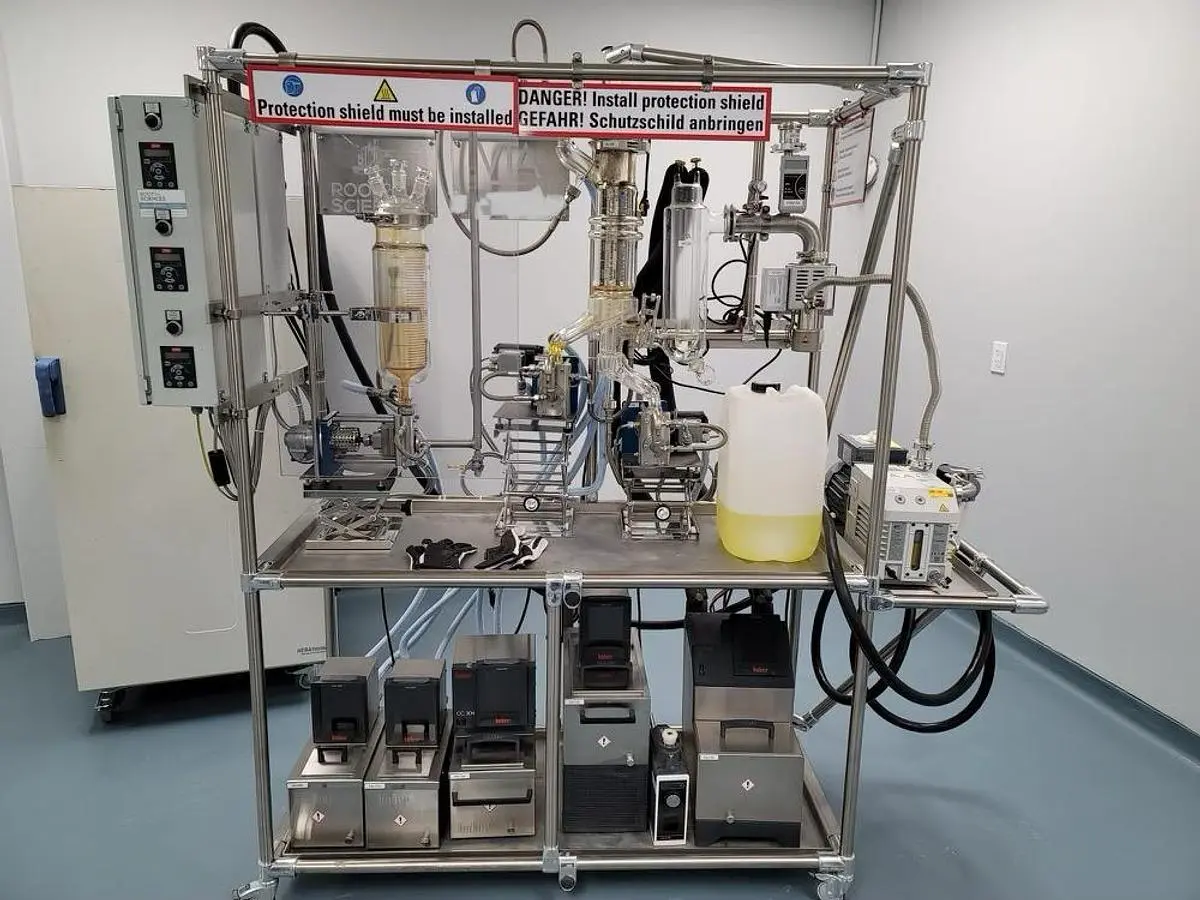

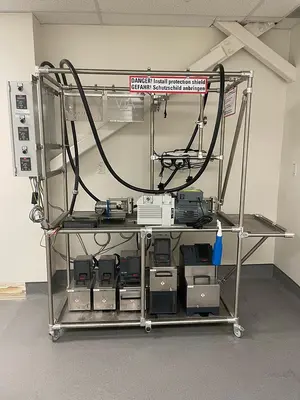

Like-new, used for only a few commissioning trials VTA KL 70-5 Distillation System with all Huber accessories.
Brand new direct from VTA today is over $180,000
Perfect for first-time operators looking to achieve 5-10 liters of distillation per cycle. The unit is upgraded with state-of-the-art digital chillers and heaters and comes CE and ISO certified.
FEATURES
·       Output: 1,000-1,500 mI per hour
·       Continuous Feed: Patented design allows for uninterrupted operation by continuously feeding cannabis oil into the feed tank and dispensing finished product without breaking vacuum.
·       Fully Heated: The VKL70-5 RS is fully-jacketed system, heated from start to finish—no need for heating tape or heat guns to keep product moving through the system.
·       Fluid Control: Integrated pumps provide full operator control over feed and discharge rates instead of relying on gravity type drip feed systems
·       Upgraded Heating and Cooling: Superior all-digital Huber chillers and circulation heat units with all pumps, heaters and chillers and CE certified.
·       Performance Verification: Tested leak-free and turnkey ready for immediate use
·       Expert On-Site Training: Optional on-site installation and training from an expert chemist with hundreds of hours of hands-on experience. See his training video here:  https://youtu.be/BhAAhz6ozOE?si=jekGS_lZKni9EdHi

SPECIFICATIONS
Electrical Supply:           Single Phase (2 Hot Wires / 1 Ground Wire)
240V / 60A / 60 Hz
2 Hot Wires / 1 Ground Wire
Dimensions:                    (L x W x H) 70.1” x 38.6” x 84.7”
Weight:                             580 Kg (Gross) / 320 Kg (Net)

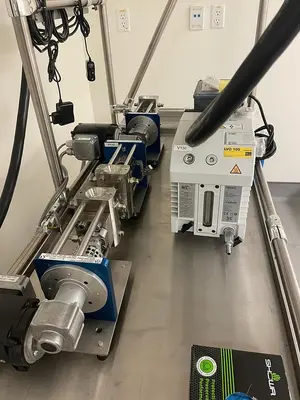

Roughing Pump:            Leybold Db6
Chiller:                              Huber
Heater:                             Huber

CERTIFICATIONS
AD 2000-Merckblatt HP 0 (Pressure vessels)
ISO 14001 (Environmental management system)
ISO 50001 (Energy management system)
