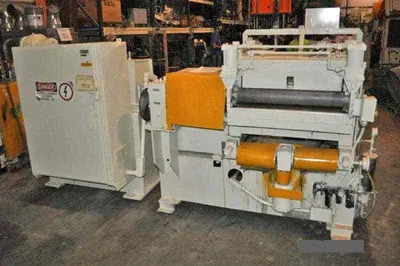

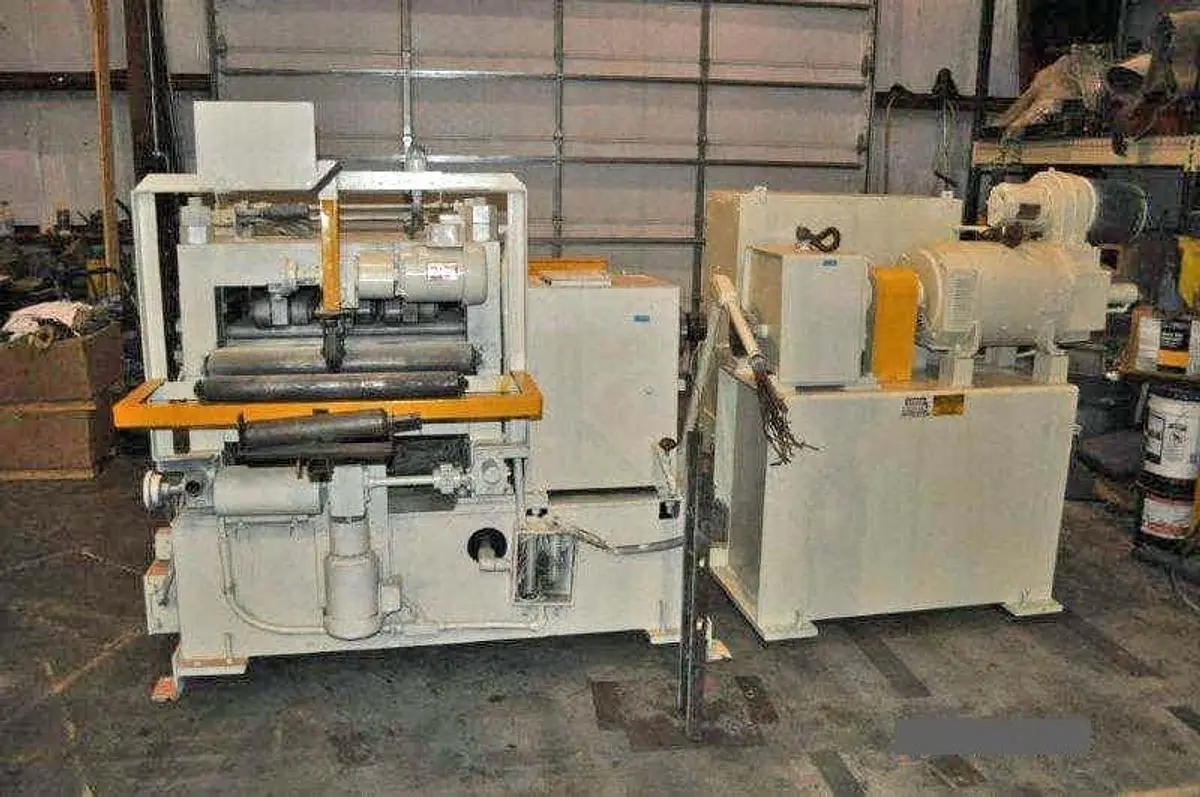

28” x 0.071” Herr-Voss Leveler

Specifications:
Manufacturer: Herr-Voss
Max Width: 28”
Gauge Range: 0.028” - 0.071” Mild Steel
Line Direction: Left To Right
Nameplate Capacity: 18” Wide x 0.028” - 0.071” @ 140,000 PSI Yield
Note: 18” Width Capacity Is Based On Overall Spacing Of Backups. Leveler Will Accept 28” Wide Material

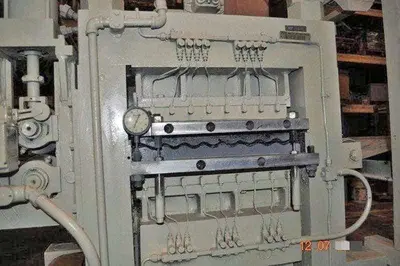

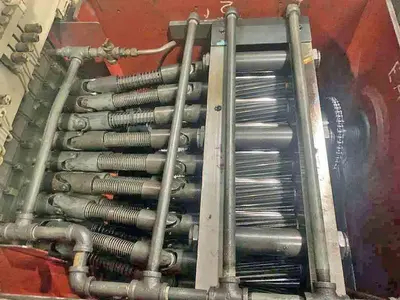

Work Rolls: 17 (8 Over 9)
Work Roll Size: 1.500” Diameter x 30” Face

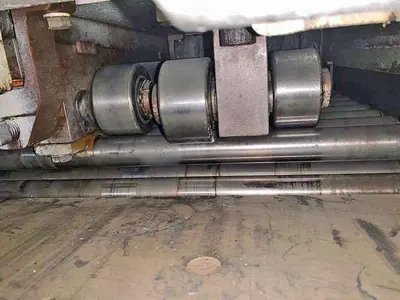

Backup Rolls: (3) Flights Of Backups
Center Backup: Manually Adjustable
Entry Pinch Rolls: 4.5” Diameter
Line Speed: 40 - 80 FPM

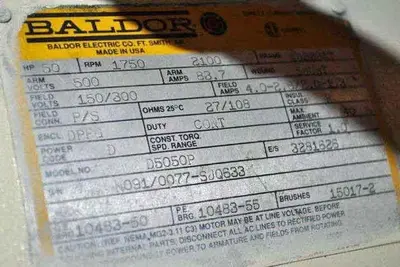

Main Motor: 50 HP Baldor DC Motor
Motor Speed: 1750 / 2100 RPM
Voltage: 500 V

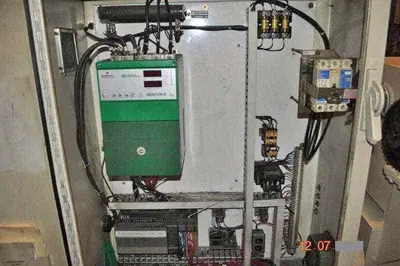

Variable Speed Control

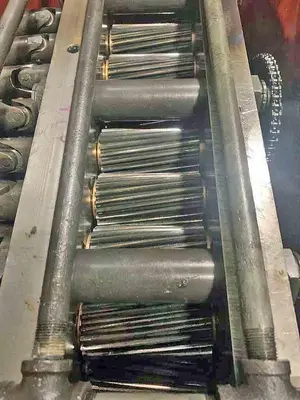

Gearbox: Rebuilt In 1999
Reducer: Philadelphia In-Line Reducer With 3.88:1 Ratio
Operator Controls: Less Operators Control Panel
Overall Size:

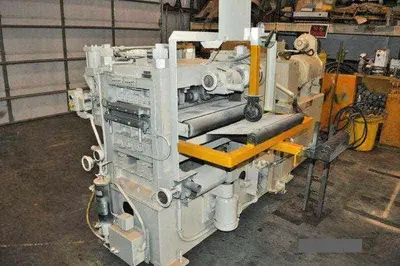

Leveler: 73” L x 50” W x 68” H

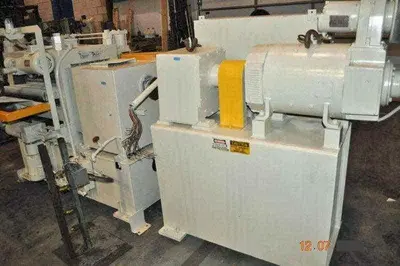

Drive: 83” L x 40” W x 62” H
