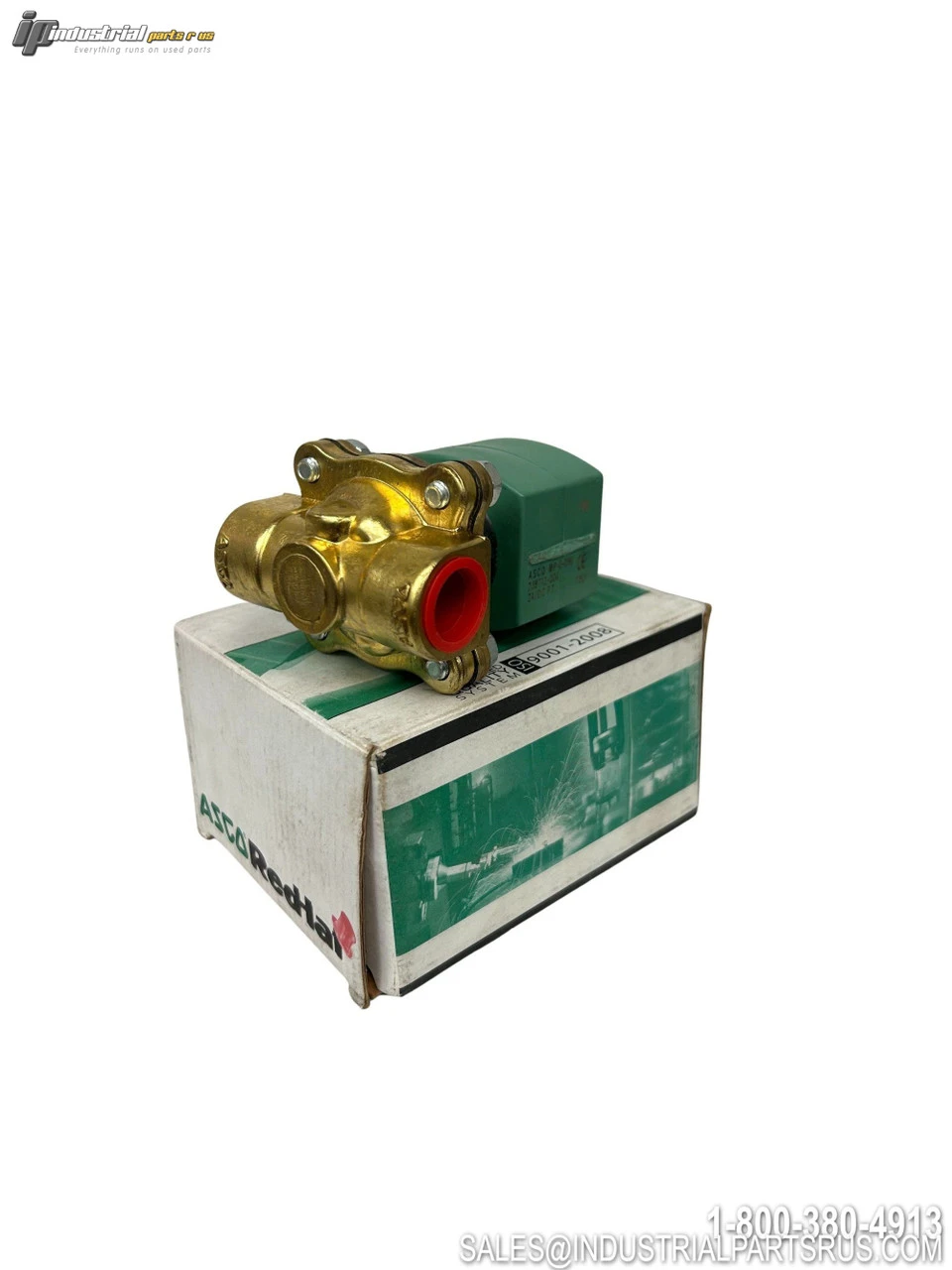

USED ASCO SC8210G002

The Asco SC8210G002 is a Series 8210 pilot operated general service solenoid valve designed for reliable fluid control in industrial applications. This 2-way normally closed valve features brass construction and is suitable for air, water, and light oil service with excellent corrosion resistance and durability.
Specification
Value
Brand
Asco
Model/Part Number
SC8210G002
Series
8210
Type
Solenoid Valve
Configuration
2-Way
Valve Operation
Normally Closed
Actuation
Pilot Operated
Pipe Size
1/2 NPT
Orifice Size
5/8 in
Cv Flow
4
Body Material
Brass
Seal Material
Buna-N (NBR)
Connection Type
Female Threaded (FPT)
Coil Voltage
See label - multiple options available
Operating Pressure
5-200 psi (air), 5-150 psi (water), 5-135 psi (oil)
Max Temperature
150°F to 180°F
Enclosure Rating
NEMA 1, 2, 3, 3S, 4, 4X
Media Compatibility
Air, Water, Light Oil
Construction
DIN Connection
We warranty all items for 30 days from date of purchase.

SKU: AI0555
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Asco
Enclosure Type: NEMA 1, 2, 3, 3S, 4, 4X
Part Number: SC8210G002
Shelf: K-54
Model: SC8210G002
MPN: SC8210G002
Type: Solenoid Valve
