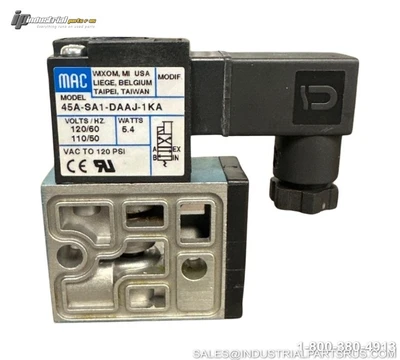

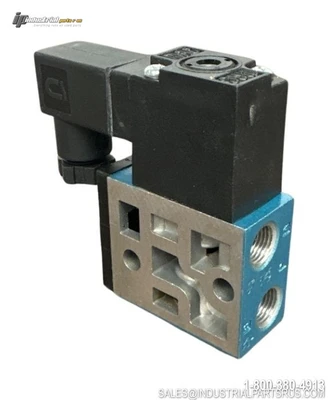

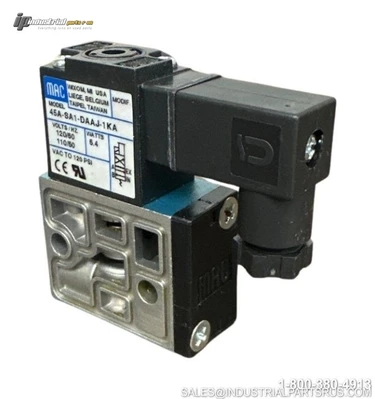

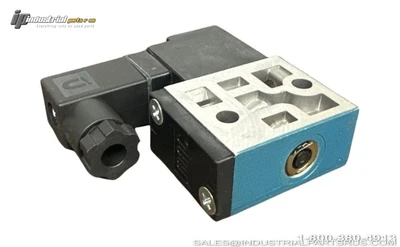

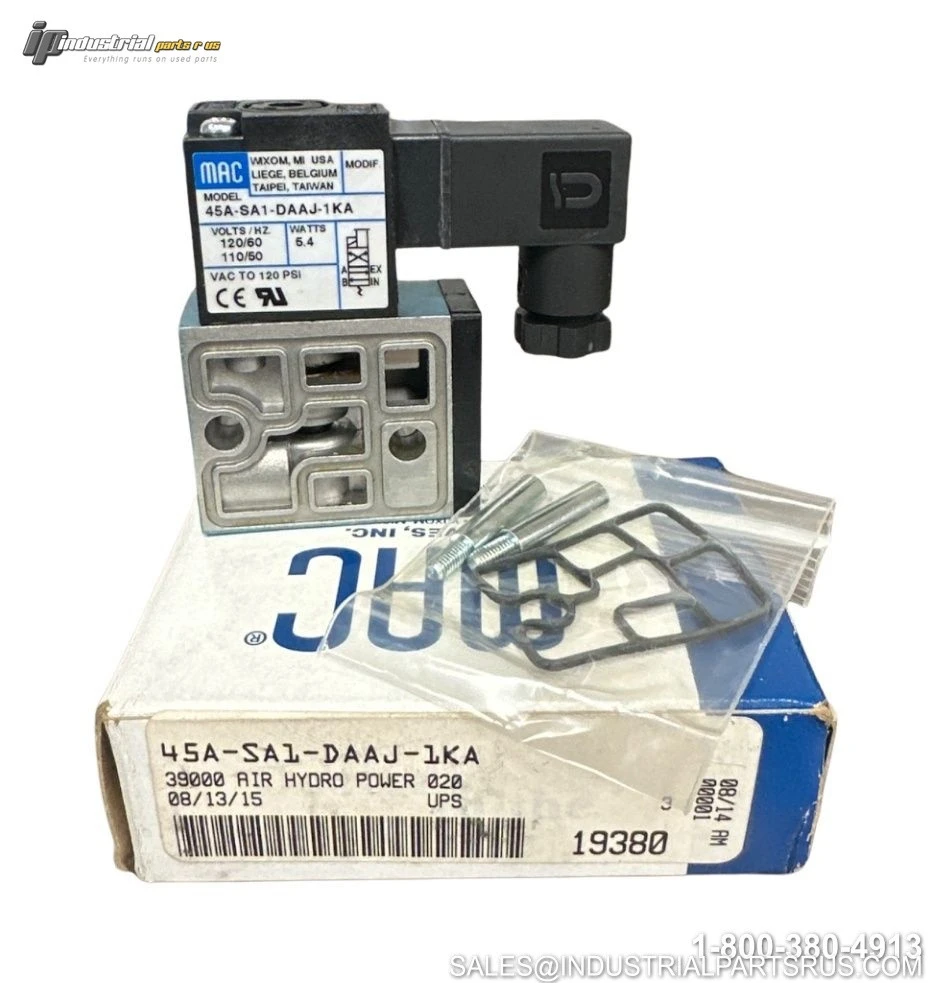

NEW MAC 45A-SA1-DAAJ-1KA

The Mac 45A-SA1-DAAJ-1KA is a direct solenoid operated 4-way poppet valve from the Mac 45 Series. This valve features a short stroke solenoid, balanced poppet and conical seats designed for high shifting forces, fast response times, and long service life. The valve operates on 120VAC and is suitable for pneumatic control applications requiring precise and reliable operation.
Specification
Value
Brand
Mac
Model/Part Number
45A-SA1-DAAJ-1KA
Series
45
Valve Type
4-Way Direct Solenoid Operated Poppet Valve
Coil Voltage
120VAC
Port Size
1/8" NPTF
Pressure Range
Vacuum to 120 PSI
Operating Temperature
0°F to 120°F (-18°C to 50°C)
Valve Function
4-Ports, 2-Positions
Operation Type
Direct Operated
Manual Operator
Non-Locking Recessed
Media
Compressed Air, Inert Gases, Vacuum
Lubrication
Not Required
We warranty all items for 30 days from date of purchase.

SKU: AI0569
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 4.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Mac
Part Number: 45A-SA1-DAAJ-1KA
Shelf: A-15
Model: 45A-SA1-DAAJ-1KA
MPN: 45A-SA1-DAAJ-1KA
Type: Solenoid Valve
