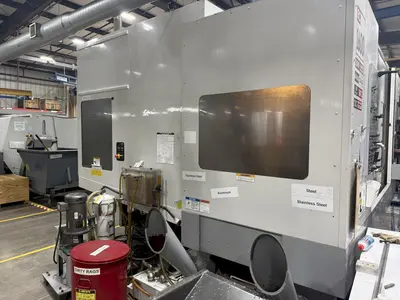

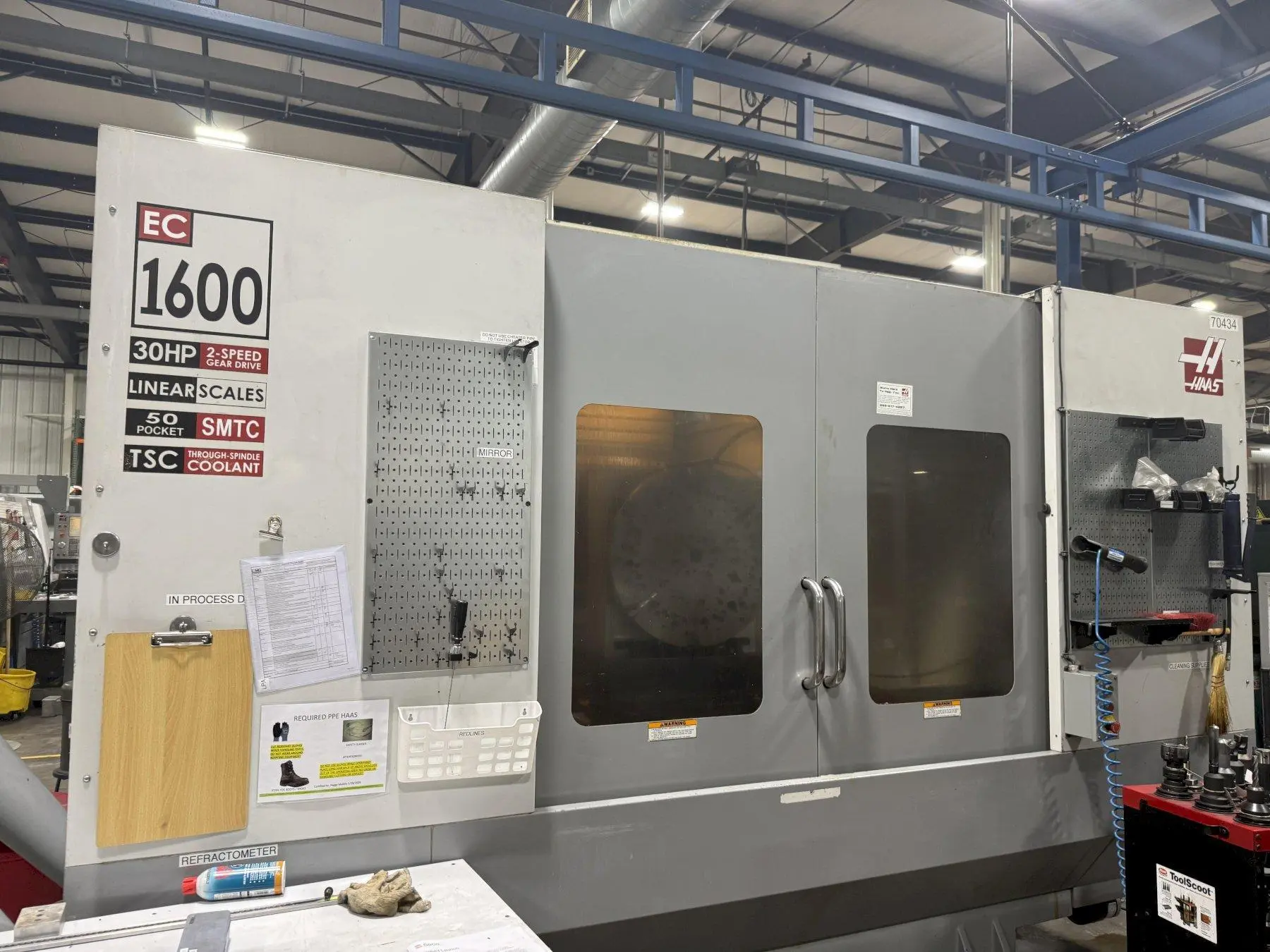

USED 2006 HAAS EC-1600-4X

Built In 30" Rotary Table

2-Speed Gearbox

Linear Scales

50 Station Tool Changer

Coolant Thru Spindle

Tool Touch Setter
The Haas EC-1600-4x is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes
Control Type: Haas
# Axis: 4
Table Size: 64" x 32"
Pallet Diameter: 30" Round Diameter
Pallet Load Capacity: 10,000 pounds
Pallet Indexing (B-Axis): 0.001°
X-Axis Travel: 64"
Y-Axis Travel: 50"
Z-Axis Travel: 32"
Rapid Traverse Rate (X/Y/Z): 600 ipm
Spindle Taper: CAT 50
Spindle Speed: 7,500 rpm
Spindle Motor (HP): 30 hp
Coolant Thru Spindle: yes
Tool Changer Capacity: 50
Machine Weight: 30,000 pounds

- Haas CNC Control
- Built-in Rotary Table (30")
- Full B-axis 0.001°

- Chip Augers

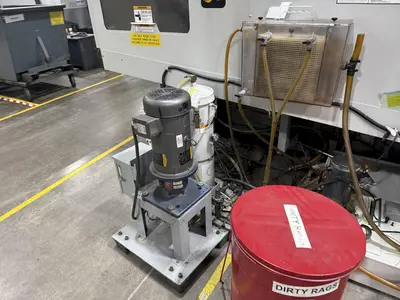

- Coolant Tank & Pumps
- Coolant Thru Spindle
- Linear Scales
- 2 Speed Gear Box
