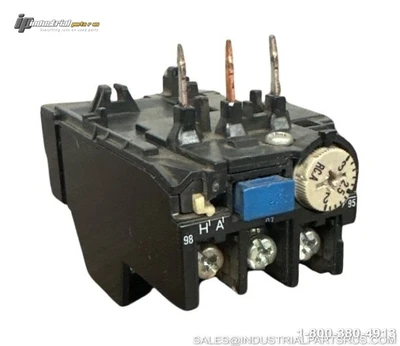

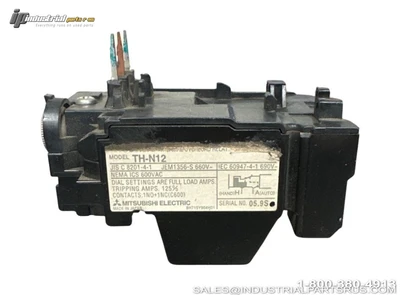

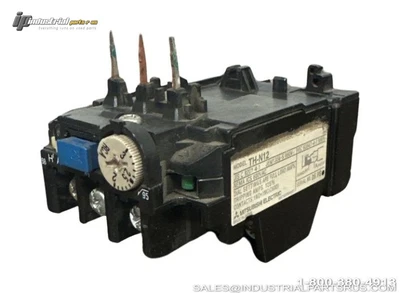

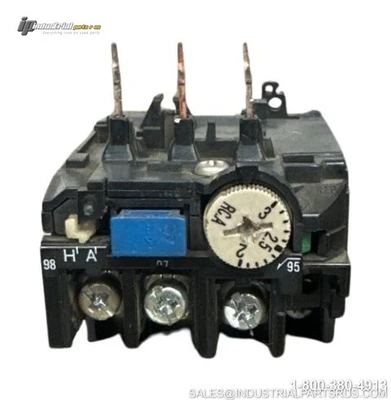

USED MITSUBISHI TH-N12

The Mitsubishi TH-N12 is a thermal overload relay designed to provide comprehensive motor protection against overload conditions. This compact unit features adjustable current settings with a tripping characteristic of 125% of full load amps, manual and automatic reset capabilities, and visual trip indication. Part of the TH-N series, it offers reliable motor protection for industrial applications with compliance to international standards.
Specification
Value
Brand
Mitsubishi
Model/Part Number
TH-N12
Product Type
Thermal Overload Relay
Series
TH-N Series
Current Rating
0.12-11 A
Maximum Amperage
11 A
Number of Poles
3
Number of Phases
3
Insulation Voltage (IEC)
690V AC
Insulation Voltage (JEM)
660V AC
Insulation Voltage (NEMA)
600V AC
Auxiliary Contacts
1 NO + 1 NC
Contact Configuration
1 NO + 1 NC
Contact Rating
C600 (6A 600V AC)
Trip Current
125% of Dial Setting
Reset Type
Manual/Automatic Switchable
Application
Motor Protection
Protection Properties
Overload Protection
Standards Compliance
JIS C 8201-4-1, IEC 60947-4-1, JEM 1356-S
Mounting Type
Contactor Mount or Independent Mount
Weight
100-120g
Protection Class
Class 10
We warranty all items for 30 days from date of purchase.

SKU: AI0567
UPC: 679523686208
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Manufacturer: Mitsubishi
Part Number: TH-N12
Shelf: C-19 TUB 4
Model: TH-N12
MPN: TH-N12
Type: Overload Relay
Mounting Style: Din Mount
Current Rating: 2-3 A
Application: Motor Protection
