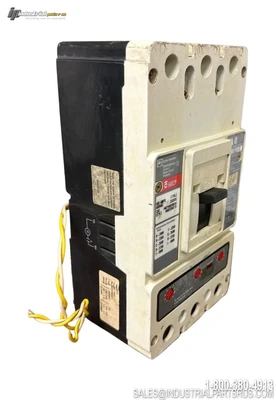

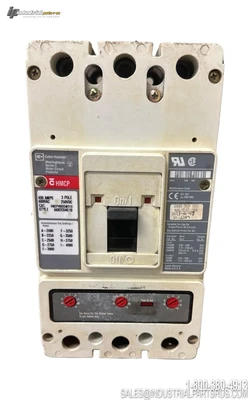

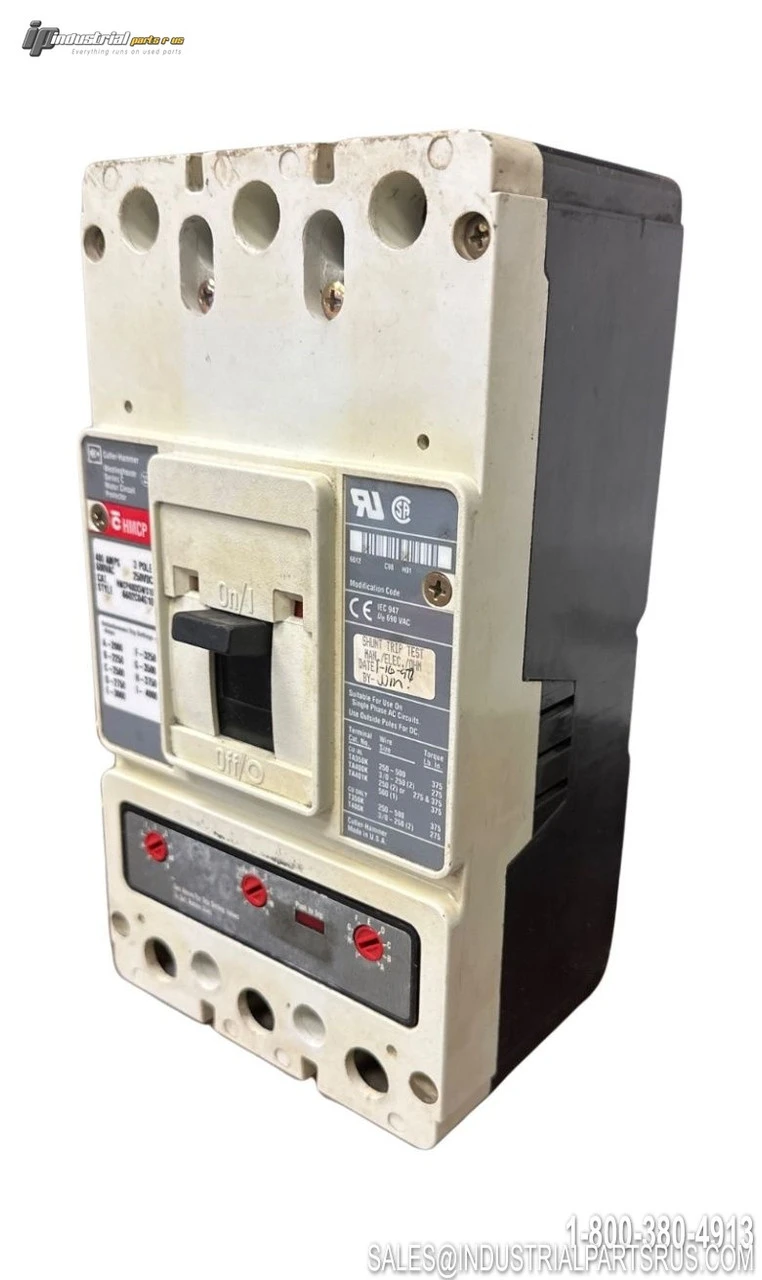

USED CUTLER-HAMMER HMCP400X5WS10

The Cutler-Hammer HMCP400X5WS10 is a 400 ampere motor circuit protector featuring magnetic-only instantaneous protection designed for motor control applications. This unit includes an integrated SNT3P11 shunt trip that provides remote tripping capability at 110-240VAC or 110-125VDC voltage levels.
Specification
Value
Brand
Cutler-Hammer
Model/Part Number
HMCP400X5WS10
Manufacturer
Eaton Corporation
Current Rating
400 Amperes
Poles
3
Frame Type
K Frame
Voltage Rating AC
600VAC
Voltage Rating DC
250VDC
Trip Setting Range
2000-4000 Amperes
Protection Type
Magnetic Only (Instantaneous)
NEMA Starter Size
5
Motor FLA Range
153.9-326.9 Amperes
Shunt Trip Model
SNT3P11
Shunt Trip Voltage
110-240VAC or 110-125VDC
Frequency
50/60 Hz
Terminal Type
Line and Load Side Lugs
We warranty all items for 30 days from date of purchase.

SKU: AI0577
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 7.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Cutler-Hammer
Part Number: HMCP400X5WS10
Shelf: J-6
Model: HMCP400X5WS10
MPN: HMCP400X5WS10
Type: Motor Starter
