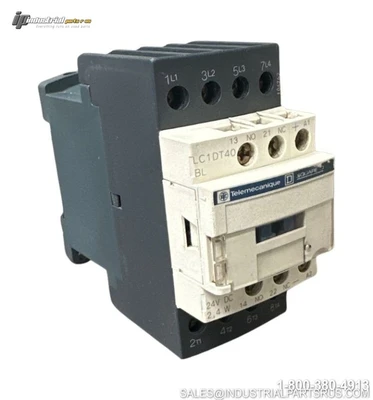

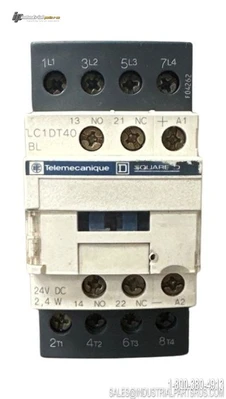

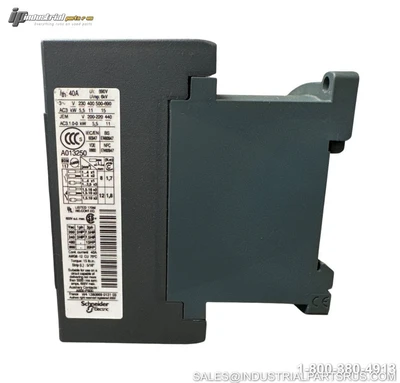

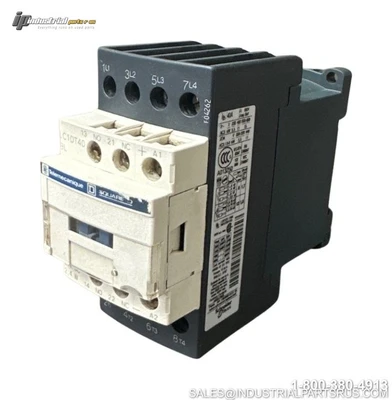

USED TELEMECANIQUE LC1DT40BL

The Telemecanique LC1DT40BL is a 4-pole non-reversing contactor from the TeSys D series, featuring a low consumption 24VDC coil and 40A resistive load rating. This contactor is designed for industrial motor control applications and includes built-in auxiliary contacts for enhanced switching capability. The unit offers both panel mounting and DIN rail mounting options for installation flexibility.
Specification
Value
Brand
Telemecanique
Model/Part Number
LC1DT40BL
Series
TeSys D
Sub-range
TeSys Deca
Poles
4-Pole
Contact Configuration
4NO
Coil Voltage
24VDC
Coil Type
Low Consumption
Coil Power
<2.4W
Coil Voltage Range
19.2-30VDC
Current Rating AC-1
40A
Rated Operating Voltage
690V AC/DC
Maximum Voltage
440V
Rated Impulse Voltage
6kV
Auxiliary Contacts
1NO + 1NC
Connection Type
Screw Terminals
Mounting Type
DIN Rail or Panel Mount
Dimensions (H x W x D)
91 x 45 x 107mm
Degree of Protection
IP20
Mechanical Durability
30 Million Cycles
Application
Motor Control, Resistive Loads
We warranty all items for 30 days from date of purchase.

SKU: AI0612
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail
Current Rating: 40A
Manufacturer: Telemecanique
Part Number: LC1DT40BL
Series: TeSys D
Shelf: K-46 TUB 1
Model: LC1DT40BL
Coil Voltage: 24V DC
MPN: LC1DT40BL
Type: Contactor
