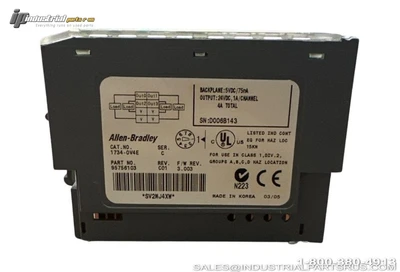

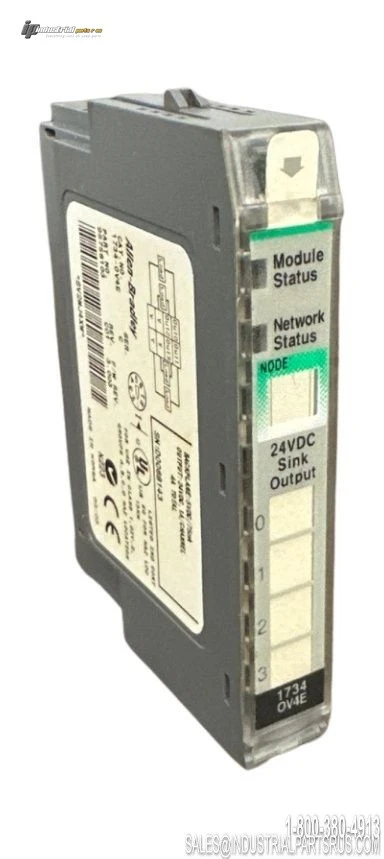

USED ALLEN-BRADLEY 1734-OV4E

The Allen-Bradley 1734-OV4E is a 4-channel digital DC sinking output module designed for use with POINT I/O systems. This electronically protected module operates at 24V DC and provides reliable control of DC-powered devices including actuators, solenoids, and relays with NPN sink output configuration.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
1734-OV4E
Platform
POINT I/O
Number of Outputs
4
Output Type
Digital DC Sinking
Output Voltage Range
10-28.8V DC
Output Voltage Nominal
24V DC
Output Current Max Per Channel
1.0A
Output Current Max Per Module
3.0A
Off-State Leakage Max
0.5mA
Signal Delay Max
0.1ms
POINTBus Current
75mA @ 5V DC
Power Dissipation Max
1.2W @ 28.8V DC
Thermal Dissipation Max
4.1 BTU/hr @ 28.8V DC
Operating Temperature
-20 to +55°C (-4 to +131°F)
Mounting Type
DIN Rail
Dimensions
2.21 x 0.47 x 2.97 in (56 x 12 x 75.5 mm)
Weight
1.17 oz (33g)
Enclosure Type
Open Style
Electronic Protection
Yes
ESD Immunity
6kV contact, 8kV air discharge
Compatible Terminal Bases
1734-TB, 1734-TBS
We warranty all items for 30 days from date of purchase.

SKU: AI0584
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Output Type: Digital DC Sinking
Full Load Amps: 75mA @ 5V DC
Manufacturer: Allen-Bradley
Enclosure Type: Open Style
Part Number: 1734-OV4E
Controller Platform: POINT I/O
Shelf: K-41
Model: 1734-OV4E
MPN: 1734-OV4E
Type: I/O Module
