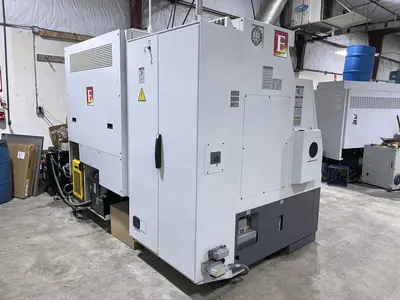

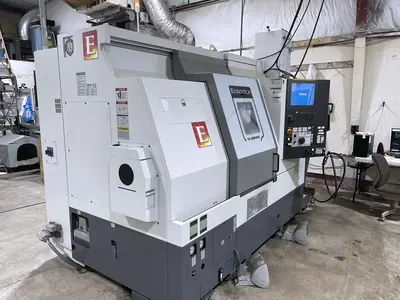

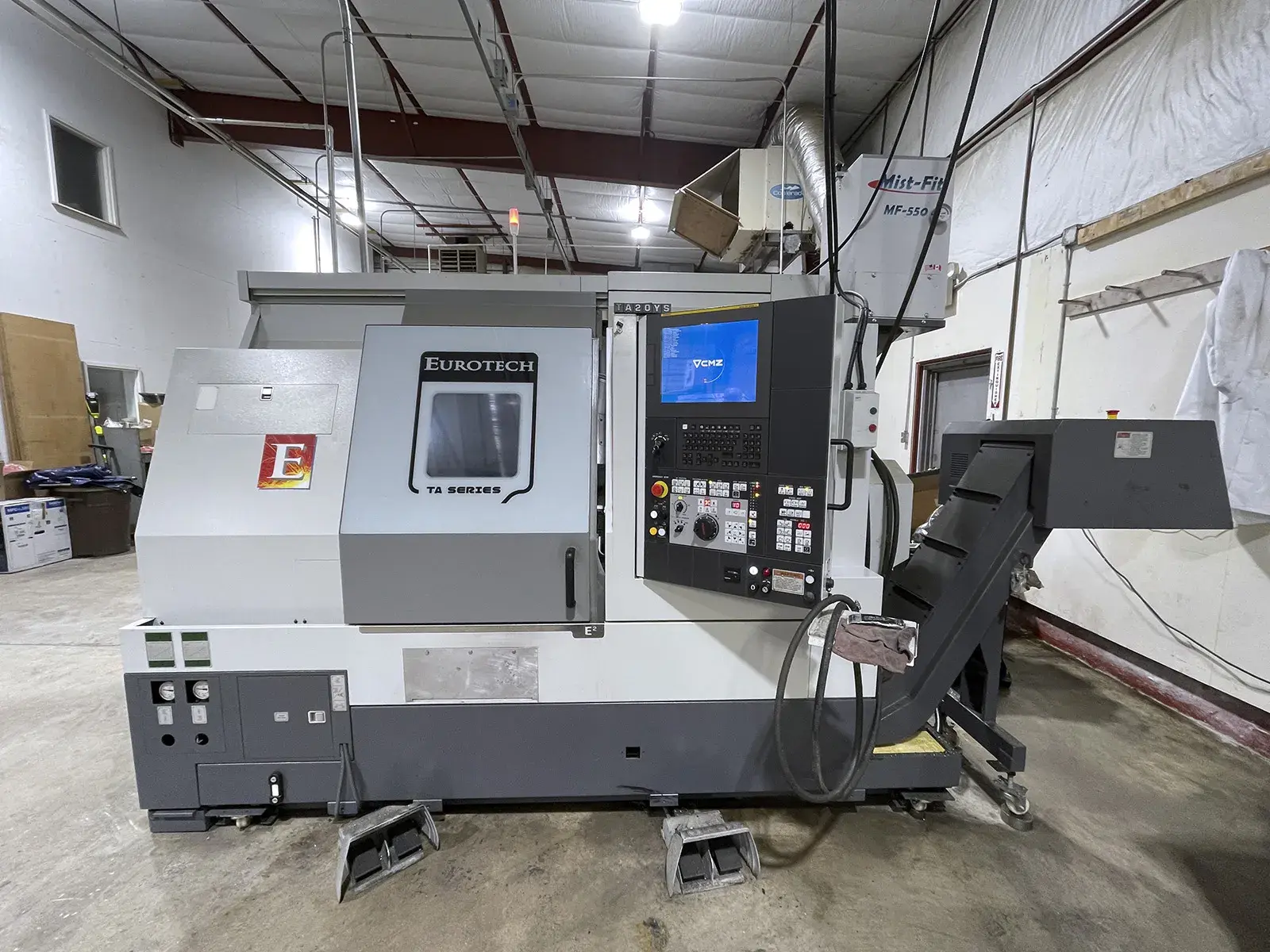

USED 2021 EUROTECH TA-20-YS

Low Hours! Under Power for Inspection! Tool Holders Included!

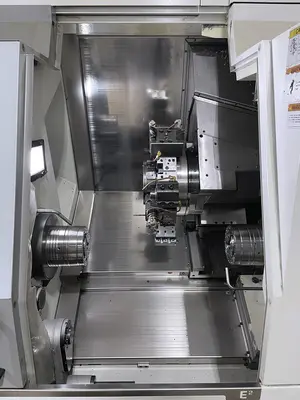

The Eurotech TA-20-YS CNC Lathe (2021) with Fanuc 32i-Model B Control is a high-performance multi-axis turning center designed for precision machining of complex parts. Its Y-axis and sub-spindle enable done-in-one production, combining turning, milling, drilling, and tapping in a single setup. Ideal for machining exotic materials like Inconel and Monel for aerospace, medical, defense, and energy industries.

Chuck Size: 8″
Bar Capacity: 2.6″
Swing over Bed: 29.92″
Swing Over Slides: 23.62″
Turning Diameter: 18.11″
DISTANCE BETWEEN CENTERS: 25.55″
X-Axis Travel: 12.2″
Z-Axis Travel: 25.2″
Y-Axis Travel: -1.97″ / +2.76″
B-Axis Travel: 25.2″
Feedrates (X,Z,B): 1181 IPM
Spindle Speed: 4,000 RPM

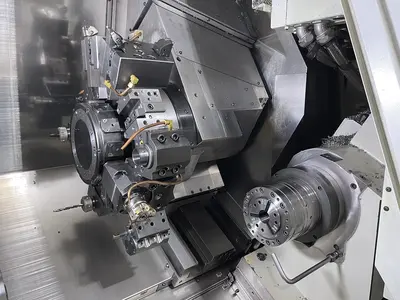

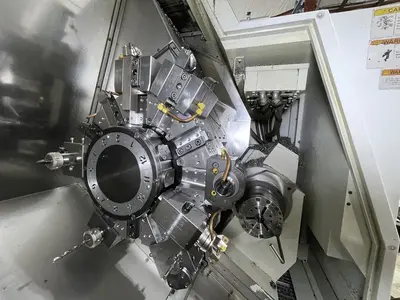

Turret: 15 Position
Spindle Speed:: 4,500 RPM
Bearing Diameter (Inside/Outside): 3.94″ / 5.9″
Spindle Nose: ASA 6″ A2
Spindle Inside Diameter: 2.4″
Bar Diameter: 2.4″
Chuck Diameter: 6.89″
Chuck bore: 2.2″
Number of Tools: 12
Tool Speed: 12,000 RPM

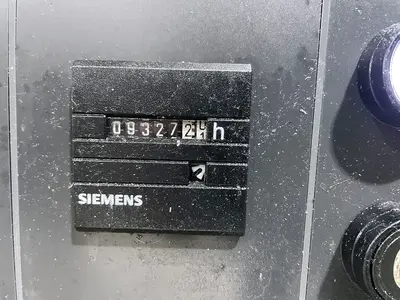

Only 2944 Cutting Hours

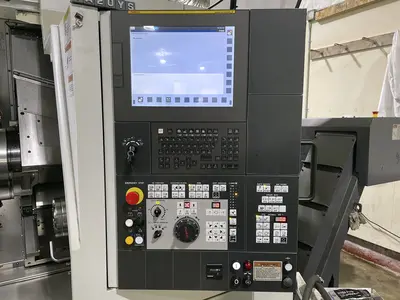

Fanuc 32iMB CNC Control

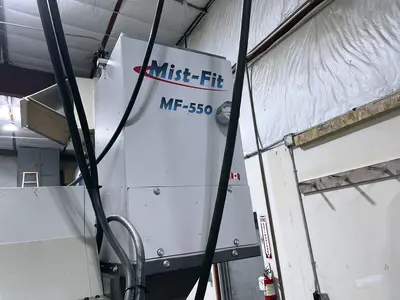

Mist-Fit MF550

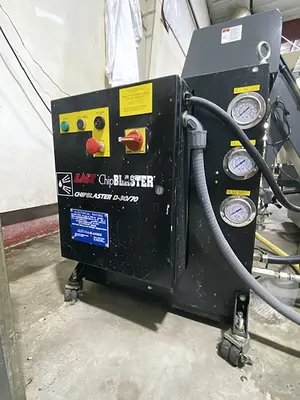

LNS Chip Blaster

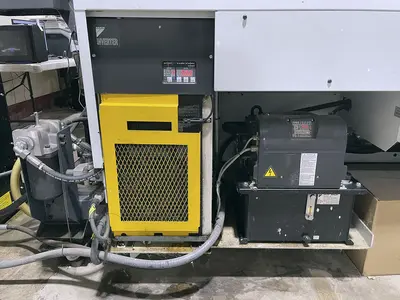

High Pressure Coolant Pump

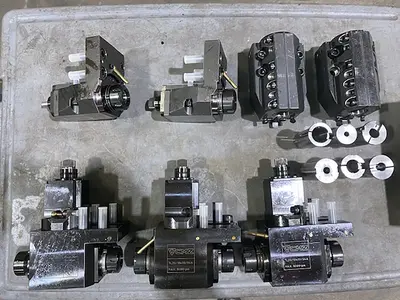

(6) Live Tool Blocks
(6) ID Tool Blocks
(2) OD Tool Blocks

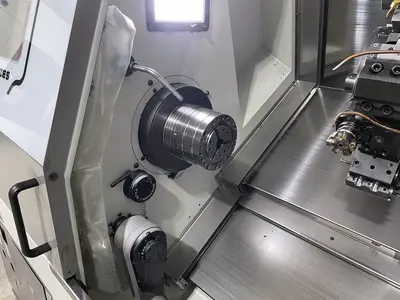

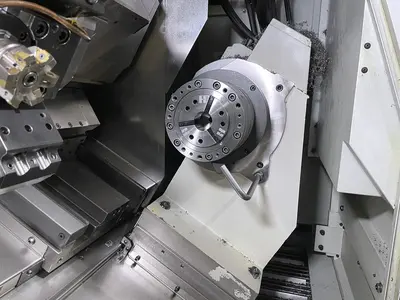

Sub Spindle
Tool Pre-Setter
Parts Catcher + Conveyor
Y Axis + Live Tooling
Coolant Tank

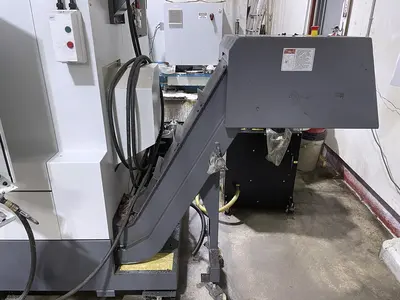

Chip Conveyor

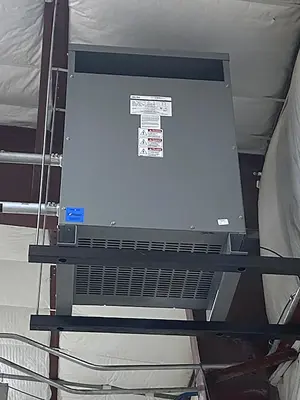

Transformer
Foot Controls
*Collets Not Included*
