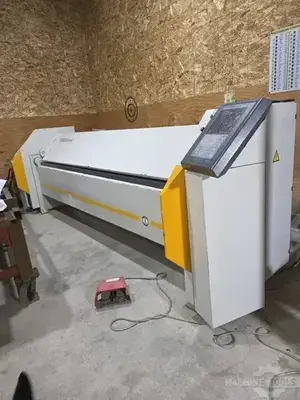

USED 2011 RAS TURBOBEND 61.31

CNC Folding Machine

Request a Quote
Add to Cart
Max Thickness: 16 Gauge
Overall Length: 10'

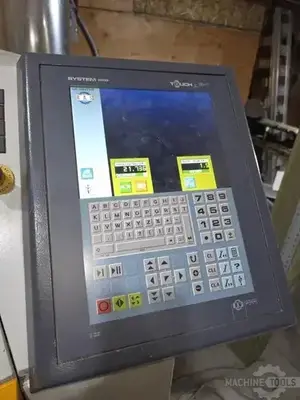

Control: CNC (System 6000)
Folding Beam Adjustment: 0” – 0.217”
Maximum Length: 124”
Motor Drive Power Upper Beam: 1 HP/.75 kw
Back Gauge Depth: 0.236” – 39.4”
Motor Drive Power Folding Beam: 1.5 HP/1.1 kw
Folding Beam Speed: 180 degrees/sec
Back Gauge Speed: (0.4” to 39.3”) 1.9 sec
Back Gauge Accuracy: .004”
Eccentric Drive Clamping System: Extra Foot Pedal (Table Side)
Foot Pedal Emergency Switches (2): Movable Foot Pedal on Rail
Program Controlled Sheet Thickness Adjustment: Side Stop / Squaring Arm
Standard Backgauge (J-Shape): Tooling Included
