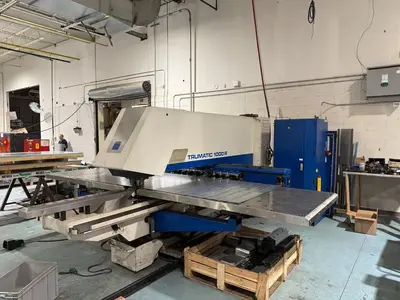

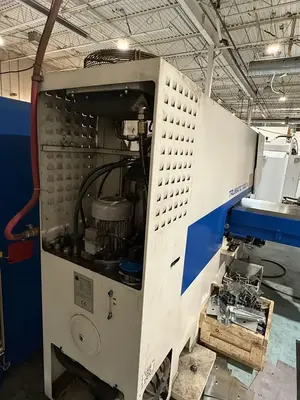

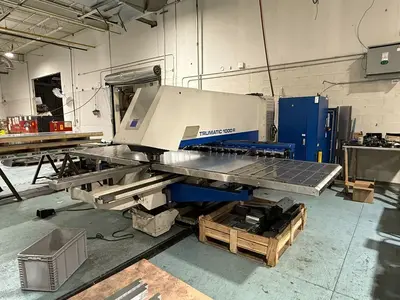

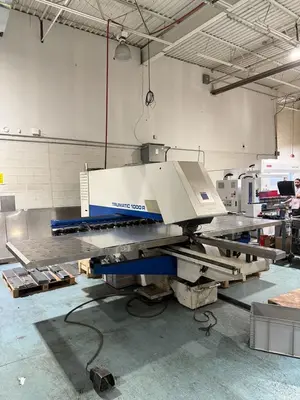

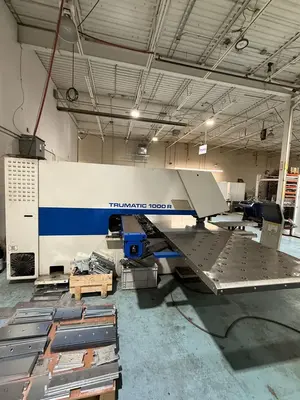

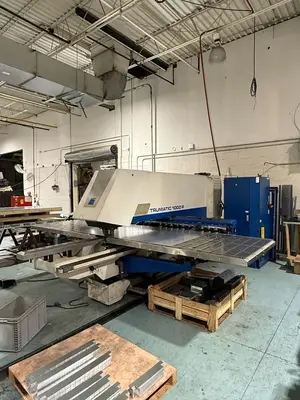

USED 2006 TRUMPF TRUMATIC 1000R

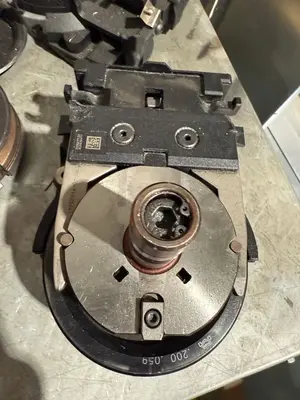

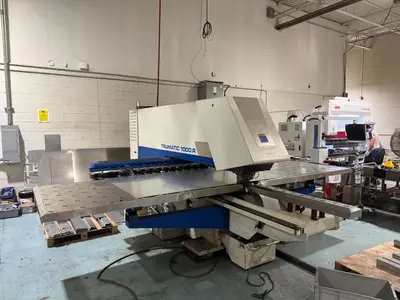

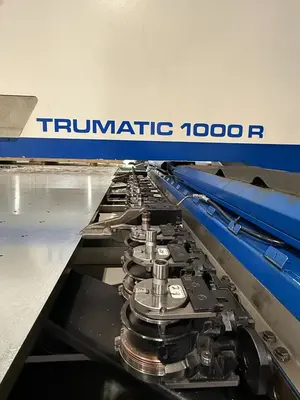

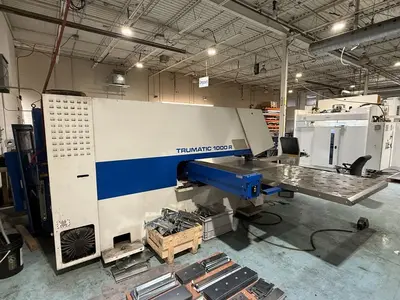

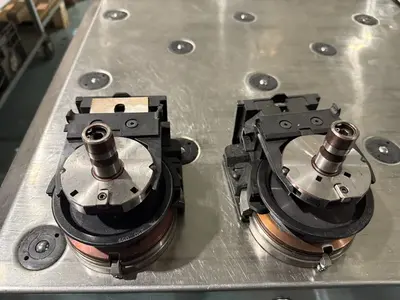

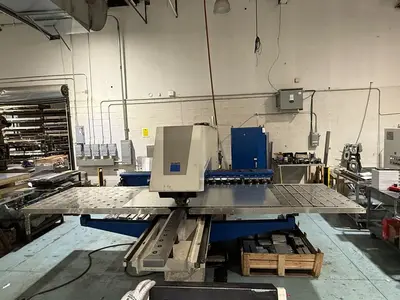

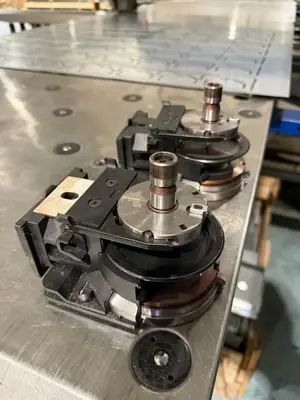

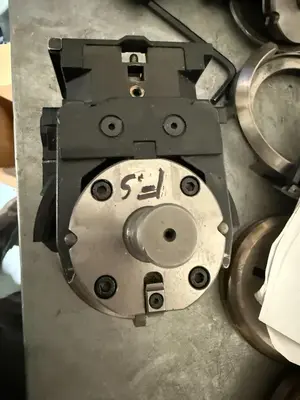

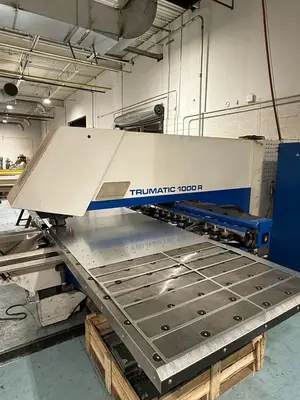

The 2006 Trumpf Trumatic 1000R turret punch is an 18 ton CNC punch and contouring machine, often equipped with a Bosch PNC-P CNC control. It features a working range of 2070 mm in the X-axis and 1294 mm in the Y-axis, which extends to 2500 mm x 1294 mm with repositioning. This machine can handle a maximum sheet thickness of 6 mm and workpieces up to 150 kg. It supports a maximum punch diameter of 76 mm. Key performance specifications include a simultaneous axis speed (X & Y) of 96977 mm/min (or 3818 IPM), a maximum stroke rate for punching of 600 RPM, and a C-axis rotation speed of 180 RPM, allowing 360 degrees of rotation for all tools. It typically utilizes a 15-tool linear magazine with two work clamps, programmable tool rotation, and a multi-tool option, all built on a ball table design.
