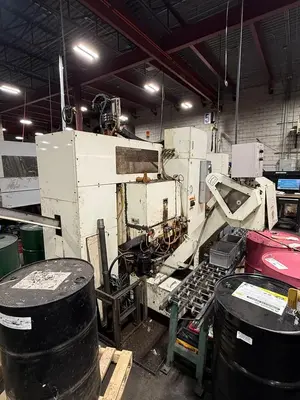

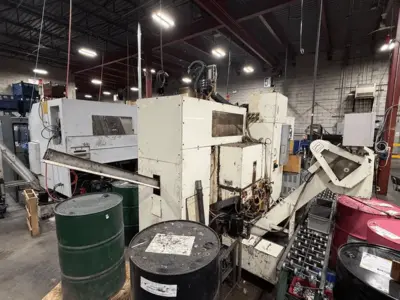

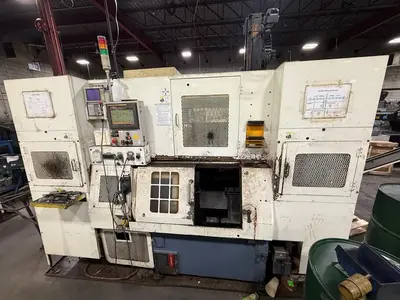

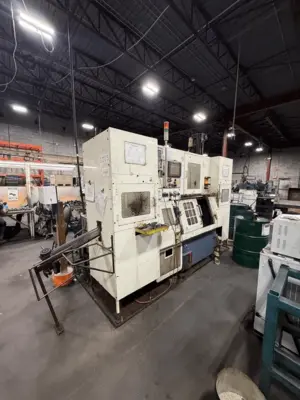

USED FUJI FS-4

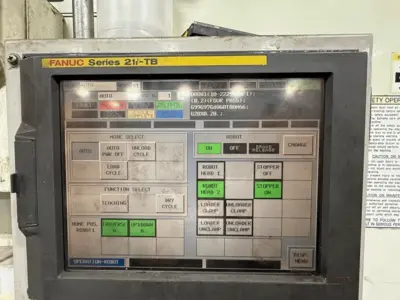

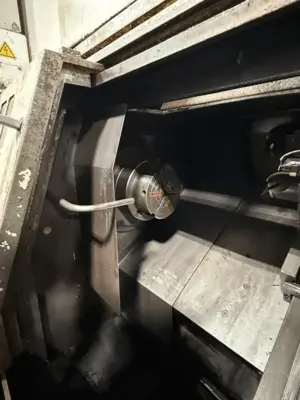

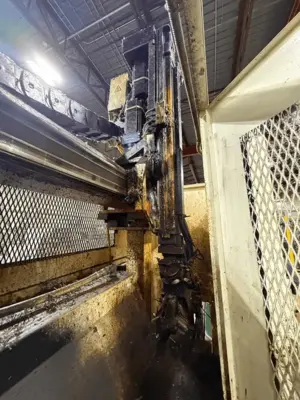

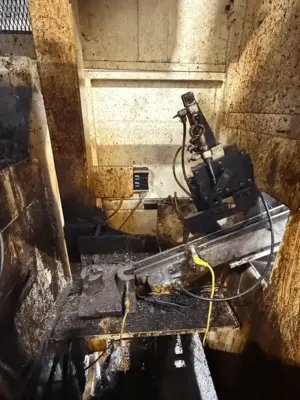

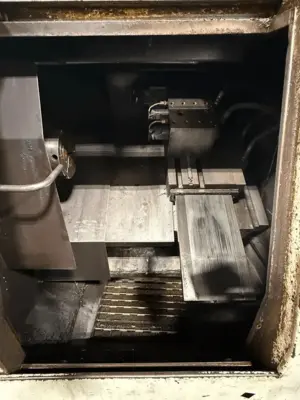

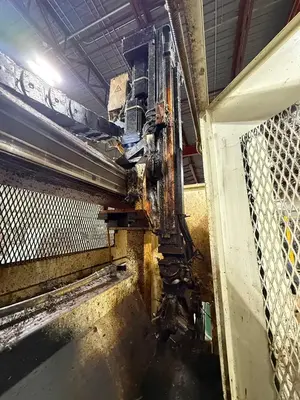

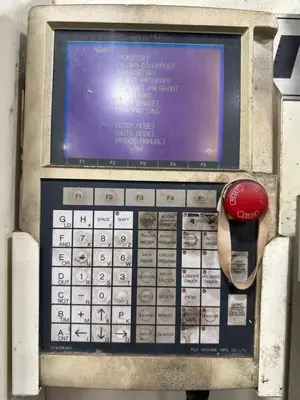

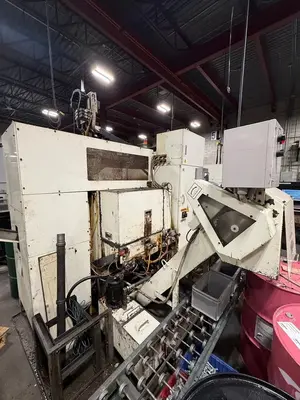

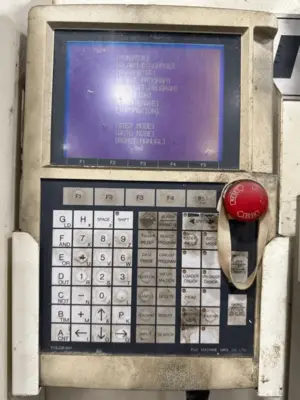

The Fuji FS4/FS4-3100 CNC lathe is a compact, high-productivity NC single-purpose machine designed for mass production of ring-shaped workpieces. This gang-style CNC lathe features a high-power spindle motor, gang-tool tooling to reduce non-cutting time and increase rigidity, and a high-speed L35-08H robot loader which allows for non-stop loading and unloading in approximately 2.5 seconds. Key specifications include a recommended work size of Ø100 x 60 mm (Ø4 x 2.3 inch), a maximum spindle speed of 4000 RPM, and a spindle motor output of 7.5/11 kW (10/15 HP). It has an 8-inch chuck size, A2-6 spindle nose, and a spindle bore of Ø56 mm (2.2 inch). The machine utilizes a FANUC 21I-TB CNC control. Slide strokes are 300 mm (11.81 inches) for the X-axis and 270 mm (10.63 inches) for the Z-axis. The total machine size is approximately 1100 mm x 1675 mm (3'7" x 5'6") and the machine weight is around 2500 kg (5500 lbs).
