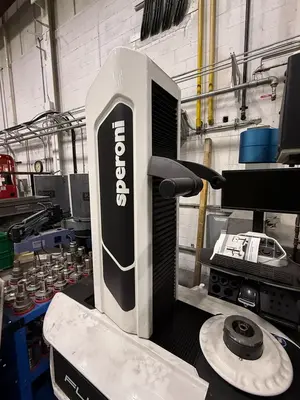

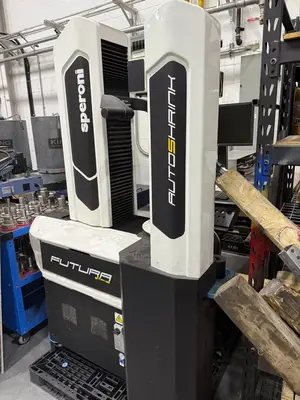

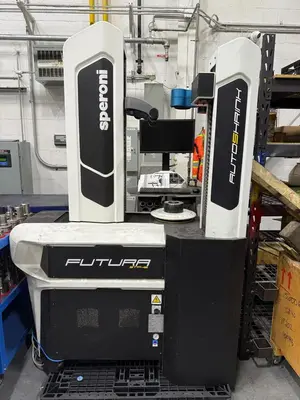

USED 2020 SPERONI FUTURA STP 46 A3

THE 2020 SPERONI FUTURA STP 46 A3 IS A COORDINATE MEASURING MACHINE (CMM) TYPE TOOL PRESETTER AND MEASURING UNIT. IT FEATURES AN AGED PEARLITIC CAST-IRON BODY FOR ENHANCED THERMAL AND MECHANICAL STABILITY. KEY SPECIFICATIONS INCLUDE A MAXIMUM TOOL DIAMETER OF 400 MM AND A MAXIMUM TOOL HEIGHT (LENGTH) OF 600 MM. THE MACHINE OPERATES WITH X AND Z AXES, REQUIRING 400V, 50/60HZ, 3PH POWER AND A PNEUMATIC REQUIREMENT OF 0.5–0.7 MPA. PRECISION METRICS ARE HIGH, BOASTING A REPEATABILITY OF 1 MICRON OR BETTER, SPINDLE CONCENTRICITY WITHIN 1 MICRON, AND A TOTAL INDICATED RUNOUT (T.I.R.) AT 300 MM OF LESS THAN 5 MICRONS. THE UNIT INCORPORATES AN INTEGRAL ISO 50 TYPE SPINDLE, GLASS LINEAR SCALES FOR MEASUREMENT ACCURACY, AND FRONT-LIGHT EDGE INSPECTION ILLUMINATION. CONTROL FEATURES INCLUDE MANUAL FINE-ADJUSTMENT KNOBS FOR X AND Z MOVEMENT, AUTOMATIC MECHANICAL TOOLHOLDER CLAMPING, AND INTEGRATED TOOL MANAGEMENT WITH DATA STORAGE AND CNC TRANSFER CAPABILITY. IT SUPPORTS NETWORK CONNECTIVITY AND POST-PROCESSOR DATA OUTPUT, POSITIONING IT FOR INDUSTRY 4.0 READINESS. THE UNIT HAS A WEIGHT OF 570 KG.
