USED STARVIEW PH6S

Used Starview Model ERB/PH6-1418 (Pharma) Rotary Blister Sealer. Maximum 14" x 18" seal area. Has digital sealing pressue upgrade for Medical applications. 1/60/220V, 30 amp unit with plc controls. Working temperatures: Hot station (plastic to plastic) 250 to 260 deg C, (blister to card) 170 to 180 deg C. Cold station temperatures: 45 to 50 deg F. Max cycle speeds 10 to 12 CPM. Width 83" x depth 84" x height 70". Working height: 37". Approximate weight is 1800 lbs. Mounted on casters. New in 2024

Used Equipment Facts About This Machine
Manufacturer Information

Manufacturer: Starview Packaging Machinery, Inc.

Model: ERB/PH6-1418 (Pharma)

Equipment Type: Rotary Blister Sealing Machine

Year: 2024

Application: Pharmaceutical / Medical Packaging

Starview Packaging Machinery manufactures high-quality blister packaging equipment used in medical device packaging, pharmaceutical packaging, retail blister packaging, and contract packaging operations.

Description
This used Starview Model ERB/PH6-1418 (Pharma) Rotary Blister Sealer, manufactured in 2024, is designed for medical and pharmaceutical blister packaging applications. The machine offers a maximum sealing area of 14" x 18" and features a digital sealing pressure upgrade, ensuring precise pressure control required for regulated medical packaging processes.

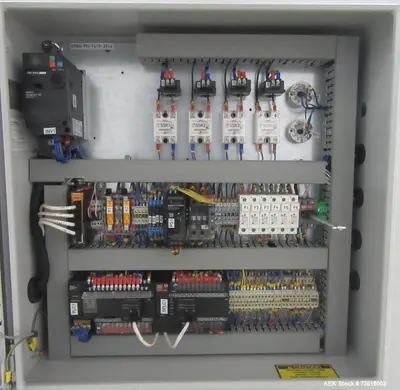

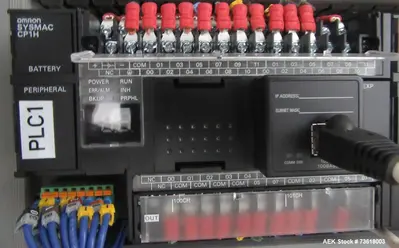

The system utilizes PLC controls and operates on 220V single-phase power, providing reliable and consistent sealing performance. The machine includes both hot and cold sealing stations, enabling efficient packaging of plastic-to-plastic blister packs or blister-to-card packaging.

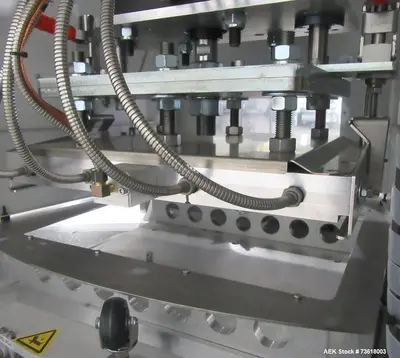

The hot station operates between 250°C and 260°C for plastic-to-plastic sealing and 170°C to 180°C for blister-to-card applications, while the cold station operates between 45°F and 50°F for proper material cooling and seal integrity.
The machine is capable of cycle speeds between 10 and 12 cycles per minute, depending on packaging materials and configuration. Mounted on casters for easy mobility, this compact rotary blister sealer is well suited for medical device manufacturers, pharmaceutical packaging operations, and contract packaging companies.

Specifications
General Machine Data

Manufacturer: Starview Packaging Machinery

Model: ERB/PH6-1418 (Pharma)

Year: 2024

Machine Type: Rotary Blister Sealer

Maximum Seal Area: 14" x 18"

Electrical

Voltage: 220 Volt

Phase: Single Phase

Frequency: 60 Hz

Current: 30 Amps

Operating Temperatures

Hot Station (Plastic to Plastic): 250 – 260 °C

Hot Station (Blister to Card): 170 – 180 °C

Cold Station: 45 – 50 °F

Production Capacity

Maximum Cycle Speed: 10 – 12 cycles per minute (CPM)

Dimensions

Width: 83"

Depth: 84"

Height: 70"

Working Height: 37"

Additional Features

Digital sealing pressure control (medical upgrade)

PLC control system

Mounted on casters for mobility

Weight

Approximate Weight: 1,800 lbs

Applications

Medical device blister packaging

Pharmaceutical blister packaging

Contract packaging operations

Retail blister packaging

Consumer product blister packaging

Electronics packaging

Cosmetic blister packaging

Healthcare packaging operations

Pharmaceutical packaging lines

Small to medium production blister sealing

What Products Would This Be Used For

Medical devices

Surgical tools

Pharmaceutical blister packs

Dental products

Diagnostic kits

Consumer electronics accessories

Cosmetic products

Hardware and small tools

Retail packaged accessories

Nutraceutical blister packs
